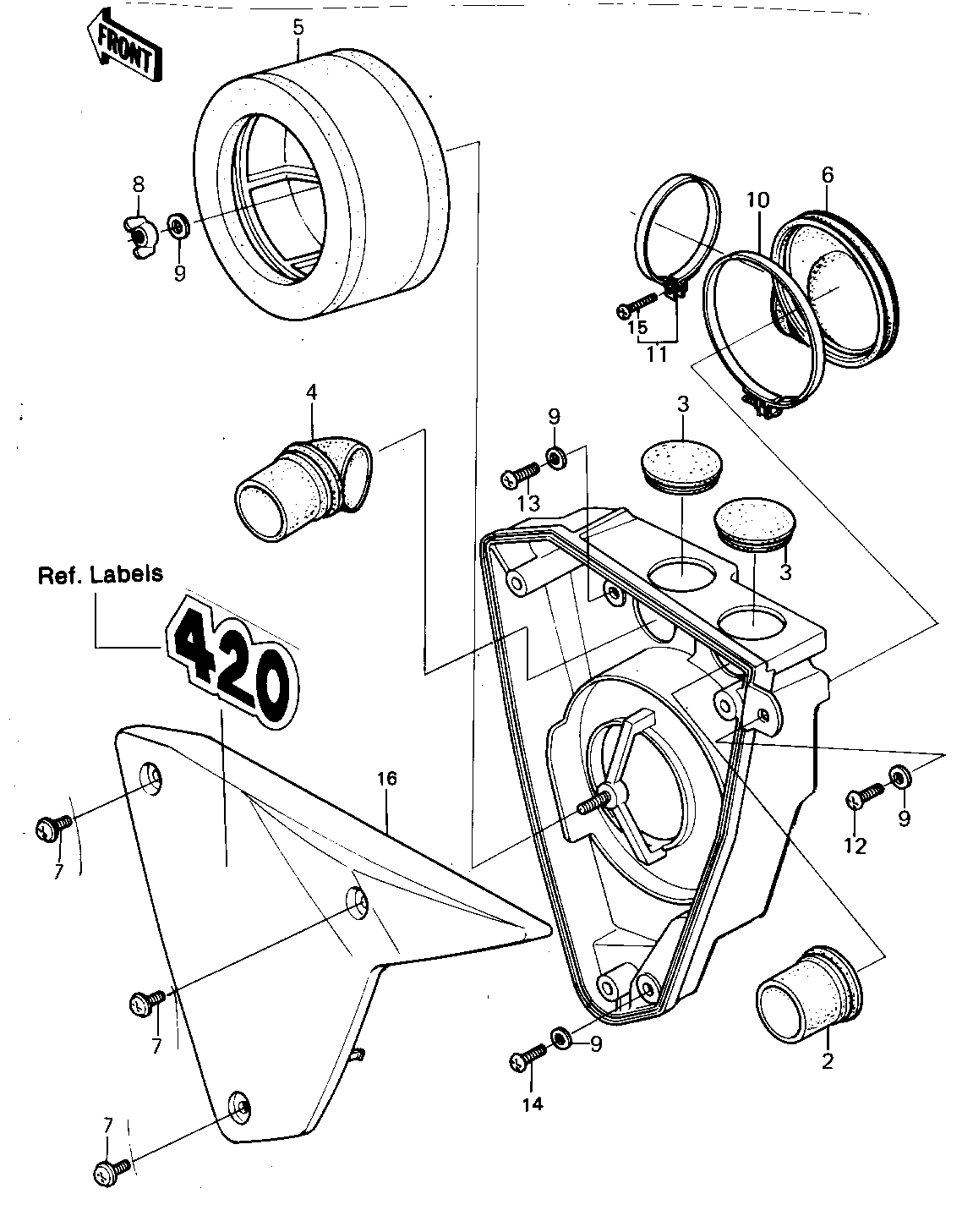

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CASE AIR FILTER | 1 | 11011-1082 | 1 | ||
| CAP,AIR CLEANER | 2 | 11012-1109 | 1 | ||
| CAP,AIR CLEANER | 3 | 11012-1111 | 2 | ||
| CAP,AIR CLEANER | 4 | 11012-1123 | 1 | ||
| ELEMENT,AIR CLNR | 5 | 11013-1036 | 1 | ||
| DUCT,AIR CLEANER | 6 | 14073-1038 | 1 | ||
| SCREW,6X14 | 7 | 92009-1287 | 3 | ||
| NUT,AIR CLEANER CAP | 8 | 92016-062 | 1 | ||
| WASHER 6.5X20X1.6T | 9 | 92022-125 | 4 | ||
| CLAMP,AIR CLANER DUCT | 10 | 92037-1186 | 1 | ||
| CLAMP-AIR CLEANER | 11 | 92037-068 | 1 | ||
| SCREW PAN HEAD 6X12 | 12 | 220B0612 | 1 | ||
| SCREW PAN HEAD 6X18 | 13 | 220B0618 | 1 | ||
| SCREW PAN HEAD 6X22 | 14 | 220B0622 | 1 | ||
| SCREW PAN HEAD 6X35 | 15 | 220B0635 | 1 | ||
| COVER,SIDE,LH,L.GREEN | 16 | 36001-1087-6W | 1 |
| CASE AIR FILTER | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP,AIR CLEANER | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP,AIR CLEANER | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CAP,AIR CLEANER | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ELEMENT,AIR CLNR | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DUCT,AIR CLEANER | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW,6X14 | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| NUT,AIR CLEANER CAP | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER 6.5X20X1.6T | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| CLAMP,AIR CLANER DUCT | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP-AIR CLEANER | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 6X12 | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 6X18 | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 6X22 | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 6X35 | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,SIDE,LH,L.GREEN | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
