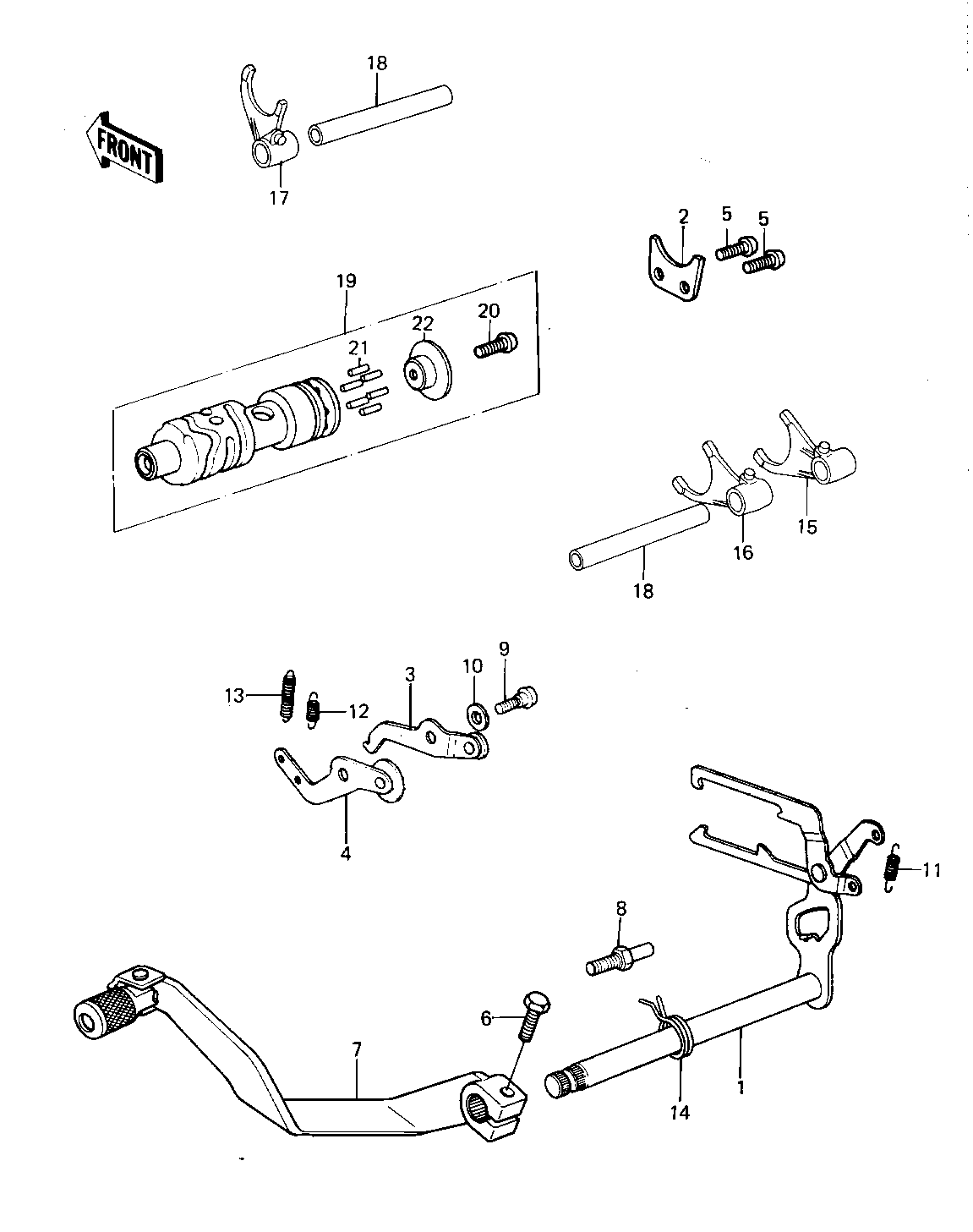

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| LEVER ASSY,GEAR CHANG | 1 | 13161-1012 | 1 | ||
| PLATE,CHANGE DRUM | 2 | 13169-1267 | 1 | ||
| LEVER ASSY,GEAR CHANG | 3 | 13236-007 | 1 | ||
| LEVER,GEAR SET | 4 | 13236-1013 | 1 | ||
| SCREW PAN HEAD 6X14 | 5 | 220B0614 | 2 | ||
| BOLT-UPSET,6X20 | 6 | 112G0620 | 1 | ||
| PEDAL ASSY,GEAR CHANG | 7 | 13242-1025 | 1 | ||
| BOLT,RETURN SPRING | 8 | 92001-1401 | 1 | ||
| SCREW-PAN HEAD | 9 | 92011-023 | 1 | ||
| WASHER,PLAIN | 10 | 92022-1053 | 1 | ||
| SPRING-CHANGE LEVER | 11 | 92081-076 | 1 | ||
| SPRING-COIL | 12 | 92081-077 | 1 | ||
| SPRING | 13 | 92081-119 | 1 | ||
| SPRING,CHG PEDL RTRN | 14 | 92083-028 | 1 | ||
| FORK,SHIFT,LOW | 15 | 13140-1023 | 1 | ||
| FORK,SHIFT,2ND&3RD | 16 | 13140-1024 | 1 | ||
| FORK,SHIFT,4TH&TOP | 17 | 13140-1025 | 1 | ||
| ROD,SHIFT 93.7M/M | 18 | 49047-1003 | 2 | ||
| DRUM ASSY,CHANGE | 19 | 13239-1023 | 1 | ||
| SCREW PAN HEAD 6X14 | 20 | 220B0614 | 1 | ||
| PIN,CHANGE DRUM | 21 | 92043-1060 | 6 | ||
| HOLDER,CHANGE DRUM | 22 | 13142-014 | 1 |
