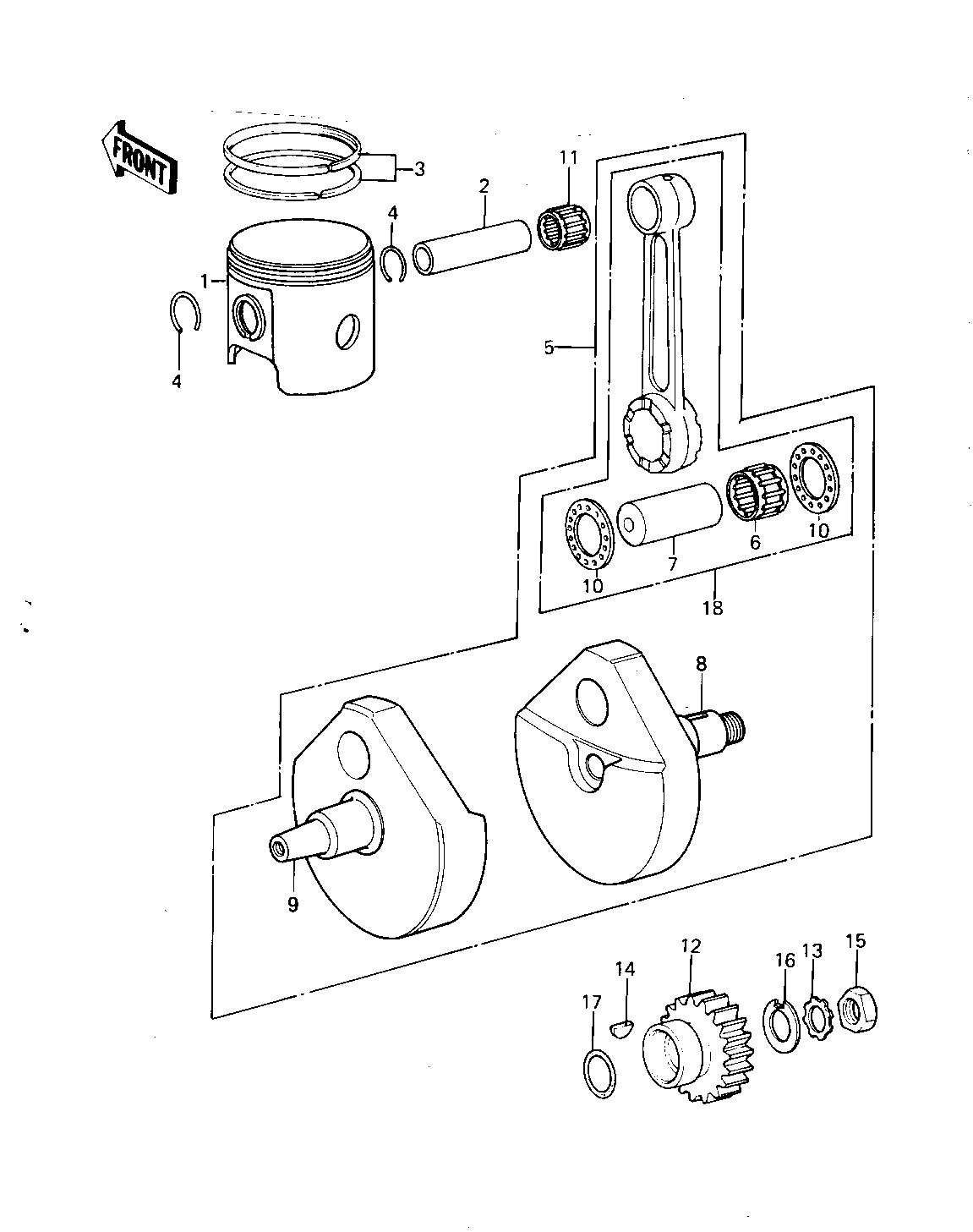

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| PISTON-ENGINE | 1 | 13001-1075 | 1 | ||
| PIN-PISTON | 2 | 13002-031 | 1 | ||
| RING SET,PISTON | 3 | 13008-5030 | 1 | ||
| CIRCLIP PISTON PIN | 4 | 92036-008 | 2 | ||
| CRANKSHAFT ASSY | 5 | 13031-1023 | 1 | ||
| BEARING N,KT263322EGS | 6 | 13034-1012 | 1 | ||
| PIN,CRANK,12X26X62 | 7 | 13035-1003 | 1 | ||
| CRANKSHAFT,R.H. | 8 | 13037-1035 | 1 | ||
| CRANKSHAFT,L.H. | 9 | 13037-1037 | 1 | ||
| WASHER,CONROD SIDE | 10 | 92026-093 | 2 | ||
| BEARING-SMALL END,KTV | 11 | 13033-1055 | 1 | ||
| GEAR,PRIMARY,26T | 12 | 13097-1019 | 1 | ||
| WASHER,LOCK,18M/M | 13 | 464H1800 | 1 | ||
| WOODRUFF KEY | 14 | 510A5100 | 1 | ||
| NUT 18MM | 15 | 92015-019 | 1 | ||
| WASHER LOCK 18MM | 16 | 92024-015 | 1 | ||
| "0" RING,30MM | 17 | 92055-1047 | 1 | ||
| CONNECTING ROD ASSY | 18 | 13044-5011 | 1 |
