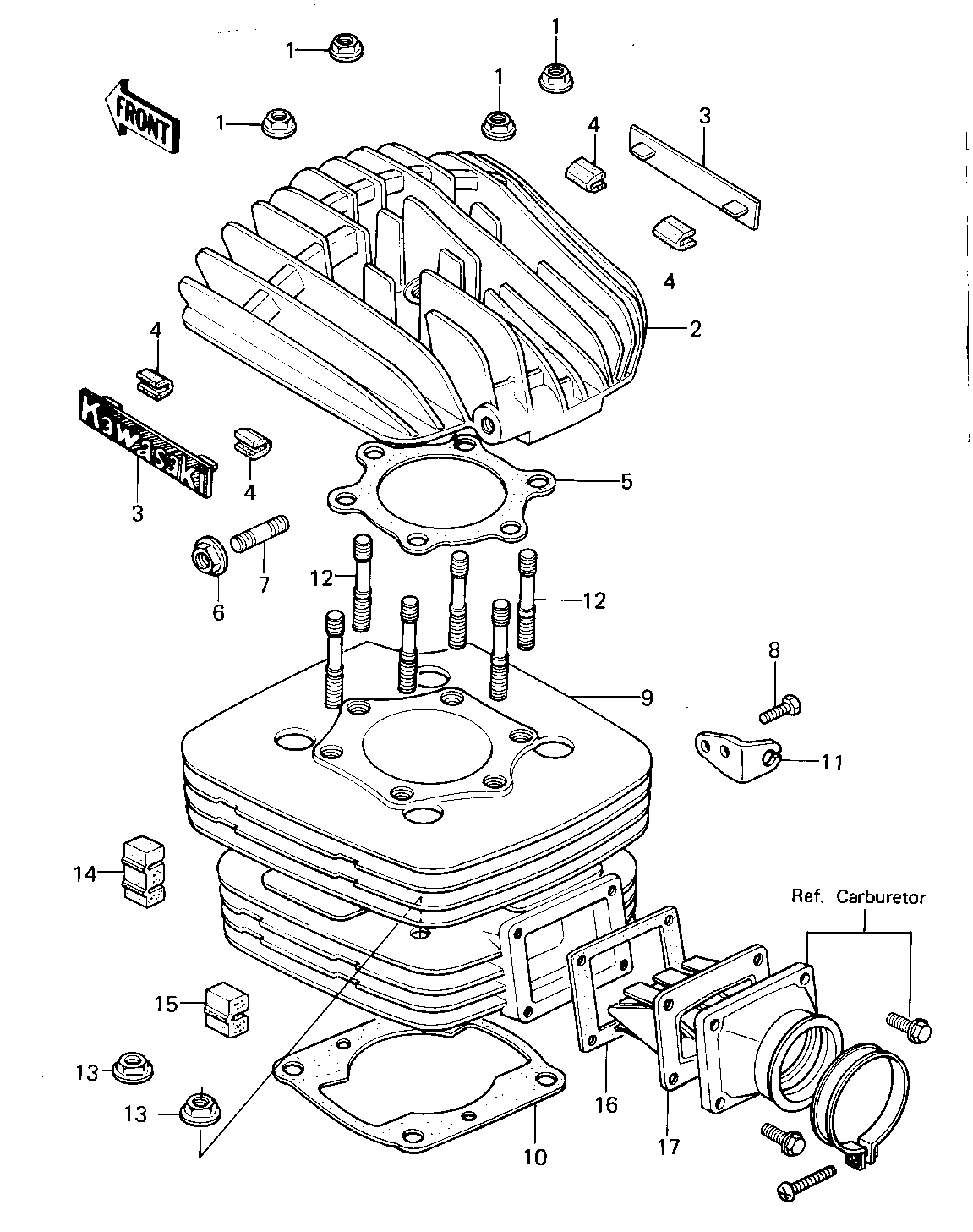

1981 KDX420 - CYLINDER HEAD/CYLINDER/REED VALVE
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| NUT,8M/M | 1 | 92015-1014 | 6 | ||
| HEAD,CYLINDER,F.BLACK | 2 | 11001-1030 | 1 | ||
| MARK,CYLINDER HEAD | 3 | 56018-1101 | 2 | ||
| DAMPER,CYLINDER HEAD | 4 | 92075-1166 | 4 | ||
| GASKET,HEAD,CYLINDER | 5 | 11004-1015 | 1 | ||
| NUT,10MM | 6 | 92015-1415 | 1 | ||
| STUD,10X18 | 7 | 175G1018 | 1 | ||
| BOLT-UPSET | 8 | 112G0618 | 1 | ||
| CYLINDER,ELECTRO-FUSE | 9 | 11005-1068 | 1 | ||
| GASKET,CYLINDER BASE | 10 | 11009-1130 | 1 | ||
| HOLDER | 11 | 13091-1119 | 1 | ||
| STUD,CYLINDER | 12 | 92004-1022 | 6 | ||
| NUT,10MM | 13 | 92015-1415 | 4 | ||
| DAMPER,CYLINDER | 14 | 92075-1160 | 6 | ||
| DAMPER,CYLINDER | 15 | 92075-1161 | 2 | ||
| GASKET,REED VALVE | 16 | 11009-1018 | 1 | ||
| VALVE ASSY,REED | 17 | 12021-1007 | 1 |
| NUT,8M/M | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| HEAD,CYLINDER,F.BLACK | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,CYLINDER HEAD | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER,CYLINDER HEAD | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| GASKET,HEAD,CYLINDER | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,10MM | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| STUD,10X18 | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CYLINDER,ELECTRO-FUSE | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,CYLINDER BASE | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOLDER | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| STUD,CYLINDER | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| NUT,10MM | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| DAMPER,CYLINDER | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| DAMPER,CYLINDER | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| GASKET,REED VALVE | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| VALVE ASSY,REED | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
