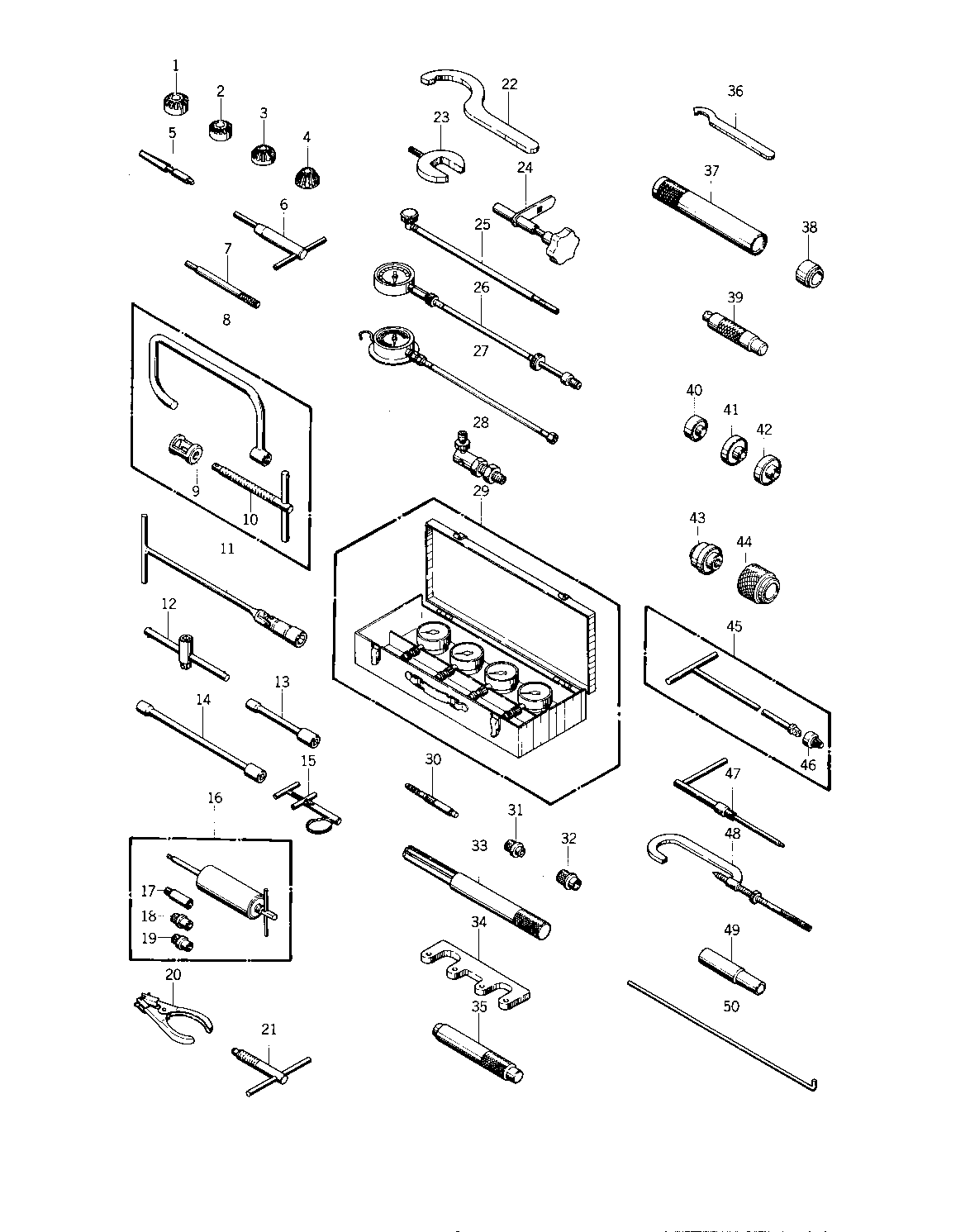

1976 KZ400-D3 - SPECIAL SERVICE TOOLS ('76 -'77 KZ
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| *** N.L.A.*** (Canada) | 1 | 57001-360 | 1 | ||
| *** N.L.A.*** (Canada) | 2 | 57001-361 | 1 | ||
| *** N.L.A.*** (Canada) | 3 | 57001-101 | 1 | ||
| *** N.L.A.*** (Canada) | 4 | 57001-102 | 1 | ||
| REAMER,VALVE GUIDE | 5 | 57001-162 | 1 | ||
| *** N.L.A.*** (Canada) | 6 | 57001-106 | 1 | ||
| ARBOR,VALVE GUIDE | 7 | 57001-163 | 1 | ||
| COMPRESSOR,VLV SPRING | 8 | 57001-241 | 1 | ||
| 57001-246 (Canada) | 9 | 57001-242 | 1 | ||
| BOLT,VALVE COMPRESER | 10 | 57001-244 | 1 | ||
| WRENCH,SPARK PLUG (Canada) | 11 | 57001-110 | 1 | ||
| *** N.L.A.*** (Canada) | 12 | 57001-370 | 1 | ||
| *** N.L.A.*** (Canada) | 13 | 57001-371 | 1 | 10M/M | |
| *** N.L.A.*** (Canada) | 14 | 57001-372 | 1 | 13M/M | |
| 57001-1094 (Canada) | 15 | 57001-921 | 1 | ||
| PULLER-PISTON PIN | 16 | 57001-910 | 1 | ||
| ADAPTER A,PIN PULLER (Canada) | 17 | 57001-912 | (1 | USE FOR KS125 H2 | |
| ADAPTER B, PIN PULLER | 18 | 57001-913 | 1 | ||
| ADAPTER C,PIN PULLER | 19 | 57001-914 | (1 | USE FOR Z1, F F11 | |
| PLIERS-PISTON RING | 20 | 57001-115 | 1 | ||
| 57001-1216 (Canada) | 21 | 57001-254 | 1 | ||
| HOLDER,DYNAMO ROTOR | 22 | 57001-255 | 1 | ||
| *** N.L.A.*** (Canada) | 23 | 57001-340 | 2 | ||
| *** N.L.A.*** (Canada) | 24 | 57001-350 | 1 | ||
| GAUGE,FUEL LEVEL | 25 | 57001-208 | 1 | ||
| *** N.L.A.*** (Canada) | 26 | 57001-123 | 1 | ||
| GAUGE,OIL PRESSURE | 27 | 57001-164 | 1 | ||
| *** N.L.A.*** (Canada) | 28 | 57001-400 | 1 | ||
| *** N.L.A.*** (Canada) | 29 | 57001-127 | 1 | ||
| ADAPTER,VACUUM GAUGE | 30 | 57001-401 | 2 | ||
| GUIDE,SHIFT OIL SEAL | 31 | 57001-264 | 1 | ||
| *** N.L.A.*** (Canada) | 32 | 57001-265 | 1 | ||
| *** N.L.A.*** (Canada) | 33 | 57001-380 | 1 | ||
| *** N.L.A.*** (Canada) | 34 | 57001-165 | 2 | ||
| *** N.L.A.*** (Canada) | 35 | 57001-285 | 1 | ||
| 57001-1100 (Canada) | 36 | 57001-134 | 1 | ||
| DRIVER,STEM BEARING | 37 | 57001-137 | 1 | ||
| *** N.L.A.*** (Canada) | 38 | 57001-294 | 1 | ||
| *** N.L.A.*** (Canada) | 39 | 57001-139 | 1 | ||
| 57001-1129 (Canada) | 40 | 57001-288 | 1 | #6302 | |
| 57001-1129 (Canada) | 41 | 57001-289 | 1 | #6205 | |
| 57001-1129 (Canada) | 42 | 57001-290 | 1 | #6303 | |
| 57001-1129 (Canada) | 43 | 57001-138 | 1 | ||
| DRIVER,FORK OIL SEAL | 44 | 57001-191 | 1 | ||
| 57001-1011 (Canada) | 45 | 57001-179 | 1 | ||
| 57001-1011 (Canada) | 46 | 57001-181 | 1 | ||
| 57001-351 (Canada) | 47 | 57001-167 | 1 | ||
| 57001-1243 (Canada) | 48 | 56019-040 | 1 | ||
| *** N.L.A.*** (Canada) | 49 | 56019-110 | 1 | ||
| *** N.L.A.*** (Canada) | 50 | 56019-111 | 1 |
