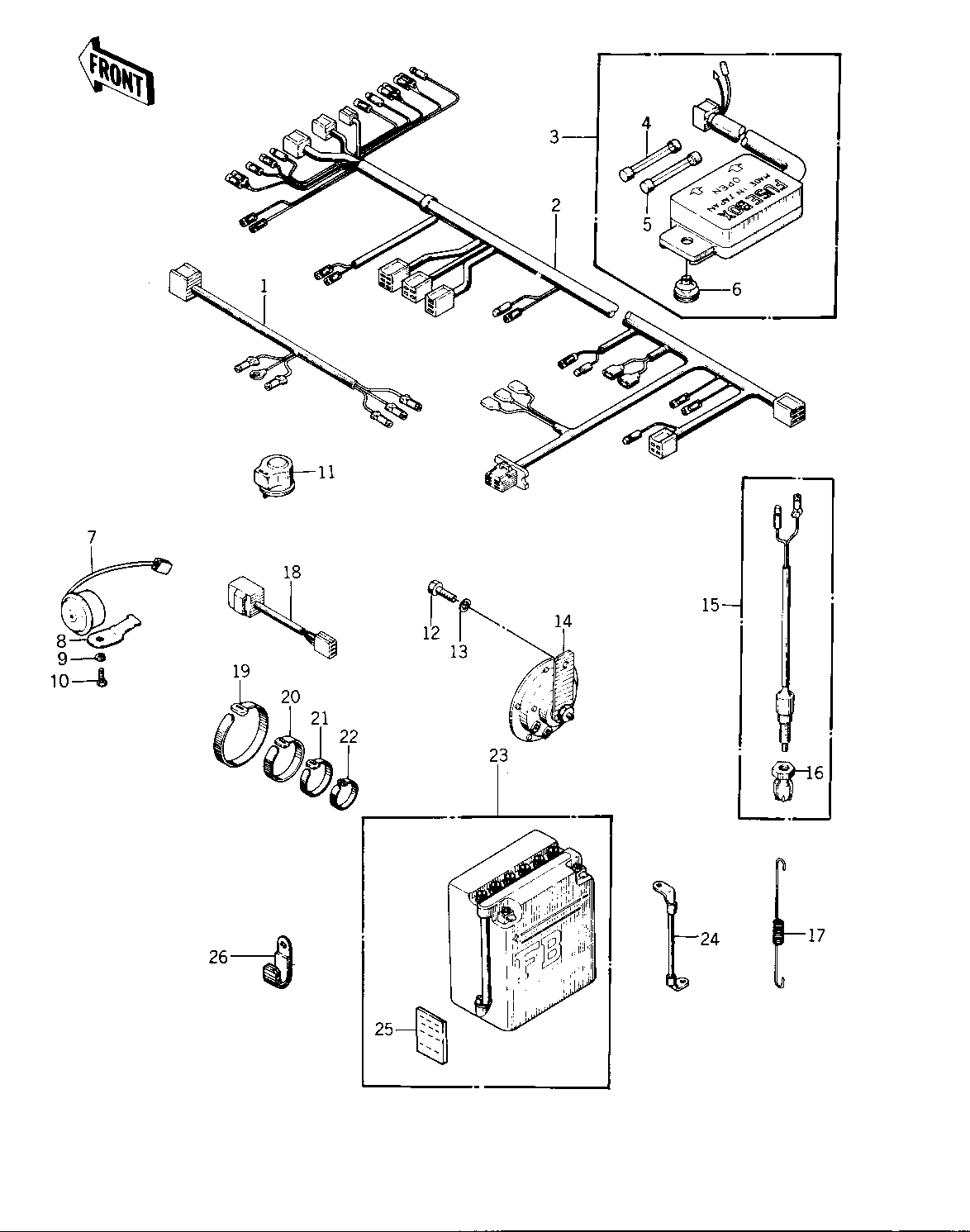

1976 KZ400-D3 - CHASSIS ELECTRICAL EQUIPMENT ('76 -'77
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| WIRING HARNESS REAR | 1 | 26002-049 | 1 | ||
| WIRING HARNESS,MAIN | 2 | 26001-136 | 1 | ||
| FUSE ASSY | 3 | 26004-035 | 1 | ||
| FUSE-20A | 4 | 26006-005 | 2 | 20A | |
| FUSE 10A | 5 | 26006-003 | 3 | 10A | |
| DAMPER RUBBER,FUSE | 6 | 92075-279 | 1 | ||
| ALARM,TURN SIGNAL | 7 | 27040-001 | 1 | ||
| BRACKET,ALARM | 8 | 27023-004 | 1 | KZ400-D3 | |
| WASHER SPRING 6MM | 9 | 461F0600 | 1 | ||
| SCREW PAN HEAD 6X10 | 10 | 220B0610 | 1 | ||
| RELAY-TURN SIGNAL | 11 | 27002-011 | 1 | ||
| BOLT,8X20 | 12 | 115G0820 | 1 | ||
| WASHER SPRING 8MM | 13 | 461F0800 | 1 | ||
| HORN | 14 | 27003-1006 | 1 | ||
| SWITCH,BRAKE LIGHT | 15 | 27010-025 | 1 | ||
| NUT,BRAKE LAMP SWITCH | 16 | 27037-001 | 1 | ||
| SPRING,BRAKE LIGHT SW | 17 | 27011-015 | 1 | ||
| SWITCH,BK LIGHT IND | 18 | 28019-002 | 1 | ||
| BAND,LONG | 19 | 92072-032 | 5 | L=218 MM | |
| BAND,MIDDLE | 20 | 92072-031 | 5 | L=149 MM | |
| BAND,SHORT | 21 | 92072-030 | 10 | L=123 MM | |
| BAND,BREATHER WIRE | 22 | 92072-067 | 3 | L=95 MM | |
| YUA BAT 12N12A-4A-1 | 23 | 26012-045 | 1 | KZ400-D3 | |
| YUA BAT 12N12A-4A-1 | 23 | 26012-045 | 1 | KZ400-D4 | |
| WIRE,LEAD | 24 | 26010-044 | 1 | ||
| UNAVAILABLE IN PRICE BOOK | 25 | 56022-057 | 1 | ||
| CLAMP,WIRING HARNESS | 26 | 21126-008 | 1 |
| WIRING HARNESS REAR | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WIRING HARNESS,MAIN | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FUSE ASSY | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FUSE-20A | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | 20A |
| FUSE 10A | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | 10A |
| DAMPER RUBBER,FUSE | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ALARM,TURN SIGNAL | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET,ALARM | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | KZ400-D3 |
| WASHER SPRING 6MM | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 6X10 | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RELAY-TURN SIGNAL | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,8X20 | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 8MM | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HORN | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SWITCH,BRAKE LIGHT | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,BRAKE LAMP SWITCH | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,BRAKE LIGHT SW | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SWITCH,BK LIGHT IND | |
| REF # | 18 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BAND,LONG | |
| REF # | 19 |
|---|---|
| PART NUMBER | |
| QUANTITY | 5 |
| DESTINATION | |
| REMARKS | L=218 MM |
| BAND,MIDDLE | |
| REF # | 20 |
|---|---|
| PART NUMBER | |
| QUANTITY | 5 |
| DESTINATION | |
| REMARKS | L=149 MM |
| BAND,SHORT | |
| REF # | 21 |
|---|---|
| PART NUMBER | |
| QUANTITY | 10 |
| DESTINATION | |
| REMARKS | L=123 MM |
| BAND,BREATHER WIRE | |
| REF # | 22 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | L=95 MM |
| YUA BAT 12N12A-4A-1 | |
| REF # | 23 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | KZ400-D3 |
| YUA BAT 12N12A-4A-1 | |
| REF # | 23 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | KZ400-D4 |
| WIRE,LEAD | |
| REF # | 24 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| UNAVAILABLE IN PRICE BOOK | |
| REF # | 25 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP,WIRING HARNESS | |
| REF # | 26 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
