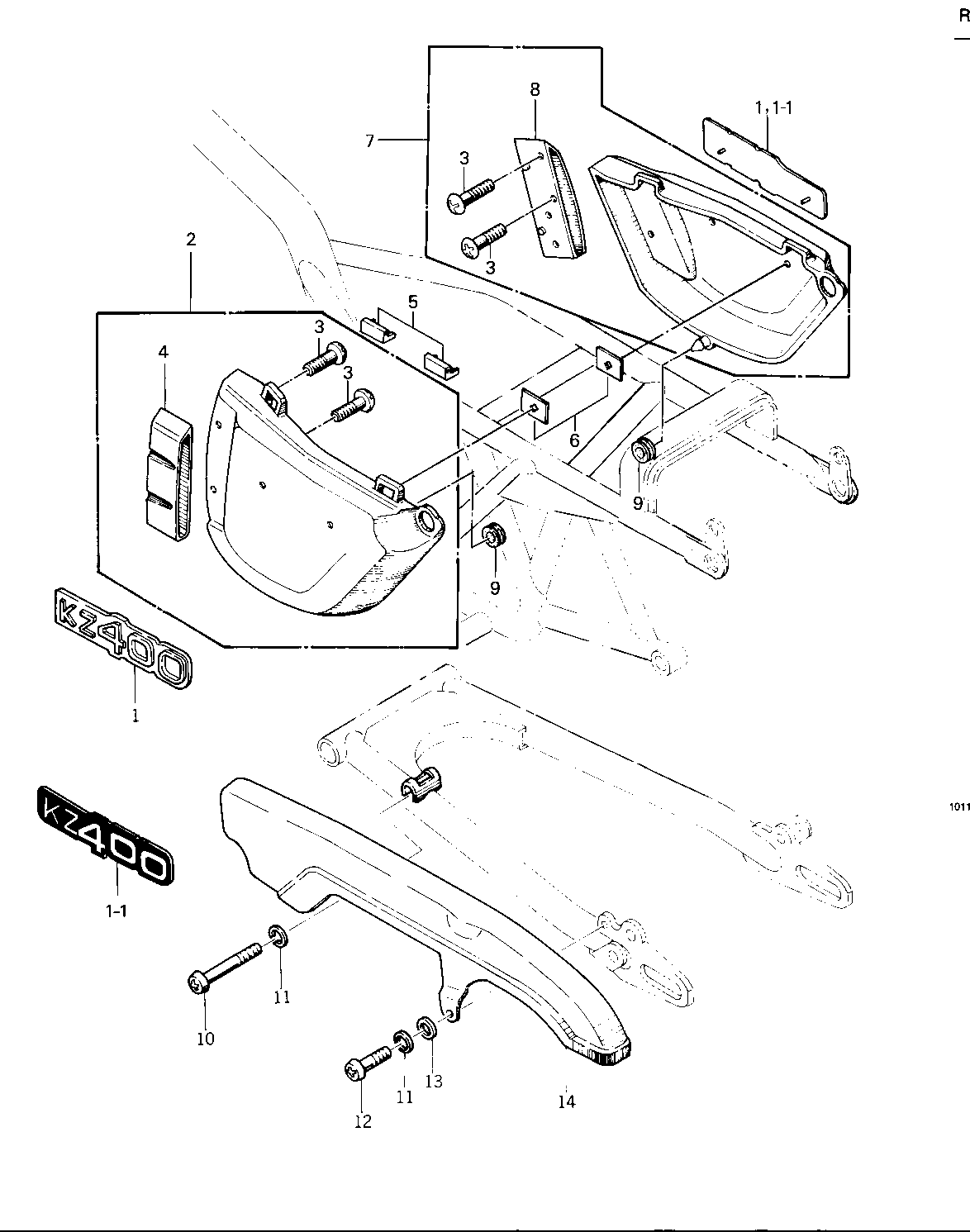

1976 KZ400-D3 - SIDE COVERS/CHAIN COVER ('76 -'77 KZ400
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| EMBLEM,SIDE COVER | 1 | 56018-231 | 2 | KZ400-D3 | |
| EMBLEM,SIDE COVER | 1-1 | 56018-267 | 2 | KZ400-D4 | |
| COVER,L.H SIDE,D.BLUE | 2 | 36001-053-3P | 1 | KZ400-D3 | |
| COVER,L.H SIDE,D.COPP | 2 | 36001-053-3Q | 1 | KZ400-D3 | |
| COVER,L.H,SIDE,S.RED | 2 | 36001-055-3R | 1 | KZ400-D4 | |
| COVER,L.H.SIDE,C.BLUE | 2 | 36001-055-4X | 1 | KZ400-D4 | |
| SCREW,TAPPING | 3 | 92008-009 | 8 | ||
| TRIMING,L.H SIDE COV | 4 | 36029-004 | 1 | KZ400-D3 | |
| TRIMING,L.H.S CVR BLK | 4 | 36029-005-6Z | 1 | KZ400-D4 | |
| PROTECTOR SIDE COVER | 5 | 31082-005 | 3 | ||
| NUT,LOCK,3MM | 6 | 92018-005 | 4 | ||
| COVER,RH SIDE,D.BLUE | 7 | 36007-048-3P | 1 | KZ400-D3 | |
| COVER,RH SIDE,S.RED | 7 | 36007-053-3R | 1 | KZ400-D4 | |
| COVER,RH SIDE,C.BLUE | 7 | 36007-053-4X | 1 | KZ400-D4 | |
| TRIMING,R.H SIDE COV | 8 | 36029-003 | 1 | KZ400-D3 | |
| TRIMING,R.H.S CVR BLK | 8 | 36029-006-6Z | 1 | KZ400-D4 | |
| GROMMET | 9 | 92071-056 | 2 | ||
| SCREW PAN HEAD 6X60 | 10 | 220E0660 | 1 | ||
| WASHER SPRING 6MM | 11 | 461F0600 | 2 | ||
| SCREW PAN HEAD 6X12 | 12 | 220E0612 | 1 | ||
| WASHER PLAIN 6MM | 13 | 410B0600 | 1 | ||
| CASE-CHAIN,BLACK | 14 | 36014-063-10 | 1 | BLACK |
