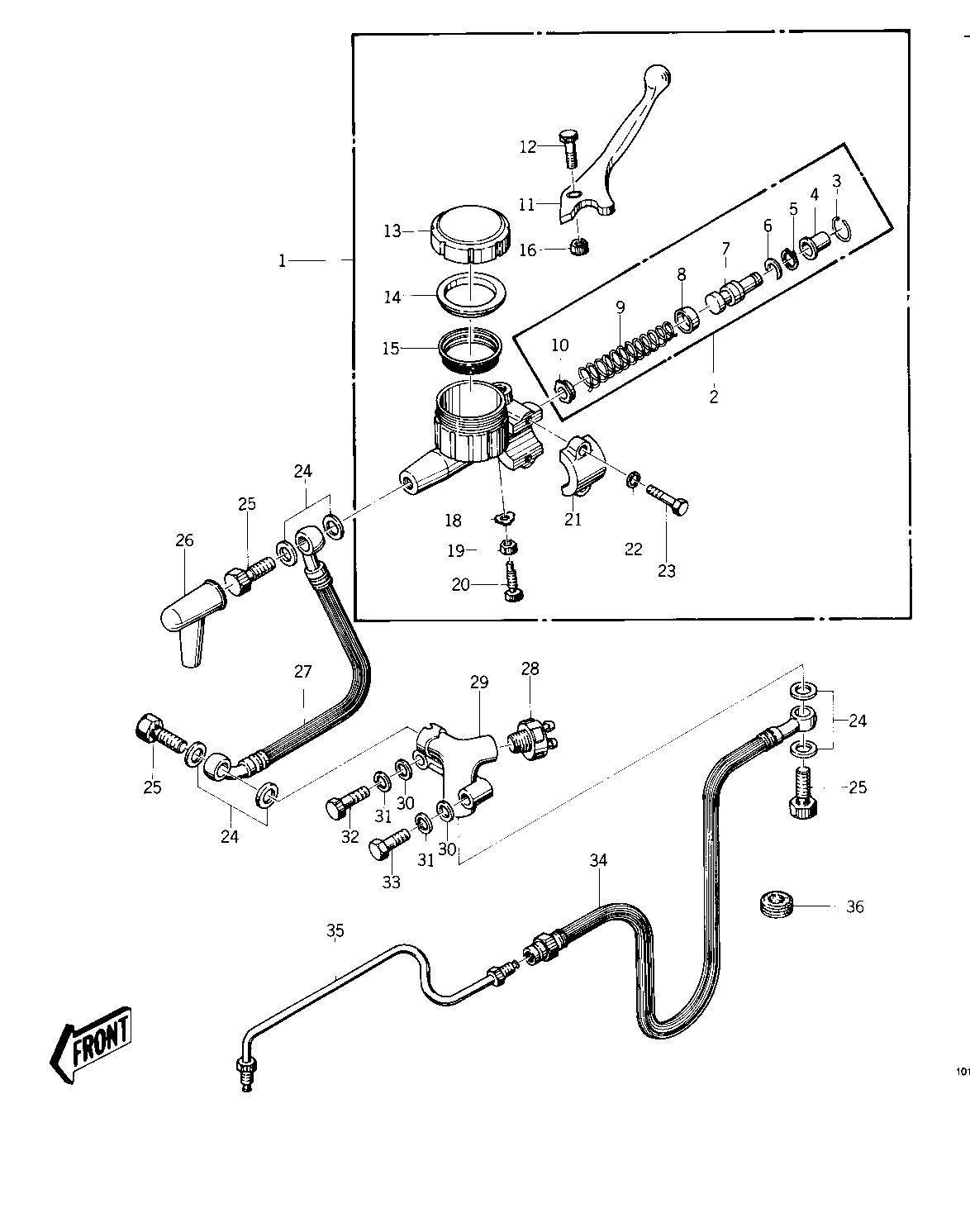

1976 KZ400-D3 - FRONT MASTER CYLINDER ('76 -'77 KZ400 -

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CYLINDER ASSY,MASTER 1 43015-032 1
CYLINDER ASSY,MASTER 1 43015-032 AL
.REPAIR SET-MASTER CYL 2 43073-001 1
..STOPPER-BOOTS 3 43025-001 1
..BOOTS 4 43024-001 1
..CIRCLIP,18MM 5 481J1800 1
..STOPPER-PISTON 6 43022-001 1
..PISTON ASSY 7 43072-001 1
..CUP-PRIMARY 8 43019-001 1
..SPRING ASSY-RETURN 9 43018-001 1
..VALVE ASSY-CHECK 10 43017-001 1
.LEVER,FRONT BRAKE 11 43029-003 1
.BOLT 12 43033-004 1
.CAP,OIL CUP 13 43026-003 1
.PLATE-MASTER CYLINDER 14 43027-001 1
.DIAPHRAGM 15 43028-001 1
.NUT,6MM 16 312N0600 1
.WASHER-LOCK,8MM 18 43031-001 1
.NUT,8MM 19 314N0800 1
NUT,8MM 19 314N0800 AL
.BOLT,LEVER ADJUSTING 20 43030-003 1
.HOLDER-MASTER CYL 21 43034-001 1
.WASHER PLAIN 6MM 22 411B0600 2
.BOLT HEX HEAD 6X25 23 110N0625 2
WASHER-OIL BOLT 24 43067-001 6
BOLT,OIL,L=23 25 92002-1888 3
BOOT,DUST 26 49006-1041 1
BOOT,DUST 26 49006-1041 1
HOSE,CYLINDER BRAKE 27 43059-019 1
SWITCH-FRONT BRAKE 28 43065-001 1
JOINT,THREE WAY 29 43061-002 1
WASHER PLAIN 6MM 30 411B0600 2
WASHER SPRING 6MM 31 461F0600 2
BOLT 6X22 32 112B0622 1
BOLT-HEX HEAD,6X32 33 110N0632 1
HOSE,CALIPER BRAKE 34 43059-020 1
PIPE,BRIDGE 35 43060-018 1
GROMMET-HOSE BRACKET 36 43064-001 1
