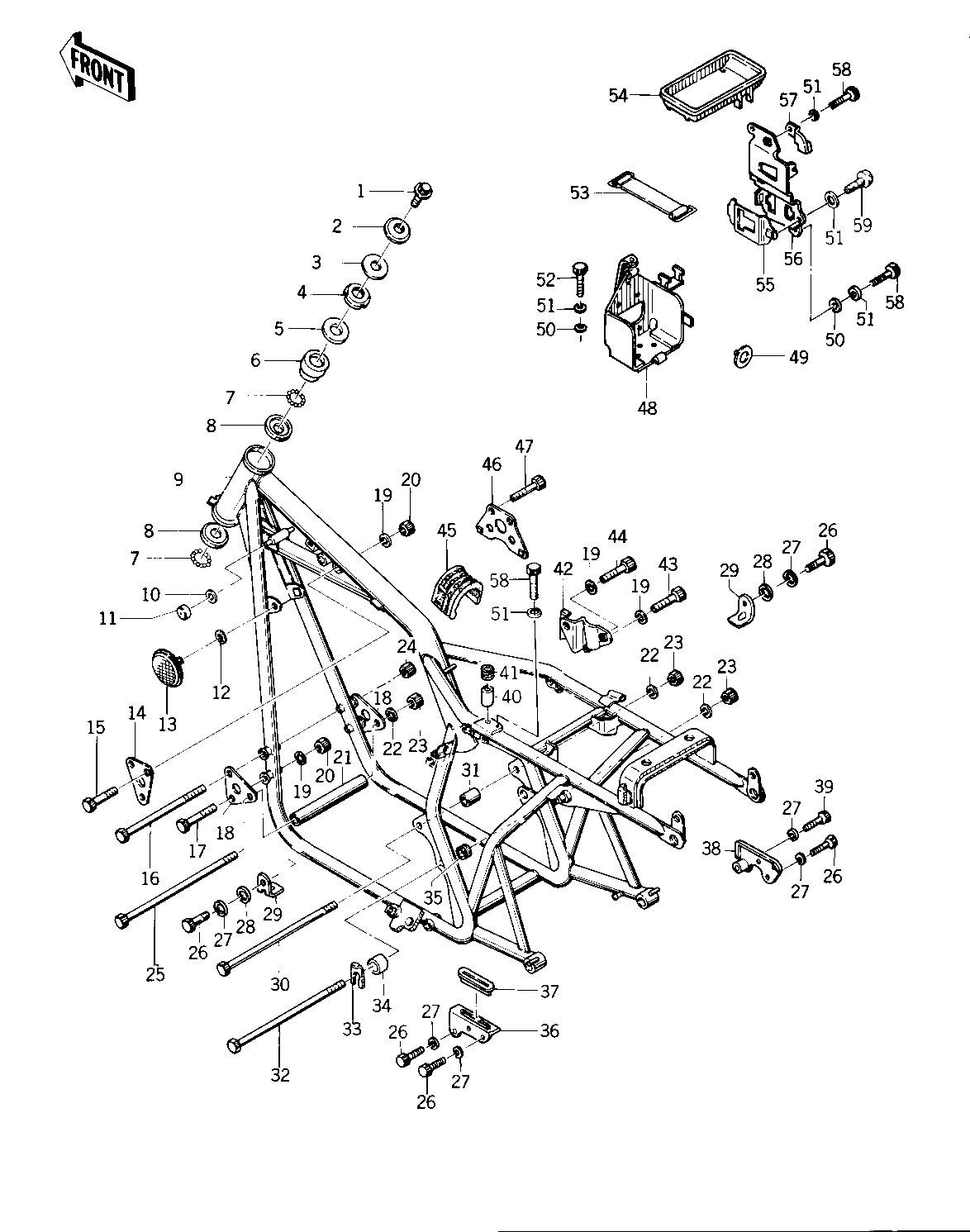

1976 KZ400-D3 - FRAME/FRAME FITTINGS ('76 -'77 KZ400 -

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT,STEERG STEM HEAD 1 92007-031 1
WASHER,STEERG STM HD 2 92022-230 1
WASHER,WAVE 3 46100-003 1
NUT STEERING STEM LCK 4 92090-007 1
CAP, STEERING STEM 5 46098-016 1
CONE STRNG STEM BERNG 6 92047-006 1
BALL STEEL 1/4' 7 600A0800 38
RACE STRNG STEM BERNG 8 92048-006 2
FRAME 9 32002-168 1 KZ400-D3
FRAME 9 32002-168 1 KZ400-D4
WASHER-PL-10.5X26X2.3 10 92022-044 2
DAMPER RUBBER,FL TANK 11 92075-125 2
DAMPER RUBBER,REFLECT 12 92094-011 2
REFLECTOR,REFLEX,REAR 13 28012-009 2
PLATE,ENG MOUNT,UPPER 14 32030-038 2
BOLT FLANGED 8X55 15 92001-1398 3 KZ400-D3
BOLT FLANGED 8X55 15 92001-1398 3
BOLT,8X55 15 92001-1386 3 KZ400-D4
BOLT,8X55 15 92001-1386 AL
BOLT,HEX HEAD,8X253 16 92003-171 1
BOLT,HEX HEAD,8X59 17 110G0859 2
BOLT,FLANGED,8X60 17 92001-1581 2
PLATE,ENG MOUNT,FRNT 18 32030-044 2
WASHER SPRING 8MM 19 461F0800 8
NUT,8MM 20 311B0800 5
COLLAR,ENG PLAT,FRNT 21 92027-233 1
WASHER SPRING 10MM 22 461F1000 3
NUT,LOCK,10MM 23 92019-021 3
NUT,LOCK,8MM 24 92015-1124 1 KZ400-D3
NUT,LOCK,8MM 24 92015-1124 1
NUT,LOCK,8MM 24 92017-013 1 KZ400-D4
BOLT,FLANGED,10X255 25 92001-1609 1
BOLT-SMALL-UPSET,8X16 26 115G0816 5
WASHER SPRING 8MM 27 461F0800 6
WASHER,8.5X20X1.6 28 92022-1561 2
BRACKET,AIR CLEANER 29 32070-033 2
BOLT FLANGED 10X220 30 92002-1197 1
COLLAR,ENG MOUNT UPPE 31 92027-228 1
BOLT,HEX HEAD,10X292 32 92003-162 1
SHIM-ENG FIT FR,0.5MM 33 92025-053 AR
SHIM-ENG FIT FR,0.8MM 33 92025-054 AR
SHIM-ENG FIT FR,1.0MM 33 92025-055 AR
SHIM-ENG FIT FR,1.6MM 33 92025-056 AR
SHIM-ENG FIT FR,2.0MM 33 92025-057 AR
SHIM-ENG FIT FR,2.3MM 33 92025-058 AR
COLLAR 34 92027-250 AR
COLLAR,ENG MOUNTING 35 92027-160 1
BRACKET,BASE 36 32129-008 1
DAMPER RUBBER 37 92075-280 1
BRACKET,BASE 38 32129-009 1
BOLT 39 92001-1578 1
COLLAR,6.8X10X8.5 40 92027-129 1
DAMPER RUBBER 41 92075-076 1
PLATE,ENG MOUNT,REAR 42 32030-034 1
BOLT,8X20 43 115G0820 1
BOLT-SMALL-UPSET 8X25 44 115G0825 1
DAMPER RUBBER,FL TNK 45 92075-215 1
BRACKET,IGNITON COIL 46 32058-049 1
BOLT,SPROCKET FITTING 47 92003-208 2
CASE,BATTERY 48 32097-041 1
DAMPER RUBBER 49 92075-078 7
WASHER 6.5X20X1.6T 50 92022-125 2
WASHER SPRING 6MM 51 461F0600 3 KZ400-D3
WASHER SPRING 6MM 51 461F0600 5 KZ400-D3
BOLT 6X22 52 112B0622 1
BAND BATTERY 53 92072-006 1
CASE,TOOL 54 32098-025 1
BRACKET,ELECT BASE 55 32129-004 1
BRACKET,BASE 56 32129-010 1
BRACKET,SIGNAL RELAY 57 32122-047 1
BOLT-UPSET 6X14 58 112B0614 2 KZ400-D3
BOLT-UPSET 6X14 58 112B0614 3 KZ400-D3
SCREW PAN HEAD 6X12 59 220B0612 1
