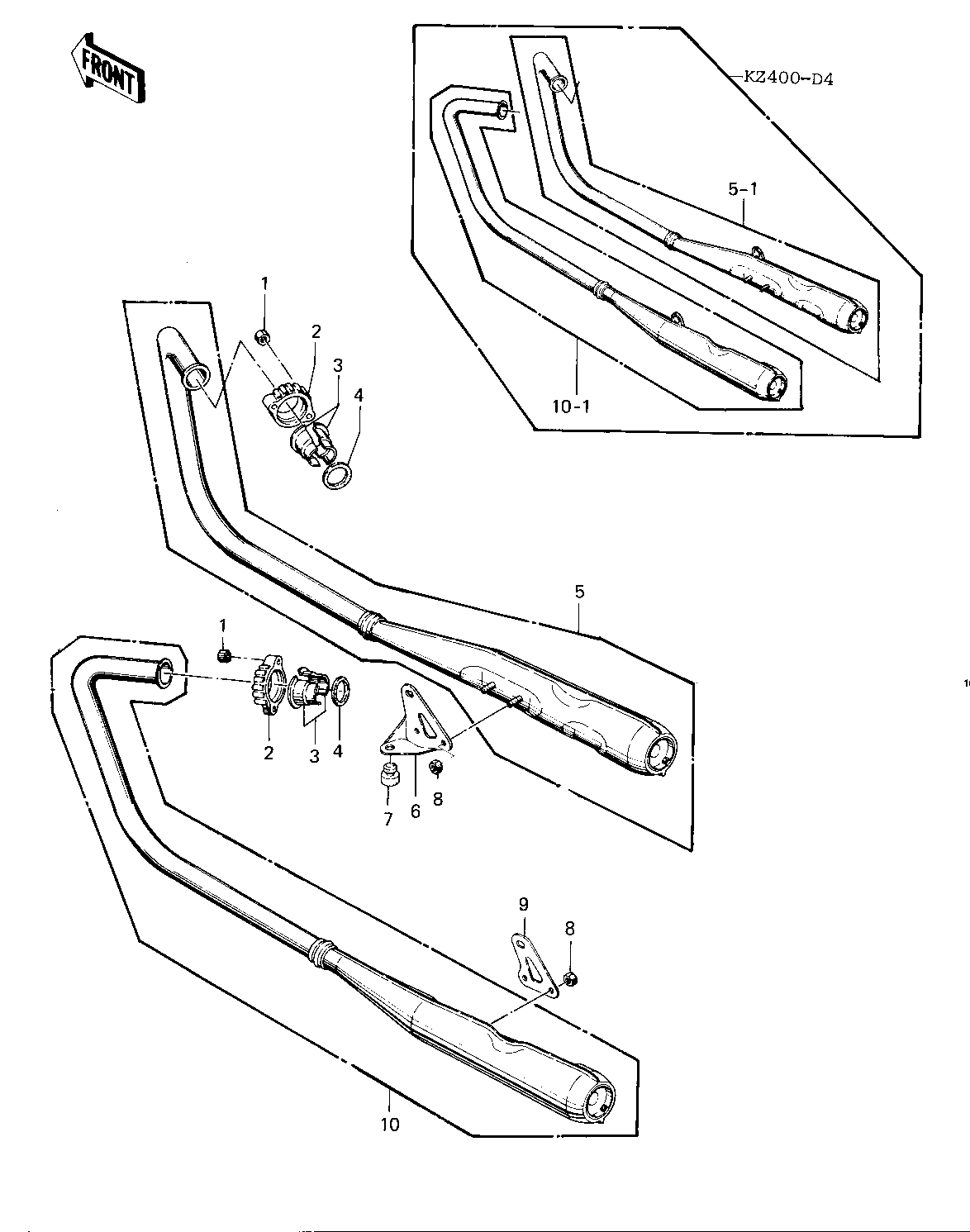

1976 KZ400-D3 - MUFFLERS ('76 -'77 KZ400 - D3/D4)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| UNAVAILABLE IN PRICE BOOK | 1 | 97017-014 | 4 | ||
| HOLDER,EX PIPE,BARREL | 2 | 18069-056-2H | 2 | BARREL | |
| COLLAR,EXHAUST PIPE | 3 | 92027-224 | 4 | ||
| GASKET,EXHAUST PIPE | 4 | 11060-1242 | 2 | ||
| MUFFLER ASSY,R.H. | 5 | 18001-223 | 1 | KZ400-D3 | |
| MUFFLER ASSY,R.H. | 5 | 18001-223 | 1 | KZ400-D3 | |
| MUFFLER ASSY,R.H. | 5-1 | 18001-225 | 1 | KZ400-D4 | |
| BRACKET,METER,R.H | 6 | 18024-024 | 1 | ||
| DAMPER RUBB MAIN STAD | 7 | 92075-015 | 1 | ||
| NUT,LOCK,8MM | 8 | 92015-1124 | 4 | KZ400-D3 | |
| NUT,LOCK,8MM | 8 | 92015-1124 | AL | ||
| NUT,LOCK,8MM | 8 | 92017-013 | 4 | KZ400-D4 | |
| BRACKET,MUFFLER,L.H | 9 | 18024-025 | 1 | ||
| MUFFLER ASSY,L.H | 10 | 18001-222 | 1 | KZ400-D3 | |
| MUFFLER ASSY,L.H | 10 | 18001-222 | 1 | KZ400-D3 | |
| MUFFLER ASSY,L.H. | 10-1 | 18001-224 | 1 | KZ400-D4 |
