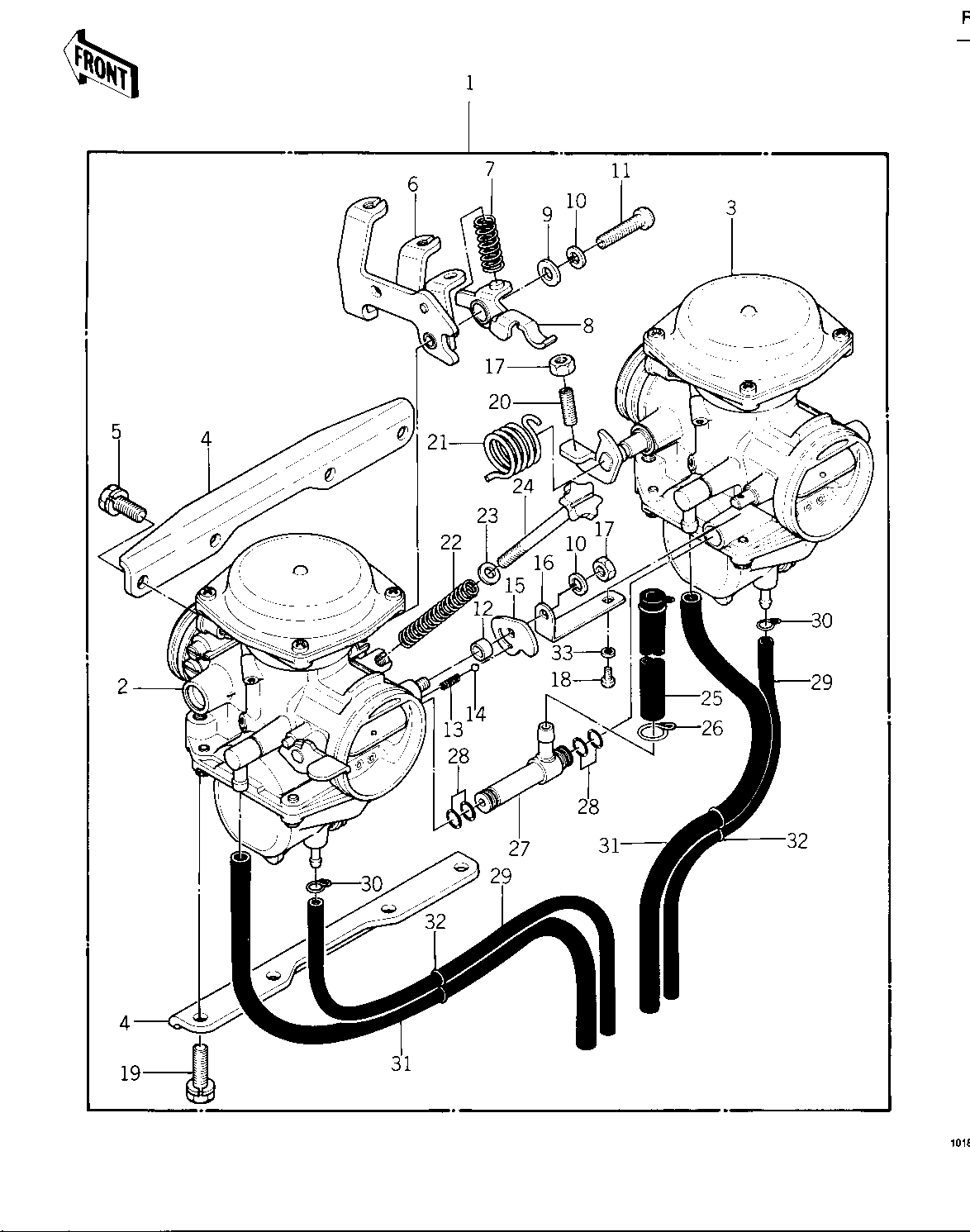

1976 KZ400-D3 - CARBURETOR ASSY (KZ400-D4) ('76 -'77 KZ4

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CARBURETOR ASSY 1 16001-300 1
CARBURETOR,L.H. 2 16001-1006 1
CARBURETOR,R.H. 3 16001-1007 1
PLATE,STAY 4 16065-1001 2
SCREW,6X16 5 92009-1129 4
BRACKET,THR.CBL 6 11034-1008 1
SPRING 7 92081-1003 1
ROCKER ARM 8 11034-1009 1
WASHER,PLAIN 9 16039-027 1
WASHER SPRING 5MM 10 461F0500 2
SCREW-PAN-CROS,5X25 11 220B0525 1
COLLAR,CHOKE LEVER 12 16073-1001 2
SPRING 13 92081-1004 1
BALL,STEEL,1/8" 14 600A0400 1
CAM,CHOKE LINK 15 13169-1007 1
BRACKET,CHOKE LEVER 16 11034-1010 1
NUT,5MM 17 311B0500 2
SCREW-PAN-HEAD 3X6 18 220B0306 1
BOLT,HEX HEAD,6X22 19 92009-1006 4
SCREW,SLOTTED 20 16021-1002 1
SPRING 21 92081-1006 1
SPRING,THR.STOP SCREW 22 92081-1005 1
WASHER PLAIN 5MM 23 410B0500 1
SCREW,THROTTLE STOP 24 16021-1001 1
HOSE,FUEL INLET 25 92059-1001 1
CLAMP,FUEL HOSE 26 92037-1040 2
NIPPLE,FUEL HOSE 27 16046-013 1
"O" RING 28 92055-1004 4
HOSE,FUEL OVERFLOW 29 92059-111 2
CLAMP,TUBE,OVERFLOW 30 92037-1142 2
HOSE 31 92059-110 2
CLAMP,OVERFLOW HOSE 32 16044-002 2
WASHER SPRING 3MM 33 461F0300 1
