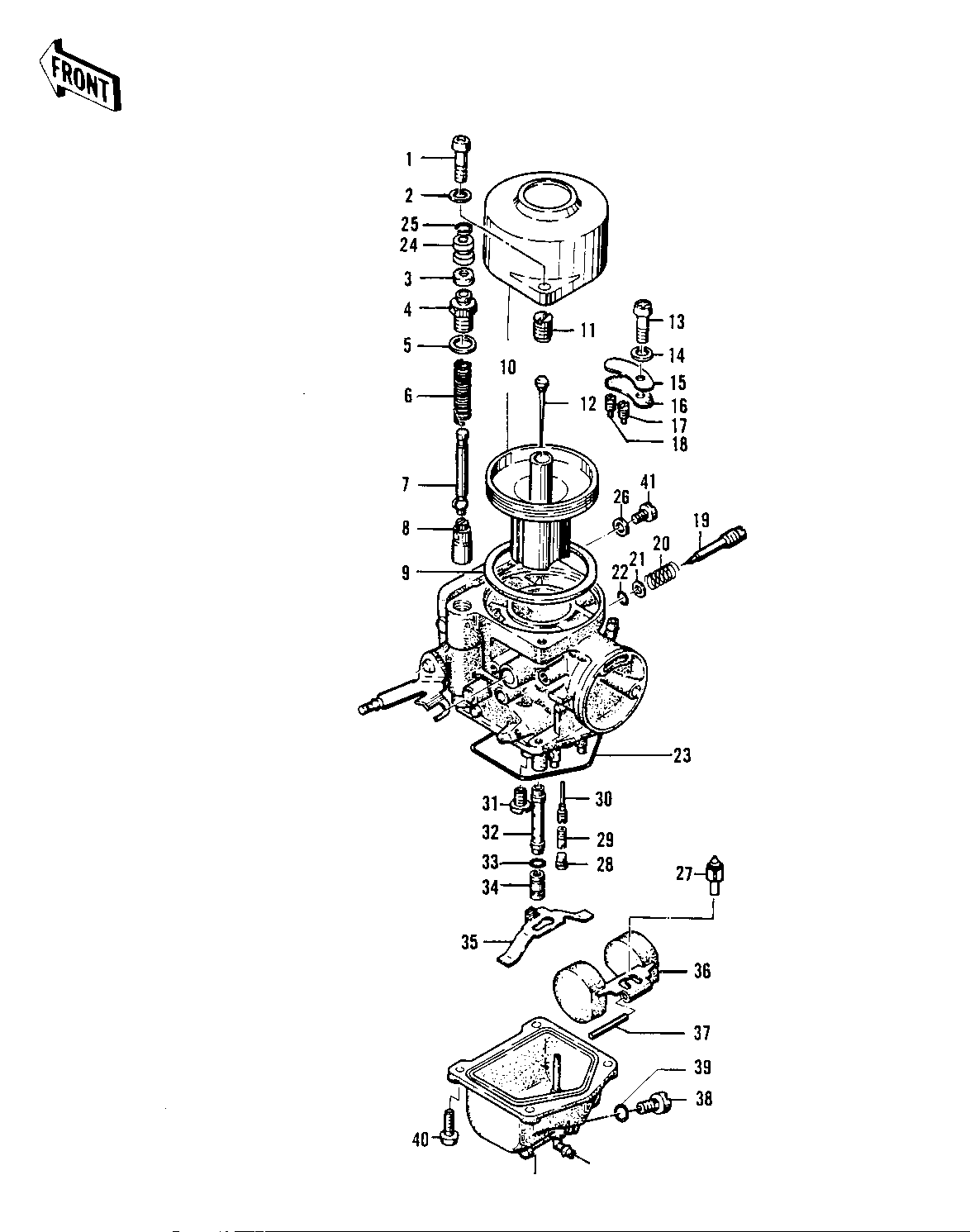

1976 KZ400-D3 - CARBURETOR PARTS (KZ400-D3) ('76 -'77 KZ

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
UNAVAILABLE IN PRICE BOOK 1 214B0516A 4
WASHER SPRING 5MM 2 461F0500 4
CAP,STARTER PLUNGER 3 16036-014 2
CAP,STARTER PLUNGER 4 16012-018 2
WASHER,PLAIN 5 16039-022 2
SPRING,STARTER PLUNG 6 16013-012 2 757B
SPRING,STARTER PLUNGR 6 16013-013 2 757C & LATER
SHAFT,STARTER PLUNGR 7 16041-007 2 757B
SHAFT,STARTER PLUNGER 7 16041-018 2 757C & LATER
PLUNGER,STARTER 8 16016-015 2
GASKET,VACUUM PISTON 9 16029-008 2
VACUUM PISTN&CAB CAP 10 16059-003 2
HOLDER,JET NEEDLE 11 16018-003 2
JET NEEDLE,303011 12 16009-069 2
SCREW PAN HEAD 4X6 13 220B0406 2
WASHER SPRING 4MM 14 461F0400 2
PLATE,AIR JET 15 16055-005 2
GASKET,AIR JET PLATE 16 16029-009 2
AIR JET,#40 17 16035-007 2
AIR JET,#90 18 16035-005 2 757 SERIES
AIR JET,#40 18 16035-007 2 V5A OR V5B
SCREW,PILOT ADJUST 19 16014-013 2
SPRING,PILOT ADJ SCR 20 16015-007 2
WASHER,PLAIN,3.6MM 21 16039-021 2
"O" RING,PILOT SCREW 22 16038-011 2
"O" RING,FLOAT BALL 23 16019-024 2
COLLAR 24 16073-015 2 757C & LATER
CIRCLIP 25 16008-018 2 757C & LATER
WASHER,PLAIN,6MM 26 16039-028 2
FLOAT VALVE 27 16030-1007 2 SEAT PRESSED IN BODY
CAP,PILOT JET RUBBER 28 16036-015 2
PILOT JET,#35 29 92064-043 2
SLOW JET,#35 30 16158-002 2
STARTER JET,#68 31 16157-003 2
NEEDLE JET 32 16017-088 2
"O" RING MAIN JET 33 16038-013 2
MAIN JET, #130 34 92063-130 2 STD
MAIN JET,#115 34 92063-136 (2
MAIN JET,#120 34 92063-129 (2
MAIN JET,#125 34 92063-137 (2
MAIN JET,#135 34 92063-128 (2
MAIN JET,#140 34 92063-138 (2
MAIN JET, #150 34 92063-131 (2
MAIN JET, #160 34 92063-132 (2
PLATE,MAIN JET 35 16055-007 2
FLOAT 36 16031-027 2
FLOAT PIN 37 16032-007 2
SCREW,DRAIN 38 16033-018 2
"O" RING,DRAIN SCREW 39 92055-1003 2
SCREW PAN HEAD 4X10 40 220B0410 4
SCREW,PLUG 41 16033-019 2
