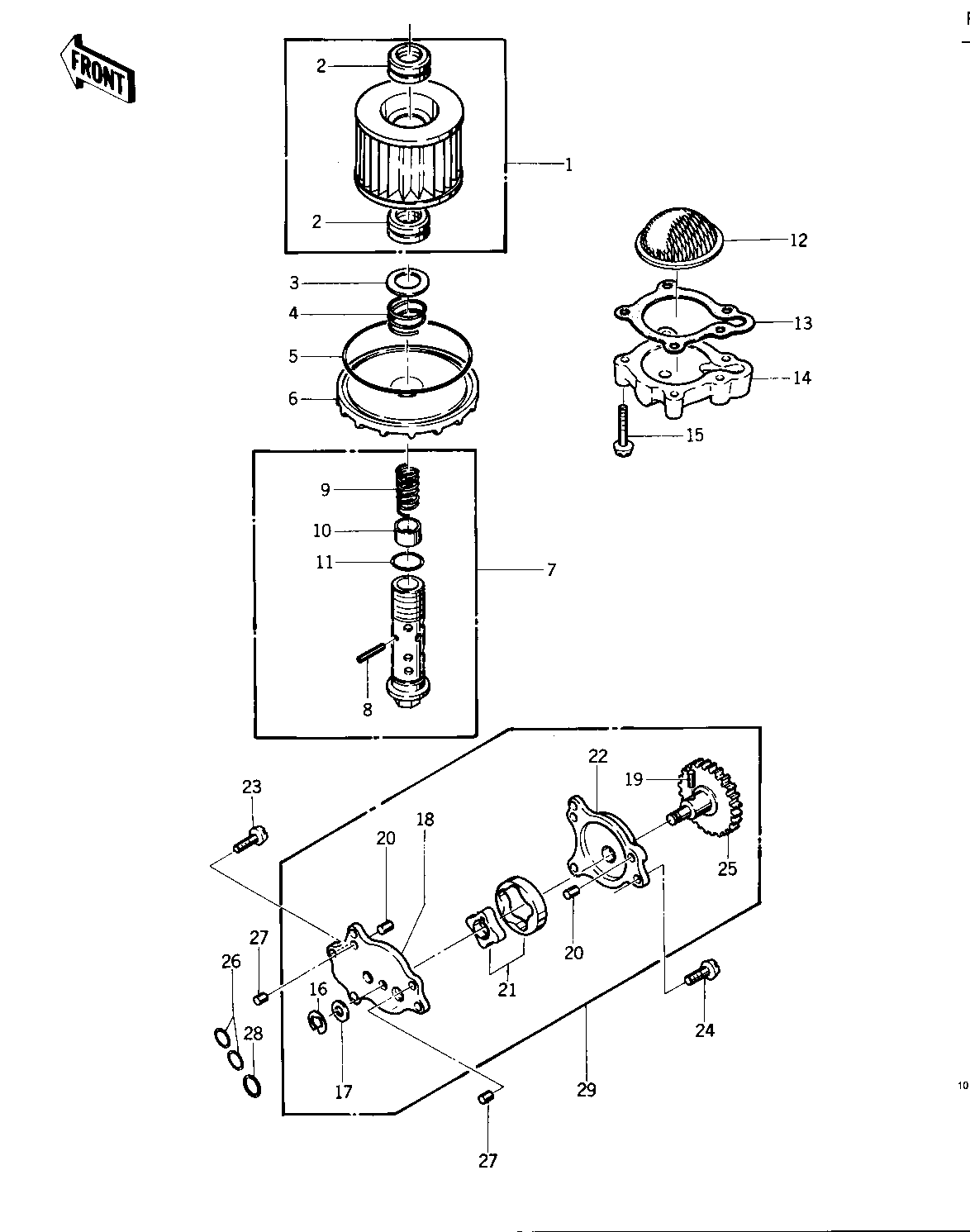

1976 KZ400-D3 - OIL PUMP/OIL FILTER ('76 -'77 KZ400 - D3
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| FILTER,OIL | 1 | 16099-003 | 1 | ||
| GROMMET,OIL FILTER | 2 | 16135-010 | 1 | ||
| SHIM-KICK SHAFT | 3 | 92022-144 | 1 | ||
| SPRING,OIL FILTER | 4 | 92081-1018 | 1 | ||
| SPRING,OIL FILTER | 4 | 92081-1018 | 1 | ||
| "0" RING,90MM | 5 | 671B2590 | 1 | ||
| COVER,OIL FILTER | 6 | 16101-004 | 1 | ||
| VALVE,OIL FILTER | 7 | 16126-1108 | 1 | ||
| VALVE,OIL FILTER | 7 | 16126-1108 | 1 | ||
| SPRING PIN | 8 | 92043-111 | 1 | ||
| SPRING,PISTON | 9 | 92081-133 | 1 | ||
| PISTON | 10 | 92136-001 | 1 | ||
| "0" RING,16MM | 11 | 670B2016 | 1 | ||
| STRAINER,OIL | 12 | 16111-003 | 1 | ||
| GASKET,OIL FILTER COV | 13 | 11009-1874 | 1 | ||
| COVER,OIL STRAINER | 14 | 16101-003 | 1 | ||
| SCREW PAN HEAD 6X30 | 15 | 220B0630 | 5 | ||
| CIRCLIP 5MM | 16 | 482K5000 | 1 | ||
| WASHER,THRUST | 17 | 92026-098 | 1 | ||
| COVER,OIL PUMP | 18 | 16142-002 | 1 | ||
| PIN,DOWEL,4X8 | 19 | 551A0408 | 1 | ||
| PIN,DOWEL,6X8 | 20 | 551A0608 | 2 | ||
| ROTOR ASSY,OIL PUMP | 21 | 16154-001 | 1 | ||
| BODY,OIL PUMP | 22 | 16141-002 | 1 | ||
| SCREW PAN HEAD 6X18 | 23 | 220B0618 | 1 | ||
| SCREW PAN HEAD 6X25 | 24 | 220B0625 | 3 | ||
| GEAR,OIL PUMP DRIVEN | 25 | 16085-023 | 1 | ||
| "O" RING,11.5MM | 26 | 92055-072 | 2 | ||
| PIN,DOWEL,6X8 | 27 | 551A0608 | 2 | ||
| "O" RING,13.5MM | 28 | 92055-073 | 1 | ||
| OIL PUMP ASSY | 29 | 16083-004 | 1 |
