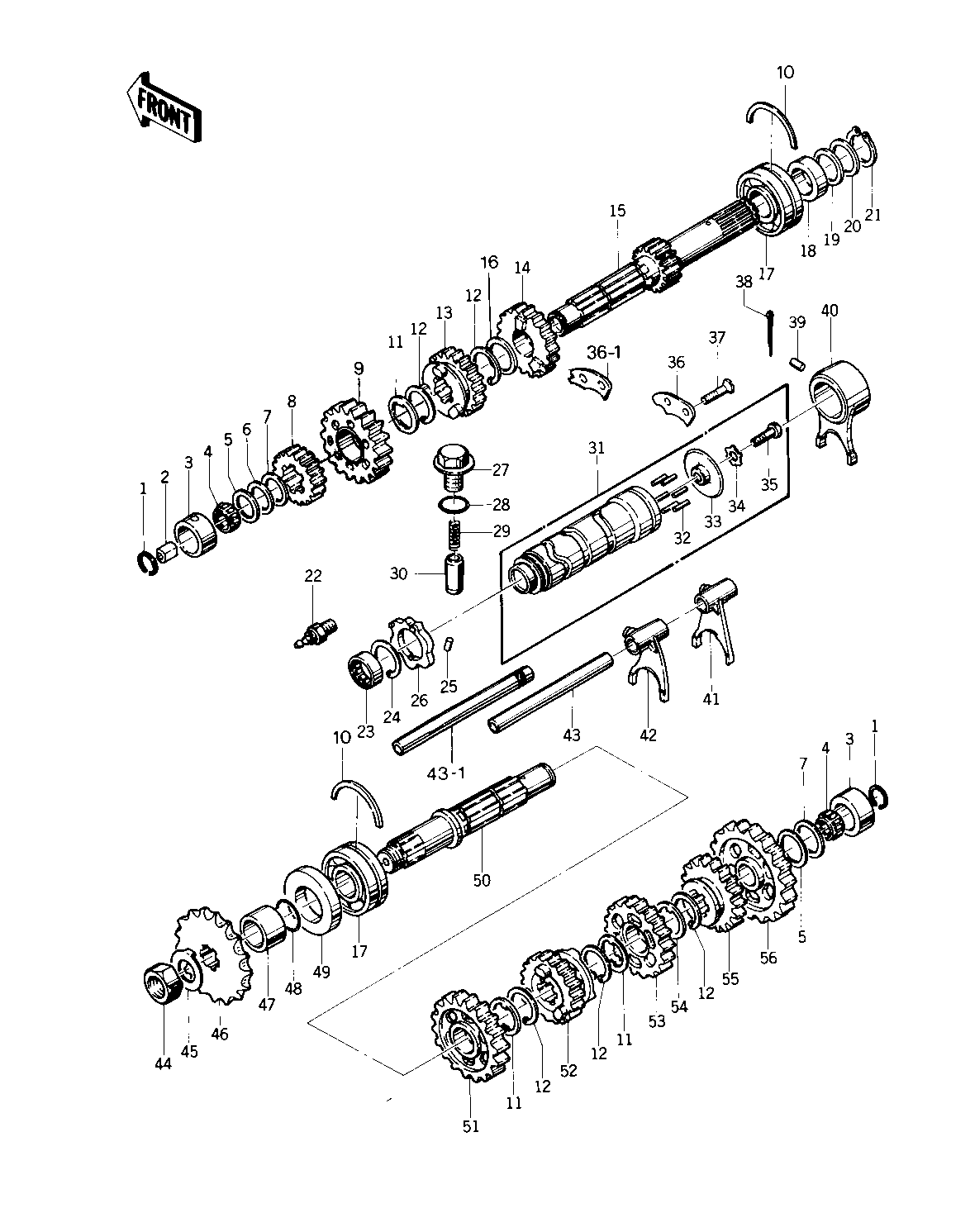

1976 KZ400-D3 - TRANSMISSION/CHANGE DRUM ('76 -'77

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CIRCLIP 1 92033-015 2
BUSHING,DRIVE SHAFT 2 92028-155 1
BUSHING,OUTPUT&DRIVE 3 92028-170 2
BRG,N,20R25139 4 92046-044 2
WASHER THRUST 5 92022-112 2 STEEL
WASHER THRUST 6 92022-113 1 PHOSPHOR-BRONZE
SHIM-KICK SHAFT 7 92022-144 2 STEEL
2ND GEAR,DRIVE SHAFT 8 13130-038 1
TOP GEAR,DRIVE SHAFT 9 13136-056 1 INCL BUSHING
RING BEARING SETTING 10 14013-004 2
WASHER-LOCK 11 92024-038 3
CIRCLIP 12 92033-026 5
3RD GEAR,DRIVE SHAFT 13 13132-037 1
4TH GEAR,DRIVE SHAFT 14 13134-021 1
SHAFT,DRIVE 15 13127-047 1
WASHER-THRUST 16 92022-225 1
BEARING,B,5205ANX4PX 17 92045-031 2
COLLAR 18 92027-289 1 KZ400-D3
COLLAR 18 92027-289 1 KZ400-D4
WASHER-THRUST 19 92022-225 1 SELECTIVE USE
WASHER,CLUTCH TRUST 20 92022-302 1 SELECTIVE USE
CIRCLIP 21 92033-026 1
SWITCH,NEUTRAL 22 13151-5002 1
BRG,N,24BTM3010A 23 92046-039 1
CIRCLIP,30MM 24 480J3000 1
PIN-DOWEL,4X6 25 610A0406 1
CAM-CHANGE DRUM 26 13145-1058 1
BOLT, NEUTRAL POSITON 27 92001-147 1
"O" RING,NEWTRAL PST 28 92055-078 1
SPRING 29 92081-112 1
PIN-NEUTRAL POSITION 30 92043-076 1
DRUM ASSY,GEAR SHIFT 31 13239-014 1
PIN GEAR CHANGE DRUM 32 92042-014 6
PLATE,SHIFT DRUM PIN 33 13142-016 1
WASHER LOCK 6MM 34 464G0600 1
SCREW PAN HEAD 6X14 35 220B0614 1
PLATE,SHIFT DRUM PSTN 36 13169-010 1 KZ400-D3
PLATE,SIFT DRM POSITN 36-1 14014-1001 1 KZ400-D4
PLATE,DRUM POSITION 36-1 13169-1121 AR 0.2 MM OFFSET
SCREW CNTSNK HD 6X16 37 212B0616 2
UNAVAILABLE IN PRICE BOOK 38 550F3020 1
DOWEL PIN,8X18 39 92042-021 1
SHIFT FORK,4TH&TOP 40 13140-068 1
SHIFT FORK,LOW 41 13140-066 1
SHIFT FORK,2ND 3RD 42 13140-067 1
ROD,SHIFT 43 13209-018 1 -E/NO. 081807
SHIFT ROD 43-1 13209-020 1 E/NO. 081808-(D3)
ROD,SHIFT 43-1 13209-022 1 KZ400-D4
NUT 20MM 44 92016-028 1
WASHER,LOCK,20MM 45 92024-044 1
ENGINE SPROCKET,15T 46 13144-1002 1
COLLAR,ENG SPROCKET 47 92027-288 1 KZ400-D3
COLLAR,ENG SPROCKET 47 92027-288 1 KZ400-D4
"O" RING 48 92055-035 1
OIL SEAL SC325210 49 92050-024 1
SHAFT,OUTPUT 50 13128-042 1
2ND GEAR,OUTPUT SHAFT 51 13131-045 1
TOP GEAR,OUTPUT SHAFT 52 13137-031 1
3RD GEAR,OUTPUT SHAFT 53 13133-037 1
WASHER-LOCK 54 92024-033 1
4TH GEAR,OUTPUT SHAFT 55 13135-026 1
LOW REAR,OUTPUT SHAFT 56 13129-053 1
