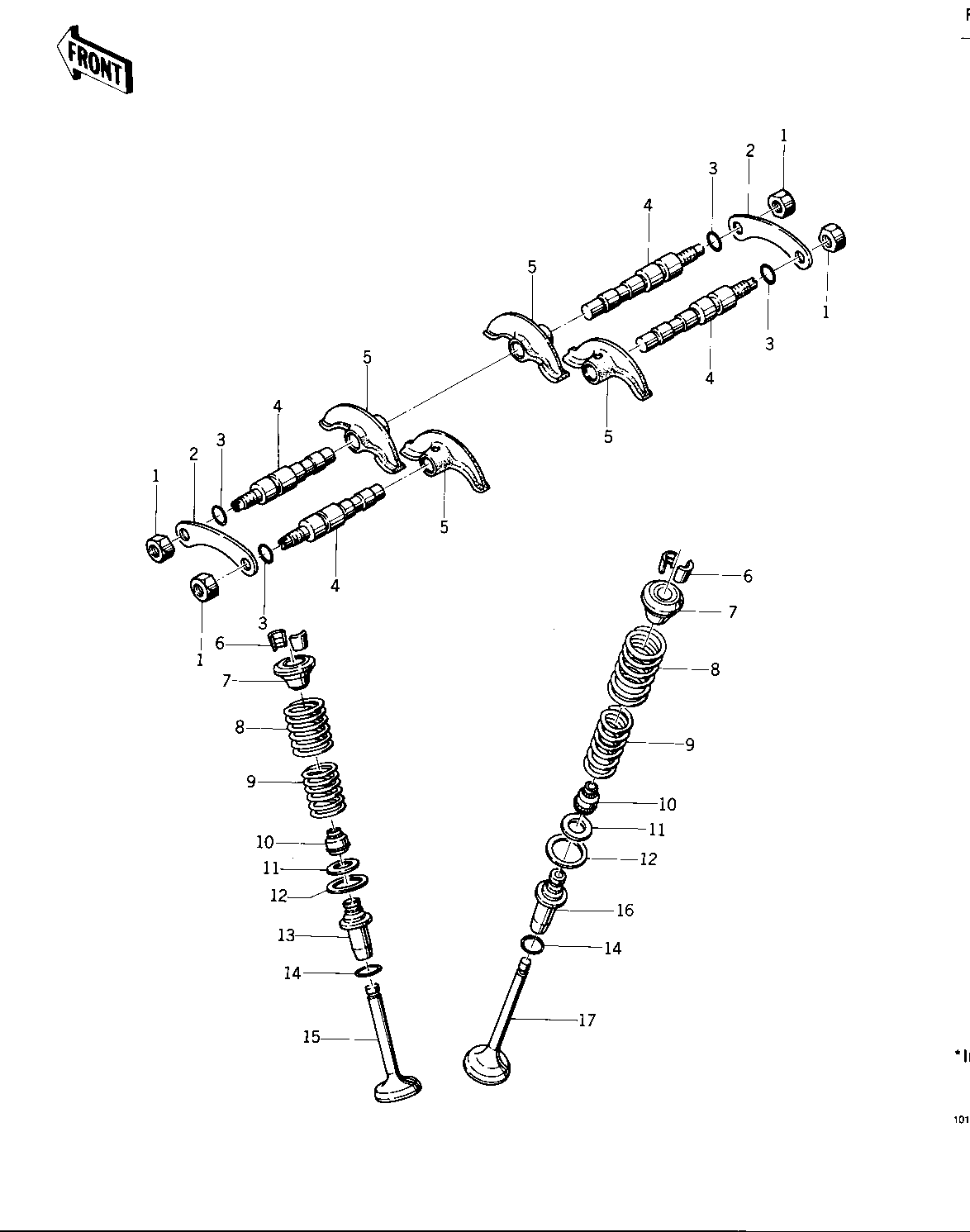

1976 KZ400-D3 - ROCKER ARMS/VALVES ('76 -'77 KZ400 - D3/

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
NUT,8M/M 1 314G0800 4 KZ400-D3
NUT,8M/M 1 314G0800 4 KZ400-D4
WASHER,LOCK 2 92088-022 2
"O" RING 3 92055-098 4
SHAFT,ROCKER 4 12020-003 4
ARM,ROCKER 5 12016-011 4
COLLAR,VALUE SPRING 6 12011-002 8 ~E/NO. 089779
SPLIT KEEPER 6 12011-004 8 E/NO. 089780~
RETAINER,VALVE SPRING 7 12009-006 4
SPRING,OUTER VALVE 8 12007-013 4
SPRING,INNER VALVE 9 12007-014 4
OIL SEAL,RV37129.5 10 92049-016 4
SEAT,VLV INNER SPRING 11 12010-006 4 O.D.=23
SEAT,VLV OUTER SPRING 12 12010-005 4 O.D.=31
GUIDE,EXHAUST VALVE 13 49002-1010 2 ~E/NO. 089779
GUIDE,EXHAUST VALVE 13 49002-1010 2 E/NO. 089780~
GUIDE,EXHAUST VALVE 13 49002-1010 2
"O" RING,VALVE GUIDE 14 92055-065 4
VALVE,EXHAUST 15 12005-006 2 E/NO. 089779
VALVE,EXHAUST 15 12005-012 2 E/NO. 089780~
GUIDE,INLET VALVE 16 12013-003 2 ~E/NO. 089779
GUIDE,INLET VALVE 16 12013-003 2 E/NO. 089780~
VALVE,INLET 17 12004-013 2 ~E/NO. 089779
VALVE,INLET 17 12004-019 2 E/NO. 089780~
VALVE,INLET 17 12004-019 2 E/NO. 089780~
