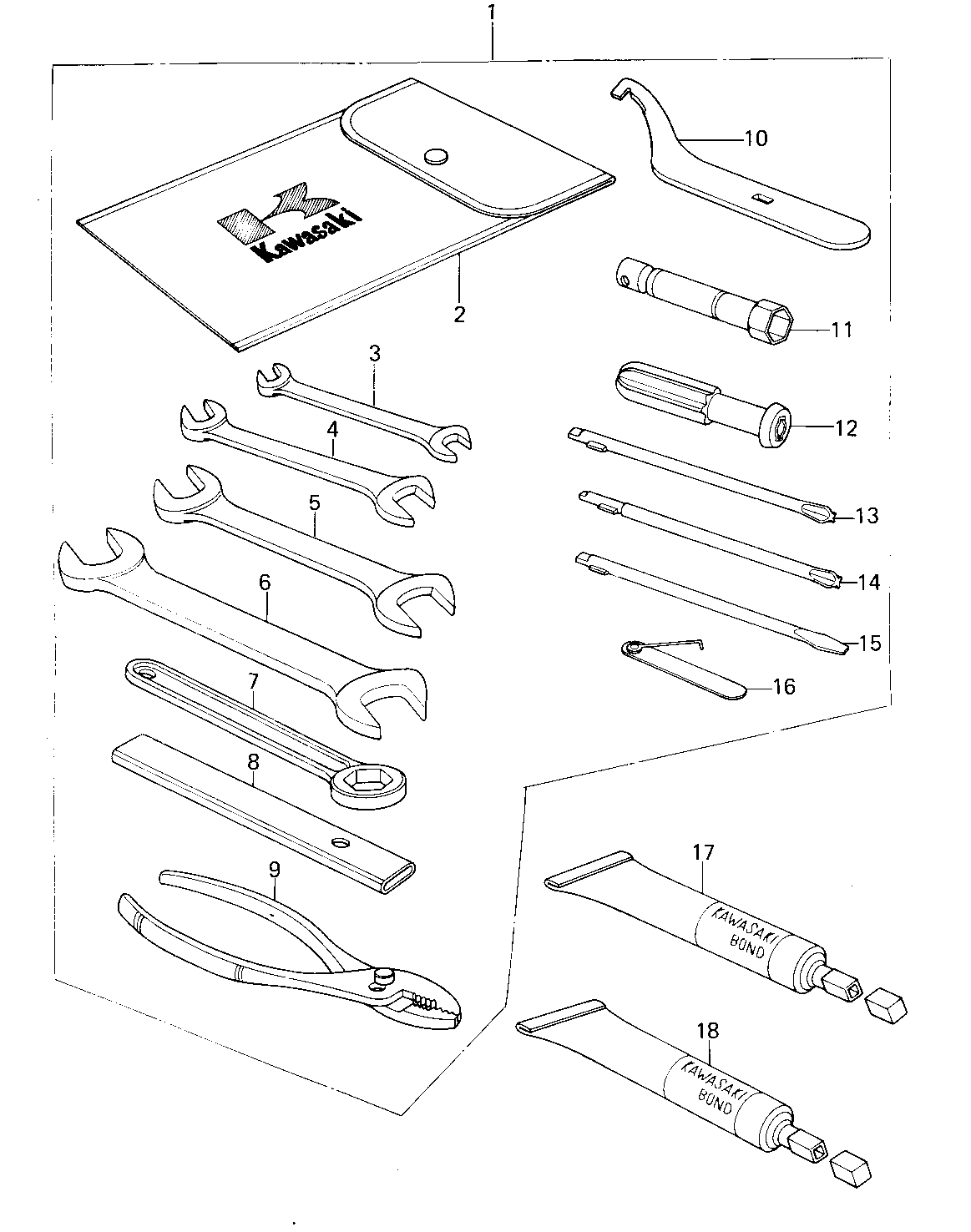

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| TOOL, KIT | 1 | 56007-1015 | 1 | ||
| BAG,TOOL | 2 | 56008-009 | 1 | ||
| WRENCH,OPEN,8X10 | 3 | 92126-001 | 1 | ||
| WRENCH,OPEN END,12X13 | 4 | 92126-002 | 1 | ||
| TOOL-WRENCH,OPEN END,14X17 | 5 | 92110-1153 | 1 | ||
| WRENCH,OPEN END,19X22 | 6 | 92110-1010 | 1 | ||
| TOOL-WRENCH,BOX END, 27MM | 7 | 92110-1147 | 1 | ||
| WRENCH, EXTENDER | 8 | 92111-004 | 1 | ||
| PLIERS,160MM | 9 | 92112-003 | 1 | ||
| WRENCH,HOOK | 10 | 92110-1014 | 1 | ||
| WRENCH,SPARK PLUG | 11 | 92110-018 | 1 | ||
| 92106-1001 (Canada) | 12 | 92106-004 | 1 | ||
| TOOL-DRIVER | 13 | 92107-1052 | 1 | ||
| 92107-1002 (Canada) | 14 | 92107-008 | 1 | ||
| 92107-1052 (Canada) | 15 | 92107-007 | 1 | ||
| GAUGE,THICKENSS | 16 | 92128-001 | 1 | ||
| LIQUID GASKET | 17 | 92104-002 | (1 | ||
| BOND,#10 | 18 | 56019-120 | (1 |
