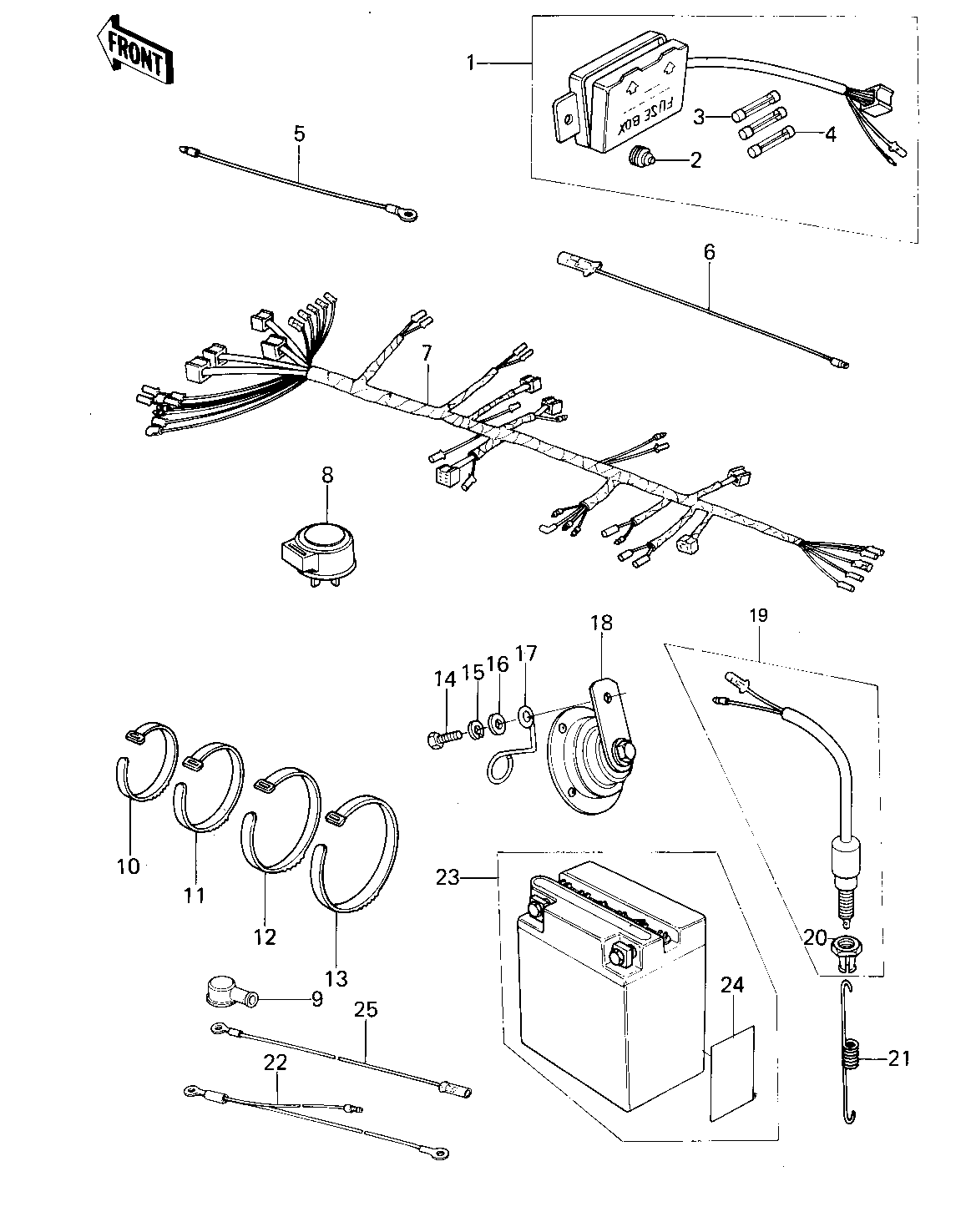

1978 KZ400-C1 - CHASSIS ELECTRICAL EQUIPMENT
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| FUSE ASSY | 1 | 26004-035 | 1 | ||
| DAMPER RUBBER,FUSE | 2 | 92075-279 | 1 | ||
| FUSE-20A | 3 | 26006-005 | 2 | ||
| FUSE 10A | 4 | 26006-003 | 3 | ||
| LEAD WIRE,SIGNAL LAMP | 5 | 26011-063 | 3 | ||
| WIRE,LEAD,REAR SIGNAL | 6 | 26011-1021 | 1 | ||
| HARNESS,MAIN | 7 | 26001-1128 | 1 | ||
| RELAY-TURN SIGNAL | 8 | 27002-011 | 1 | ||
| CAP BAT TERMINAL RUBB | 9 | 92073-001 | 1 | ||
| BAND,BREATHER WIRE | 10 | 92072-067 | 2 | ||
| BAND,SHORT | 11 | 92072-030 | 4 | ||
| BAND,MIDDLE | 12 | 92072-031 | 4 | ||
| BAND,LONG | 13 | 92072-032 | 3 | ||
| BOLT,8X20 | 14 | 115G0820 | 1 | ||
| WASHER SPRING 8MM | 15 | 461F0800 | 1 | ||
| WASHER PLAIN 8MM | 16 | 410B0800 | 1 | ||
| CLAMP,CABLE | 17 | 92037-155 | 1 | ||
| HORN | 18 | 27003-1005 | 1 | ||
| SWITCH,BRAKE LIGHT | 19 | 27010-025 | 1 | ||
| NUT,BRAKE LAMP SWITCH | 20 | 27037-001 | 1 | ||
| SPRING,BRAKE LIGHT SW | 21 | 27011-015 | 1 | ||
| WIRE,LEAD,BATTERY GRD | 22 | 26011-1024 | 1 | ||
| YUA BAT 12N5.5-4A | 23 | K26012-022 | 1 | ||
| LABEL-WARNING,BATTERY | 24 | 56040-1036 | 1 | ||
| WIRE,LEAD,BATTERY | 25 | 26011-1023 | 1 |
