Parts Diagrams |

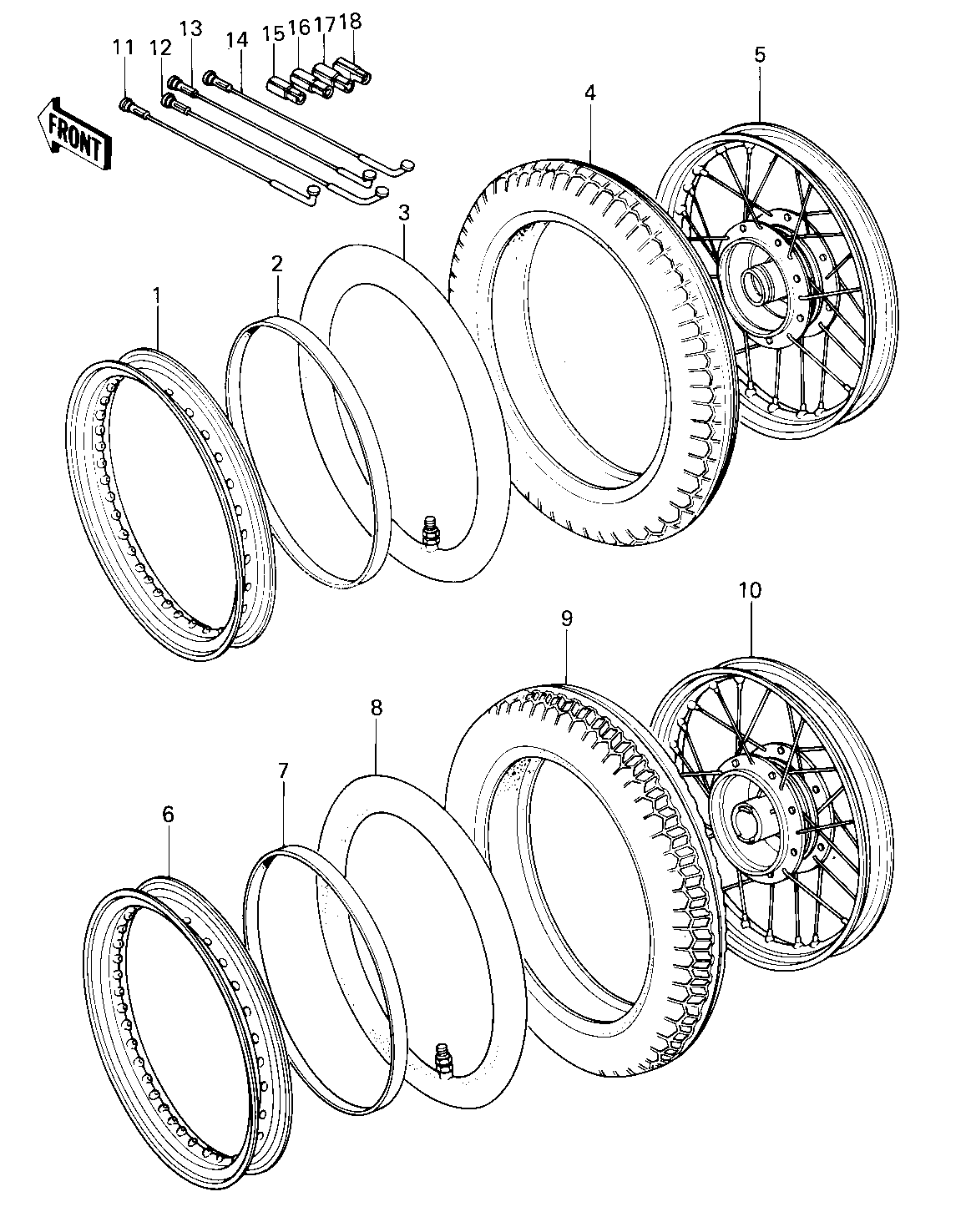

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| RIM,FRONT,1.60X18 | 1 | 41025-1008 | 1 | ||
| BAND RIM | 2 | 41023-001 | 1 | ||
| TUBE 250/275-18 | 3 | 41022-032 | 1 | ||
| TIRE 300S-18 Y986A F | 4 | 41002-1032 | 1 | Y-986A | |
| WHEEL ASSY,FRONT | 5 | 41073-5064 | 1 | ||
| RIM,REAR,18.5X18 | 6 | 41025-1003 | 1 | ||
| BAND,RIM,4.00/5.10-18 | 7 | 41023-1006 | 1 | ||
| TUBE 300/325/360-18 | 8 | 41022-028 | 1 | ||
| TIRE 350S-18 Y987C R | 9 | 41002-1012 | 1 | Y-987A | |
| WHEEL ASSY,REAR | 10 | 41073-5039 | 1 | ||
| SPOKE-ASY,FR INNER | 11 | 41027-045 | 20 | 147.5 M/M X 103 | |
| SPOKE-ASY,FR OUTER | 12 | 41028-044 | 20 | 147 M/M X 86 | |
| SPOKE-ASY,RR INNER | 13 | 41027-5008 | 18 | 155.5 M/M X 102 | |
| SPOKE-ASY,RR OUTER | 14 | 41028-5007 | 18 | 154.5 M/M X 84 | |
| WEIGHT,BALANCE,10G | 15 | 41075-1007 | AR | ||
| WEIGHT,BALANCE,20G | 16 | 41075-1008 | AR | ||
| WEIGHT,BALANCE,30G | 17 | 41075-1009 | AR | ||
| WEIGHT,BALANCE,5G | 18 | 41075-1010 | AR |
| RIM,FRONT,1.60X18 | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BAND RIM | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE 250/275-18 | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TIRE 300S-18 Y986A F | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | Y-986A |
| WHEEL ASSY,FRONT | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RIM,REAR,18.5X18 | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BAND,RIM,4.00/5.10-18 | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE 300/325/360-18 | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TIRE 350S-18 Y987C R | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | Y-987A |
| WHEEL ASSY,REAR | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPOKE-ASY,FR INNER | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 20 |
| DESTINATION | |
| REMARKS | 147.5 M/M X 103 |
| SPOKE-ASY,FR OUTER | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 20 |
| DESTINATION | |
| REMARKS | 147 M/M X 86 |
| SPOKE-ASY,RR INNER | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 18 |
| DESTINATION | |
| REMARKS | 155.5 M/M X 102 |
| SPOKE-ASY,RR OUTER | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 18 |
| DESTINATION | |
| REMARKS | 154.5 M/M X 84 |
| WEIGHT,BALANCE,10G | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | |
| WEIGHT,BALANCE,20G | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | |
| WEIGHT,BALANCE,30G | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | |
| WEIGHT,BALANCE,5G | |
| REF # | 18 |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | |
