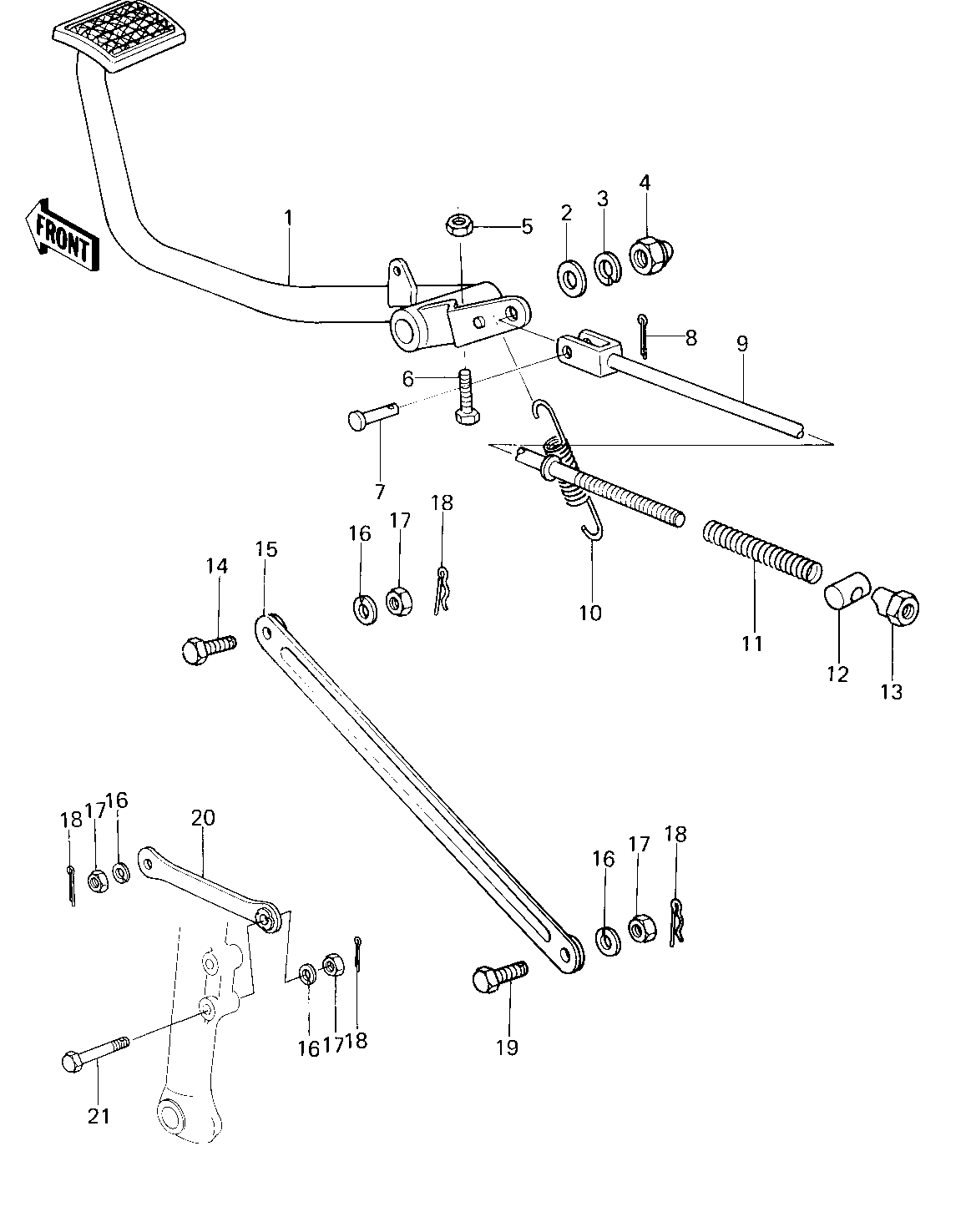

1978 KZ400-C1 - BRAKE PEDAL/TORQUE LINK
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| PEDAL,BRAKE | 1 | 43001-1010 | 1 | ||
| WASHER,8.5X20X1.6 | 2 | 92022-1561 | 1 | ||
| WASHER SPRING 8MM | 3 | 461F0800 | 1 | ||
| NUT,CAP AND LOCK,8MM | 4 | 92019-013 | 1 | ||
| NUT 6MM | 5 | 311B0600 | 1 | ||
| BOLT,HEX HEAD,6X25 | 6 | 92001-1090 | 1 | ||
| PIN,BRAKE ROD FITTING | 7 | 92043-090 | 1 | ||
| PIN COTTER 2.5X16 | 8 | 550D2516 | 1 | ||
| ROD,BRAKE | 9 | 43011-026 | 1 | ||
| SPRING,BRAKE PEDAL | 10 | 43005-029 | 1 | ||
| SPRING,BRAKE ROD | 11 | 43012-001 | 1 | ||
| PIN-BRAKE ROD | 12 | 92043-065 | 1 | ||
| NUT-BRAKE ROD ADJUST | 13 | 92015-042 | 1 | ||
| BOLT TORQUE LINK FIT | 14 | 92003-017 | 1 | ||
| TORQUE LINK REAR BRK | 15 | 43007-016 | 1 | ||
| WASHER SPRING 10MM | 16 | 461F1000 | 4 | ||
| NUT 10MM | 17 | 315B1000 | 4 | ||
| PIN,SNAP | 18 | 554A0800 | 4 | ||
| BOLT HEX HEAD 10MM | 19 | 92003-034 | 1 | ||
| ROD,TORQUE | 20 | 43007-1004 | 1 | ||
| BOLT,10X62 | 21 | 92001-1070 | 1 |
