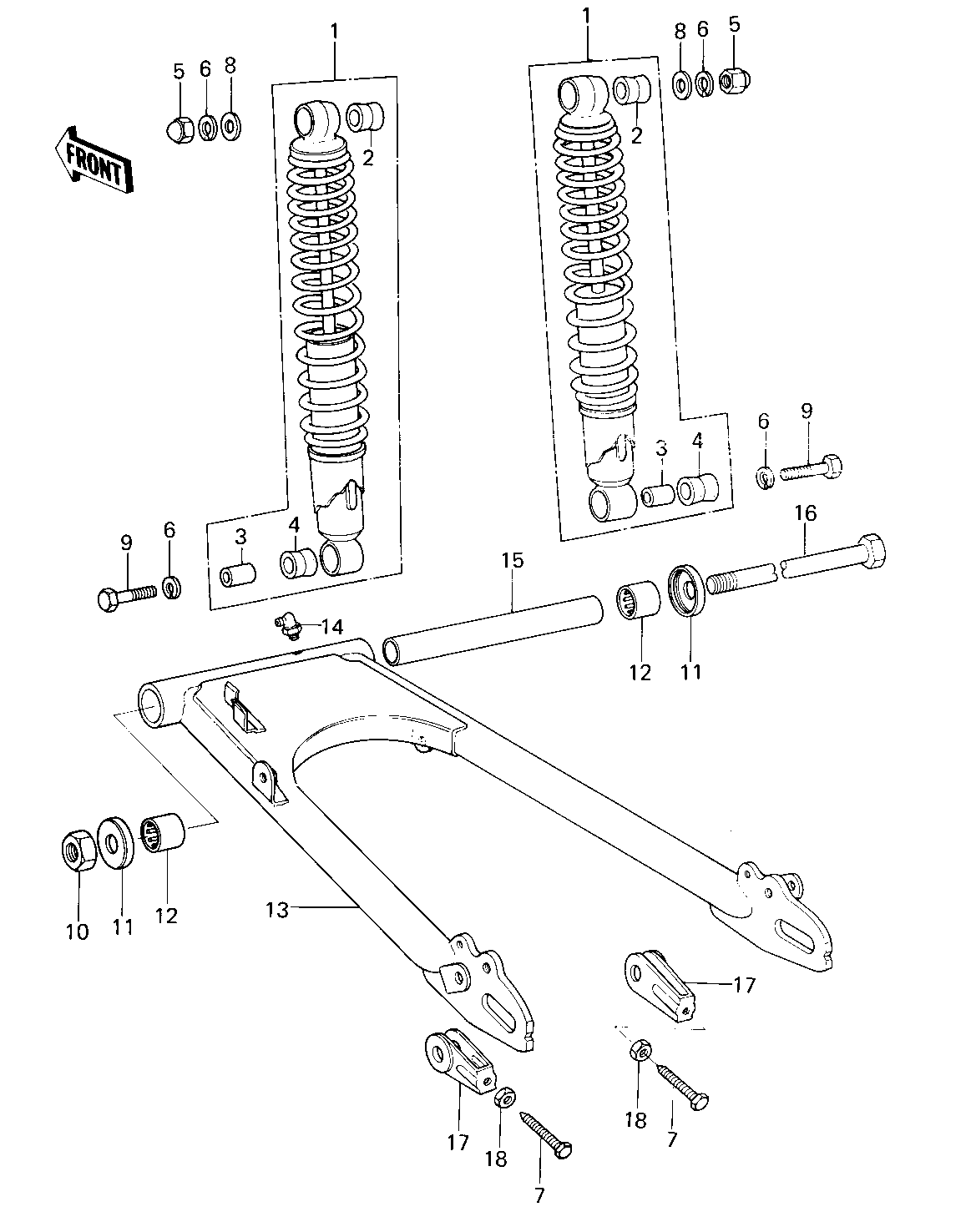

1978 KZ400-C1 - SWING ARM/SHOCK ABSORBERS

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SHOCK ABSBR RR 1 45014-1003 2
BUSHING,SHCK ABS RUB 2 45017-015 2
BUSHING,SHOCK ABSORB 3 45016-008 2
BUSHING, SHCK ABS RUB 4 45017-012 2
NUT SHOCK ABSORBER 5 92020-003 2
WASHER SPRING 10MM 6 461F1000 4
BOLT,8X50 7 92001-1399 2
WASHER,PLAIN 8 92022-1022 2
BOLT HEX HEAD 10X35 9 113N1035 2
NUT-LOCK,14MM 10 92019-011 1
CAP,SWING ARM 11 11012-1029 2
BEARING-NEEDLE,HK2216 12 92046-1115 2
ARM-COMP-SWING 13 33001-1106 1
GREASE NIPPLE 14 92005-002 1
SLEEVE,SWING ARM 15 42036-1017 1
SHAFT,SWING ARM 16 33032-1002 1
ADJUSTER-CHAIN 17 33040-043 2
NUT 8MM 18 312B0800 2
