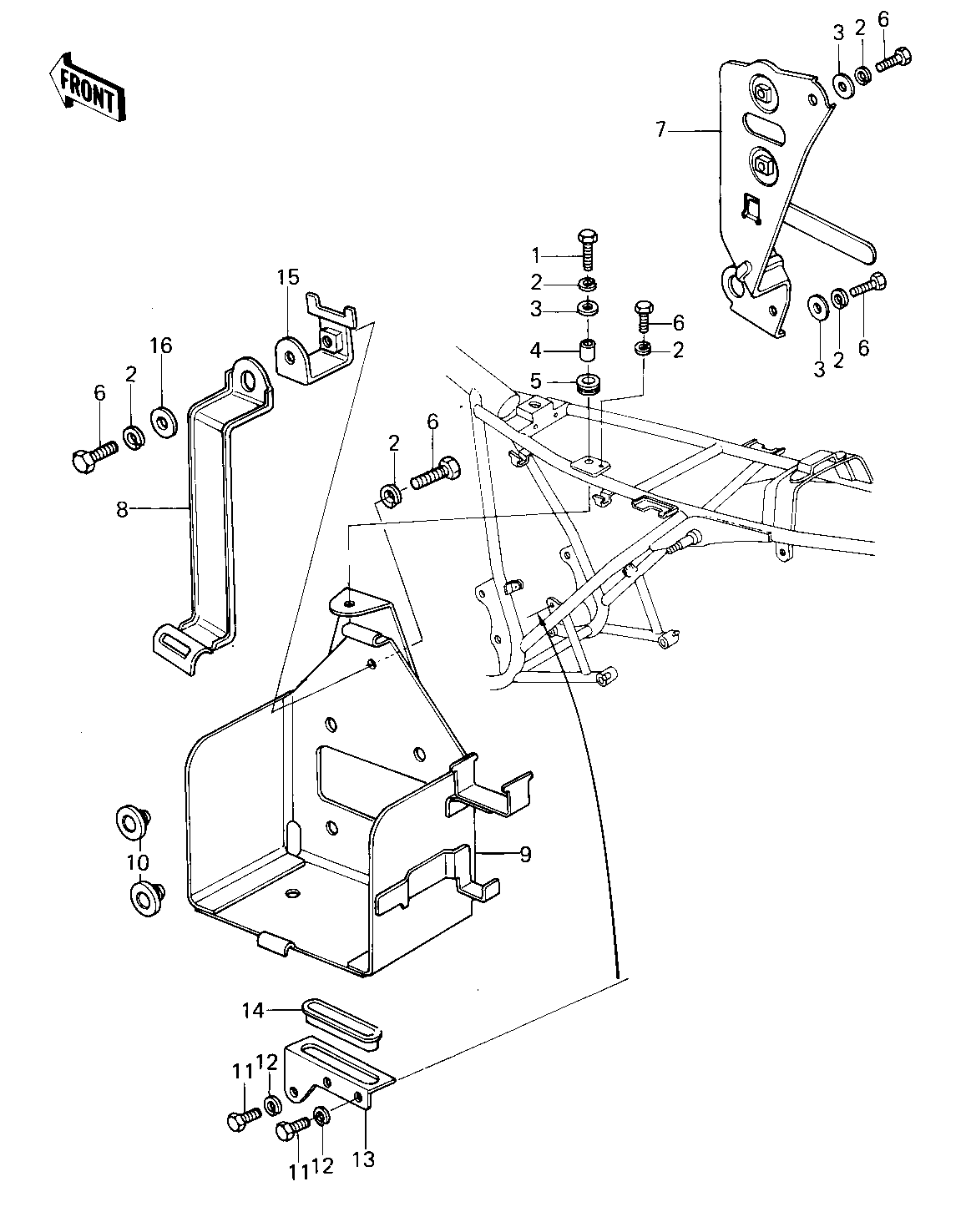

1978 KZ400-C1 - BATTERY CASE/ELECTRO BRACKET
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT 6X22 | 1 | 112B0622 | 1 | ||
| WASHER SPRING 6MM | 2 | 461F0600 | 6 | ||
| WASHER 6.5X20X1.6T | 3 | 92022-125 | 3 | ||
| COLLAR,6.8X10X8.5 | 4 | 92027-129 | 1 | ||
| DAMPER RUBBER | 5 | 92075-076 | 1 | ||
| BOLT-UPSET 6X14 | 6 | 112B0614 | 5 | ||
| BRACKET,ELECTRIC | 7 | 11034-1071 | 1 | ||
| BAND,BATTERY | 8 | 92072-074 | 1 | ||
| CASE,BATTERY | 9 | 32097-041 | 1 | ||
| DAMPER RUBBER | 10 | 92075-078 | 7 | ||
| BOLT-SMALL-UPSET,8X16 | 11 | 115G0816 | 2 | ||
| WASHER SPRING 8MM | 12 | 461F0800 | 2 | ||
| BRACKET,BASE | 13 | 32129-008 | 1 | ||
| DAMPER RUBBER | 14 | 92075-280 | 1 | ||
| BRACKET,BATTERY CASE | 15 | 32093-010 | 1 | ||
| WASHER PLAIN 6MM | 16 | 411B0600 | 1 |
