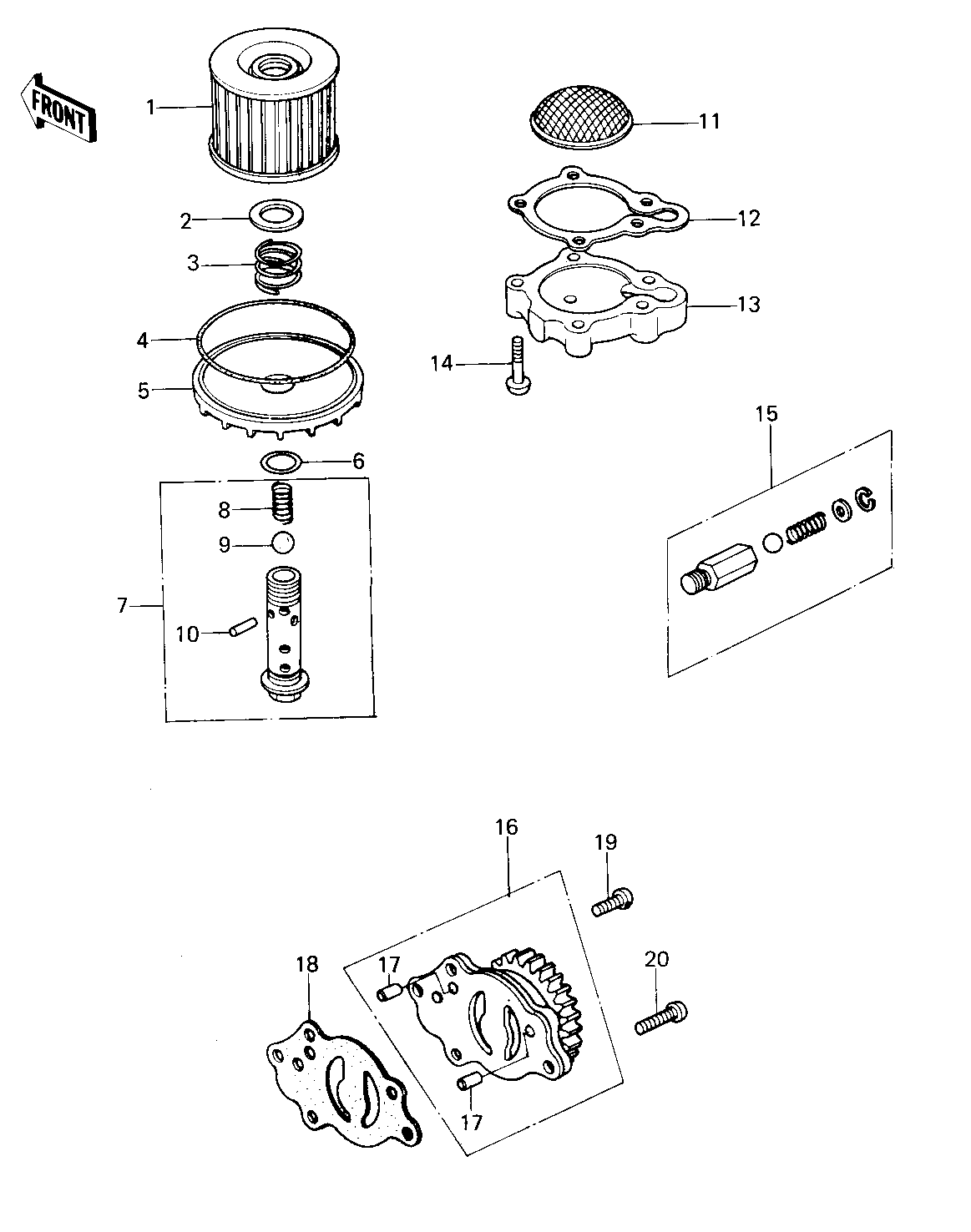

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| FILTER,OIL | 1 | 16099-003 | 1 | ||
| WASHER,20.5X30X1.0 | 2 | 92022-1012 | 1 | ||
| SPRING,OIL FILTER | 3 | 92081-1018 | 1 | ||
| "0" RING,90MM | 4 | 671B2590 | 1 | ||
| COVER,OIL FILTER | 5 | 16101-004 | 1 | ||
| "0" RING,16MM | 6 | 670B2016 | 1 | ||
| VALVE,OIL FILTER | 7 | 16126-1108 | 1 | ||
| SPRING | 8 | 92081-109 | 1 | ||
| BALL STEEL 3/8' | 9 | 600A1200 | 1 | ||
| SPRING PIN | 10 | 92043-111 | 1 | ||
| STRAINER,OIL | 11 | 16111-003 | 1 | ||
| GASKET,OIL FILTER COV | 12 | 11009-1874 | 1 | ||
| COVER,OIL STRAINER | 13 | 16101-003 | 1 | ||
| SCREW PAN HEAD 6X30 | 14 | 220B0630 | 5 | ||
| RELEAF VALVE ASSY | 15 | 16130-1001 | 1 | ||
| OIL PUMP ASSY | 16 | 16082-1001 | 1 | ||
| PIN,DOWEL,6X12 | 17 | 551A0612 | 2 | ||
| GASKET,OIL PUMP | 18 | 11009-1014 | 1 | ||
| SCREW PAN HEAD 6X10 | 19 | 220B0610 | 1 | ||
| SCREW PAN HEAD 6X25 | 20 | 220B0625 | 3 |
