Parts Diagrams |

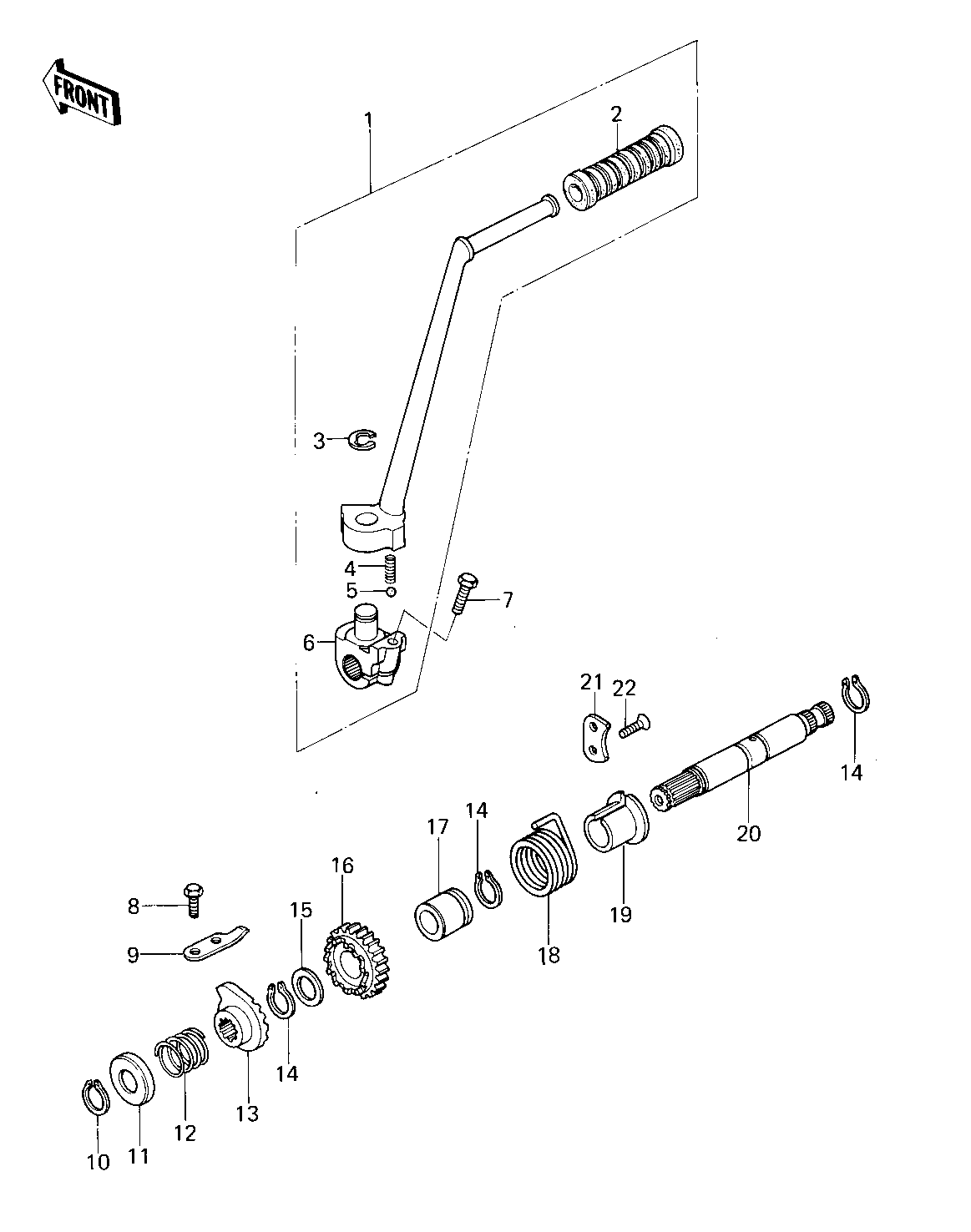

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| PEDAL ASSY,KICK | 1 | 13064-1002 | 1 | ||
| RUBBER KICK PEDAL | 2 | 13063-004 | 1 | ||
| CIRCLIP 9MM | 3 | 482K9000 | 1 | ||
| SPRING KICK PEDAL | 4 | 92081-020 | 1 | ||
| BALL STEEL 1/4' | 5 | 600A0800 | 1 | ||
| BOSS,KICK PEDAL | 6 | 13061-1001 | 1 | ||
| BOLT,FLANGED,8X35 | 7 | 92001-1577 | 1 | ||
| BOLT-UPSET | 8 | 112G0614 | 2 | ||
| STOPPER,KICKSTARTER | 9 | 13072-012 | 1 | ||
| CIRCLIP,19MM | 10 | 480J1900 | 1 | ||
| CAP,KICKSTARTER | 11 | 92102-008 | 1 | ||
| SPRING RATCHET | 12 | 92081-104 | 1 | ||
| RATCHET,KICK SHAFT | 13 | 13078-011 | 1 | ||
| CIRCLIP, 20MM | 14 | 480J2000 | 3 | ||
| WASHER THRUST | 15 | 92022-112 | 1 | ||
| GEAR,KICK,23T | 16 | 59051-1002 | 1 | ||
| BUSHING,KICK SHAFT | 17 | 92028-175 | 1 | ||
| SPRING,KICK RETURN | 18 | 92082-006 | 1 | ||
| GUIDE,KICK SPRING | 19 | 13070-009 | 1 | ||
| SHAFT,KICK | 20 | 13066-1001 | 1 | ||
| PLATE-DRUM LEV POSTON | 21 | 13169-007 | 1 | ||
| SCREW CNTSNK HD 6X16 | 22 | 221B0616 | 2 |
