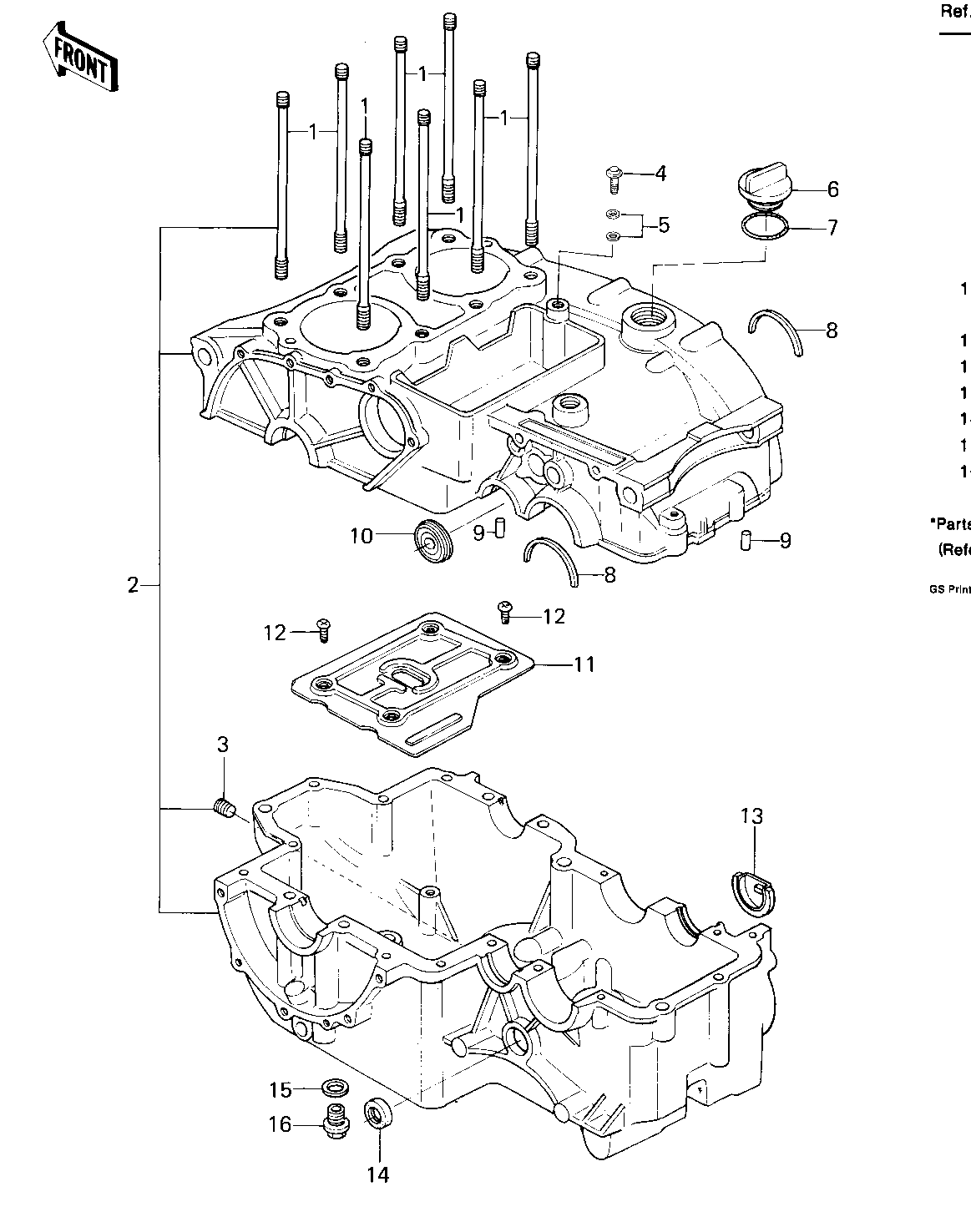

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| STUD,10X153 | 1* | 92004-062 | 1 | *PARTS MARKED INCLUDED IN CRAN | |
| STUD,10X153 | 1* | 92004-062 | 1 | *PARTS MARKED INCLUDED IN CRAN | |
| CRANKCASE SET | 2* | 14001-5010 | 1 | *PARTS MARKED INCLUDED IN CRAN | |
| CRANKCASE SET | 2* | 14001-5010 | 1 | *PARTS MARKED INCLUDED IN CRAN | |
| PLUG,OIL SWITCH | 3* | 92066-059 | 1 | *PARTS MARKED INCLUDED IN CRAN | |
| PLUG,OIL SWITCH | 3* | 92066-059 | 1 | *PARTS MARKED INCLUDED IN CRAN | |
| BOLT,BANJO,10X25 | 4 | 92001-1017 | 1 | ||
| GASKET,10X14.5X1.5 | 5 | 11009-1105 | 2 | ||
| PLUG,OIL FILLER | 6 | 16115-013 | 1 | ||
| "0" RING,31MM | 7 | 92055-049 | 1 | ||
| RING BEARING SETTING | 8 | 14013-004 | 2 | ||
| PIN DOWEL 6MM | 9 | 92042-016 | 2 | ||
| OIL SEAL,PUSH ROD | 10 | 92050-068 | 1 | CRANKCASE SPLIT TO REPLACE | |
| OIL SEAL,PUSH ROD | 10 | 92049-1041 | 1 | NO CRANKCASE SPLIT NECESSARY | |
| PLATE,CRANKCASE | 11 | 13169-1103 | 1 | ||
| SCREW PAN HEAD 6X12 | 12 | 220B0612 | 4 | ||
| RECEIVER,OIL | 13 | 13045-1001 | 1 | ||
| OIL SEAL,TB13225.5 | 14 | 92051-005 | 1 | ||
| GASKET,DRIN PLUG | 15 | 92065-097 | 1 | ||
| PLUG,OIL DRAIN,12X15 | 16 | 92066-1174 | 1 |
| STUD,10X153 | |
| REF # | 1* |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | *PARTS MARKED INCLUDED IN CRAN |
| STUD,10X153 | |
| REF # | 1* |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | *PARTS MARKED INCLUDED IN CRAN |
| CRANKCASE SET | |
| REF # | 2* |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | *PARTS MARKED INCLUDED IN CRAN |
| CRANKCASE SET | |
| REF # | 2* |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | *PARTS MARKED INCLUDED IN CRAN |
| PLUG,OIL SWITCH | |
| REF # | 3* |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | *PARTS MARKED INCLUDED IN CRAN |
| PLUG,OIL SWITCH | |
| REF # | 3* |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | *PARTS MARKED INCLUDED IN CRAN |
| BOLT,BANJO,10X25 | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,10X14.5X1.5 | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PLUG,OIL FILLER | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| "0" RING,31MM | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING BEARING SETTING | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PIN DOWEL 6MM | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| OIL SEAL,PUSH ROD | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | CRANKCASE SPLIT TO REPLACE |
| OIL SEAL,PUSH ROD | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | NO CRANKCASE SPLIT NECESSARY |
| PLATE,CRANKCASE | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 6X12 | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| RECEIVER,OIL | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| OIL SEAL,TB13225.5 | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,DRIN PLUG | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLUG,OIL DRAIN,12X15 | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
