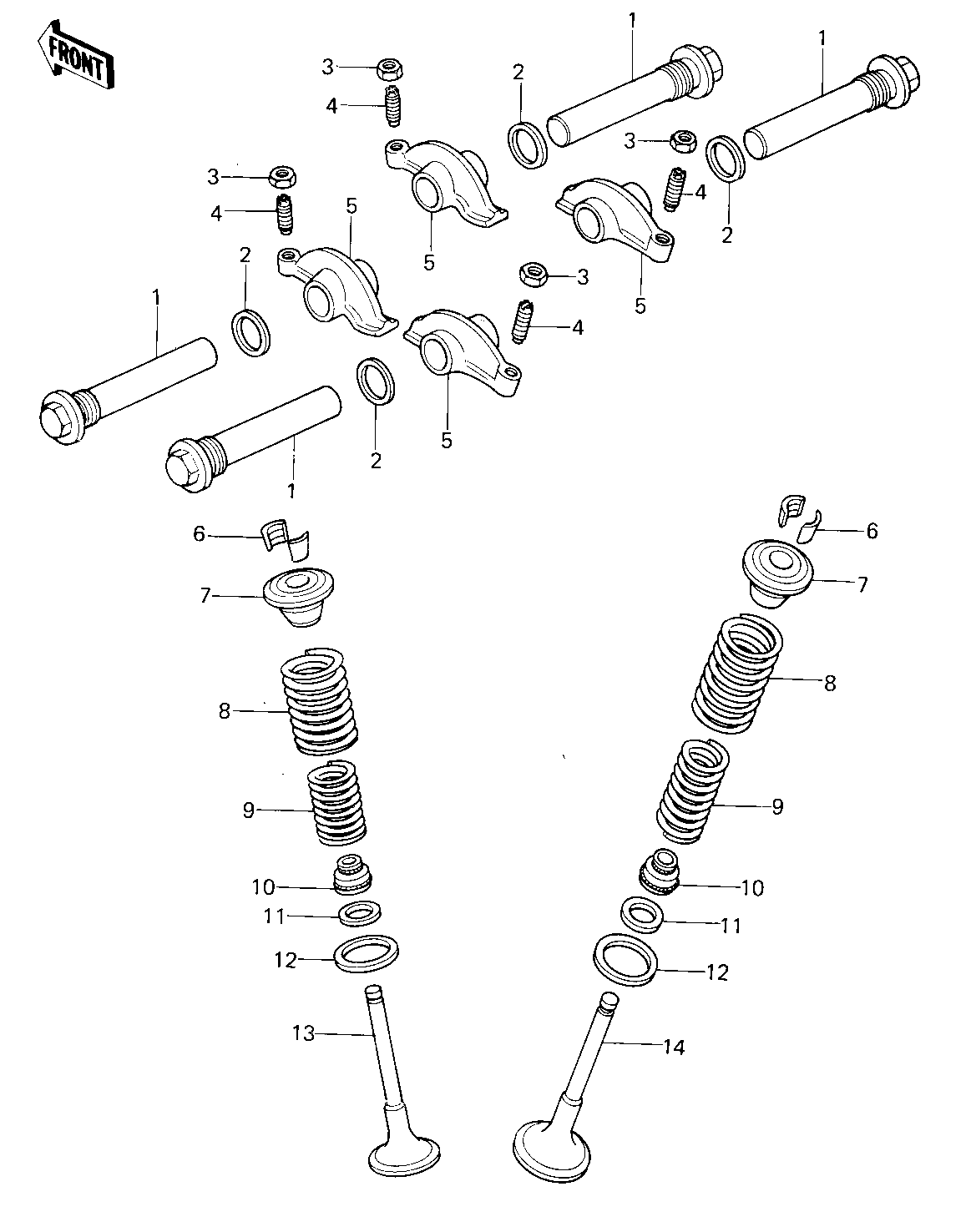

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SHAFT,ROCKER | 1 | 12020-1001 | 4 | ||
| GASKET,16X19.7X1.5 | 2 | 11009-1106 | 4 | ||
| NUT,ROCKER ARM FITTNG | 3 | 92016-061 | 4 | ||
| SCREW,ADJUSTING | 4 | 92009-1032 | 4 | ||
| ARM,ROCKER | 5 | 12016-1001 | 4 | ||
| SPLIT KEEPER | 6 | 12011-004 | 8 | ||
| RETAINER,VALVE SPRING | 7 | 12009-006 | 4 | ||
| SPRING,OUTER VALVE | 8 | 12007-013 | 4 | ||
| SPRING,INNER VALVE | 9 | 12007-014 | 4 | ||
| OIL SEAL,RV37129.5 | 10 | 92049-016 | 4 | ||
| SEAT,VLV INNER SPRING | 11 | 12010-006 | 4 | O.D = 23 | |
| SEAT,VLV OUTER SPRING | 12 | 12010-005 | 4 | O.D = 31 | |
| VALVE,EXHAUST | 13 | 12005-1001 | 2 | ||
| VALVE,INTAKE | 14 | 12004-1001 | 2 |
| SHAFT,ROCKER | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| GASKET,16X19.7X1.5 | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| NUT,ROCKER ARM FITTNG | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| SCREW,ADJUSTING | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| ARM,ROCKER | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| SPLIT KEEPER | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| RETAINER,VALVE SPRING | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| SPRING,OUTER VALVE | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| SPRING,INNER VALVE | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| OIL SEAL,RV37129.5 | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| SEAT,VLV INNER SPRING | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | O.D = 23 |
| SEAT,VLV OUTER SPRING | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | O.D = 31 |
| VALVE,EXHAUST | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| VALVE,INTAKE | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
