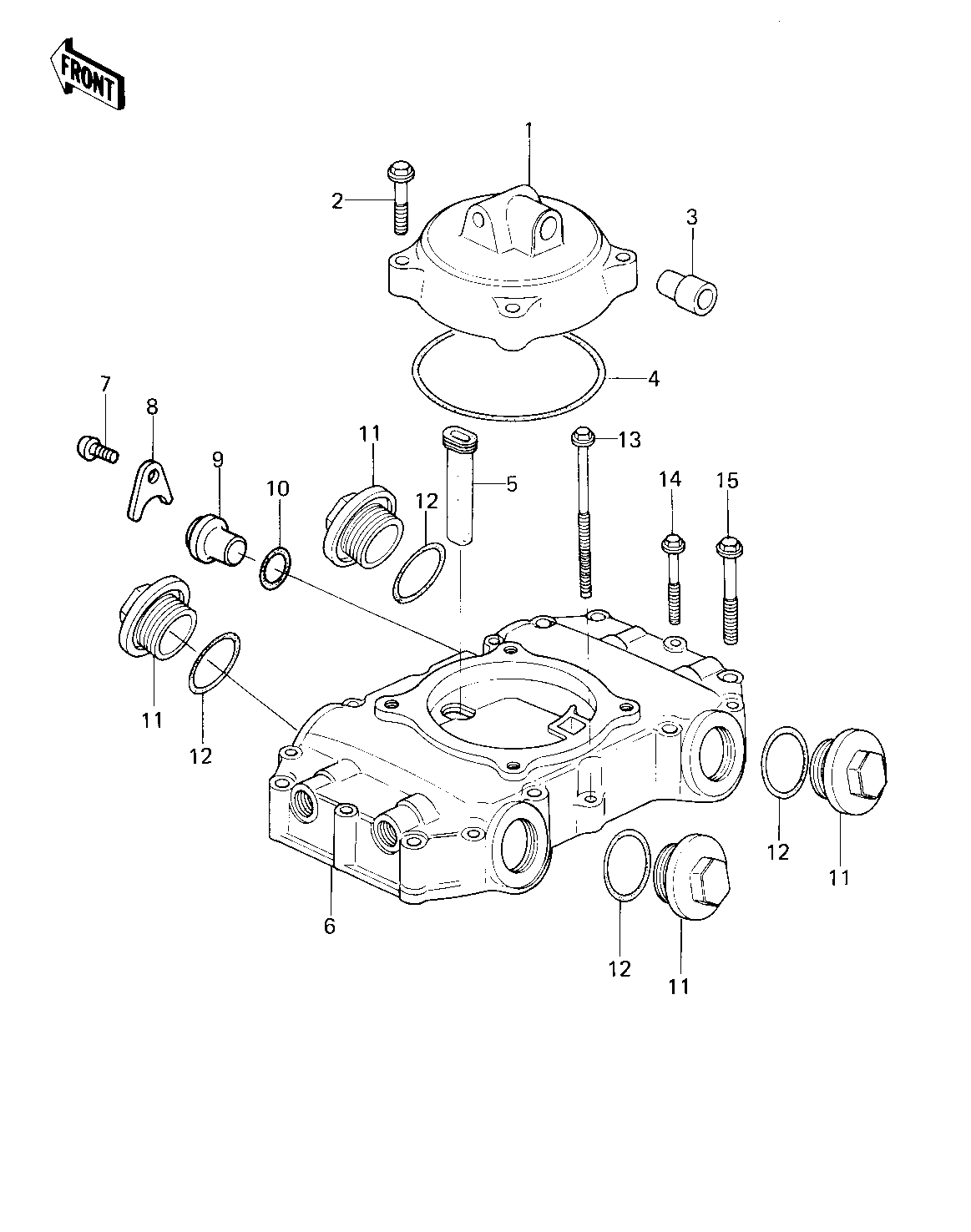

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BODY,BREATHER | 1 | 14070-1004 | 1 | ||
| BOLT,HEX HEAD,8X40 | 2 | 92002-1214 | 4 | ||
| BREATHER JOINT | 3 | 14067-006 | 1 | ||
| "0" RING,BREATHER | 4 | 92055-1020 | 1 | ||
| TUBE,BREATHER | 5 | 92059-1002 | 1 | ||
| CASE ROCKER | 6 | 11022-1001 | 1 | ||
| SCREW PAN HEAD 6X10 | 7 | 220B0610 | 1 | ||
| CLAMP,METER GEAR | 8 | 92037-1030 | 1 | ||
| PLUG,TACHOMETER | 9 | 92066-1009 | 1 | ||
| "O" RING,METER GEAR | 10 | 92055-1021 | 1 | ||
| PLUG,VLV ADJUST | 11 | 92066-1006 | 4 | ||
| "O" RING,VLV ADJUST | 12 | 92055-1005 | 4 | ||
| BOLT,6X105 | 13 | 92003-194 | 2 | ||
| BOLT,HEX HEAD,6X54 | 14 | 92003-110 | 6 | ||
| BOLT,HEX HEAD 8X63 | 15 | 92002-1215 | 8 |
