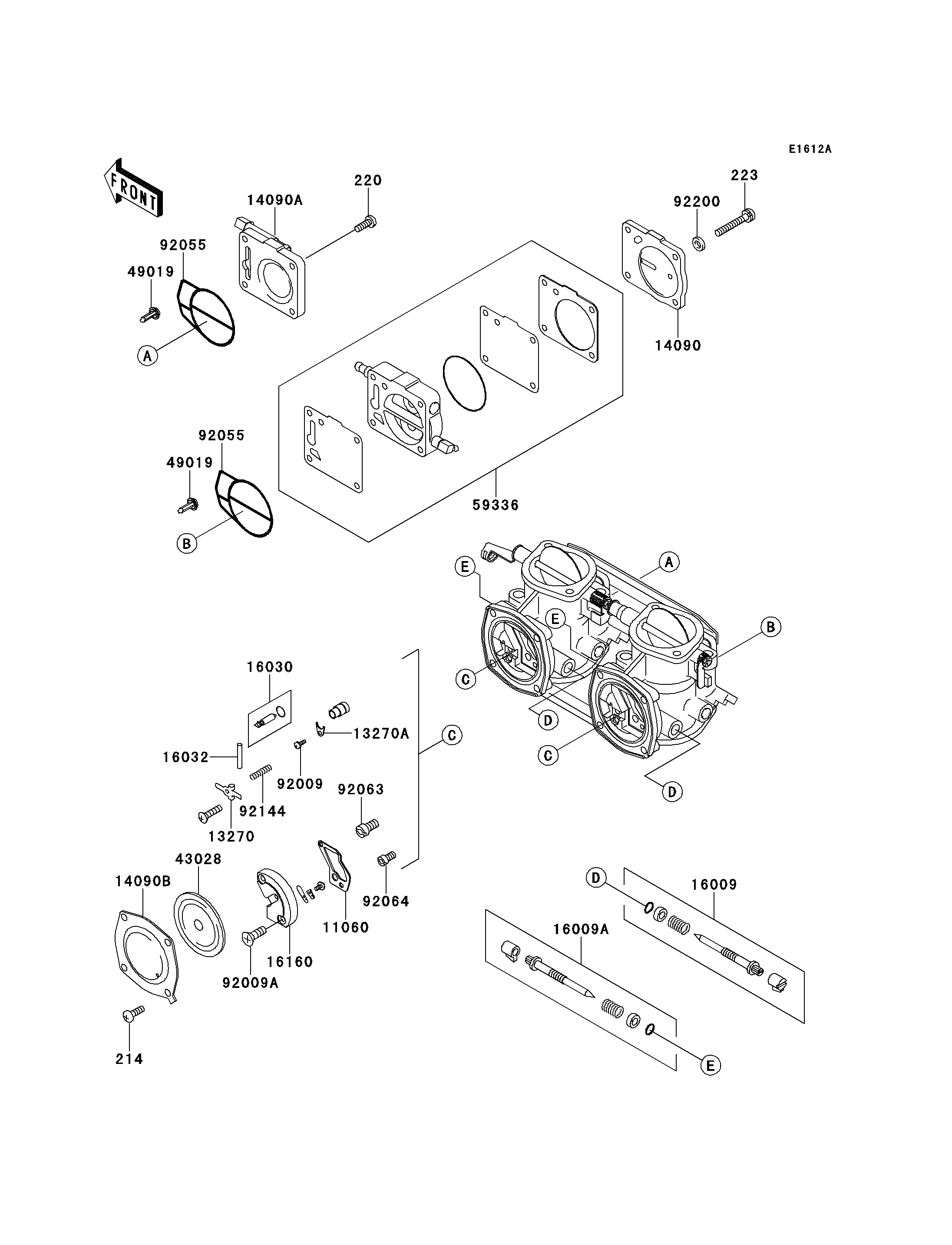

1996 750 SXi - Carburetor Parts(JS750-B2/B3)

DOWNLOAD PDF
SELECT A NEW PART
214
220
223
11060
13270
13270A
14090
14090A
14090B
16009
16009A
16030
16032
16160
43028
49019
49019
59336
92009
92009A
92055
92055
92063
92064
92144
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SCREW-PAN+- 214 214R0510 8
SCREW-PAN-CROS 220 220R0516 4
SCREW-PAN-WS-CROS 223 223R0535 4
GASKET 11060 11060-3774 2
PLATE 13270 13270-3828 2
PLATE 13270A 13270-3829 2
COVER 14090 14090-3783 1
COVER 14090A 14090-3784 1
COVER 14090B 14090-3785 2
NEEDLE-JET,SLOW 16009 16009-3717 2
NEEDLE-JET,MAIN 16009A 16009-3718 2
VALVE-FLOAT 16030 16030-3703 2
PIN,FLOAT 16032 16032-006 2
BODY 16160 16160-3737 2
DIAPHRAGM 43028 43028-3709 2
FILTER-FUEL 49019 49019-3713 2
CASE-PUMP,DIAPHRAGM 59336 59336-3712 1
SCREW,3X7 92009 92009-3821 2
SCREW,4X14 92009A 92009-3822 4
RING-O 92055 92055-3745 2
JET-MAIN,#147.5 92063 92063-3715 2
JET-PILOT,#67.5 92064 92064-3701 2
SPRING 92144 92144-3756 2
WASHER,5.3X10X1.0 92200 92200-3745 4
