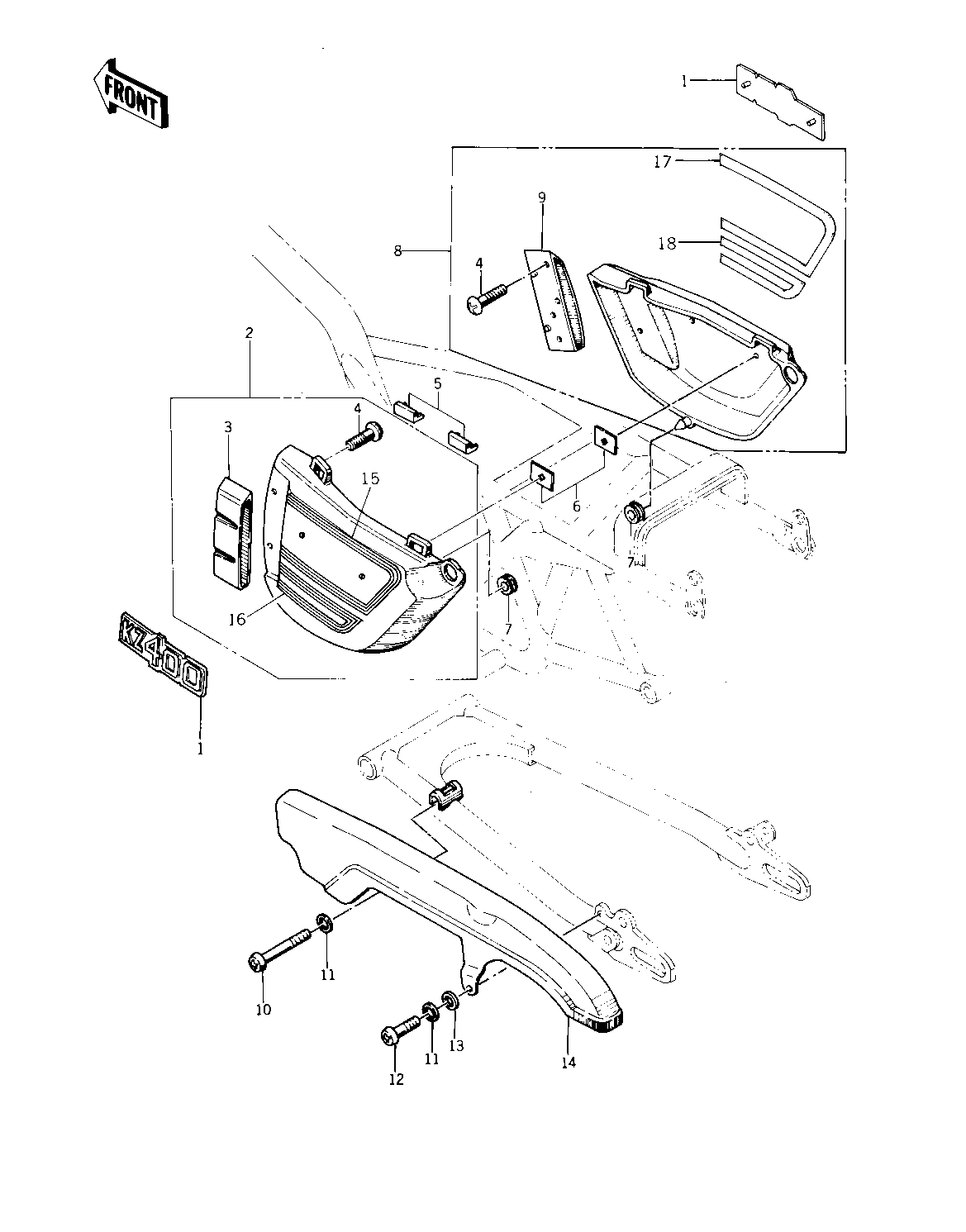

1978 KZ400-A2 - SIDE COVERS/CHAIN COVER
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| EMBLEM,SIDE COVER | 1 | 56018-231 | |||
| COVER,SIDE L.H. | 2 | 36001-053-8D | |||
| TRIMING,L.H SIDE COV | 3 | 36029-004 | |||
| SCREW,TAPPING | 4 | 92008-009 | |||
| PROTECTOR SIDE COVER | 5 | 31082-005 | |||
| NUT,LOCK,3MM | 6 | 92018-005 | |||
| GROMMET | 7 | 92071-056 | |||
| COVER,RH SIDE,C.COPPR | 8 | 36007-048-8D | |||
| TRIMING,R.H SIDE COV | 9 | 36029-003 | |||
| SCREW PAN HEAD 6X60 | 10 | 220E0660 | |||
| WASHER SPRING 6MM | 11 | 461F0600 | |||
| SCREW PAN HEAD 6X12 | 12 | 220E0612 | |||
| WASHER-PLAIN,6MM | 13 | 411D0600 | |||
| CASE-CHAIN,BLACK | 14 | 36014-063-10 | BLACK | ||
| DECAL,LH SIDECOVER UP | 15 | 56029-022 | |||
| DECAL,L SDCOVER LOWER | 16 | 56029-023 | |||
| DECAL,RH SIDECOVER UP | 17 | 56029-192 | |||
| DECAL,R.SDCOVER LOWER | 18 | 56029-193 |
