Parts Diagrams |

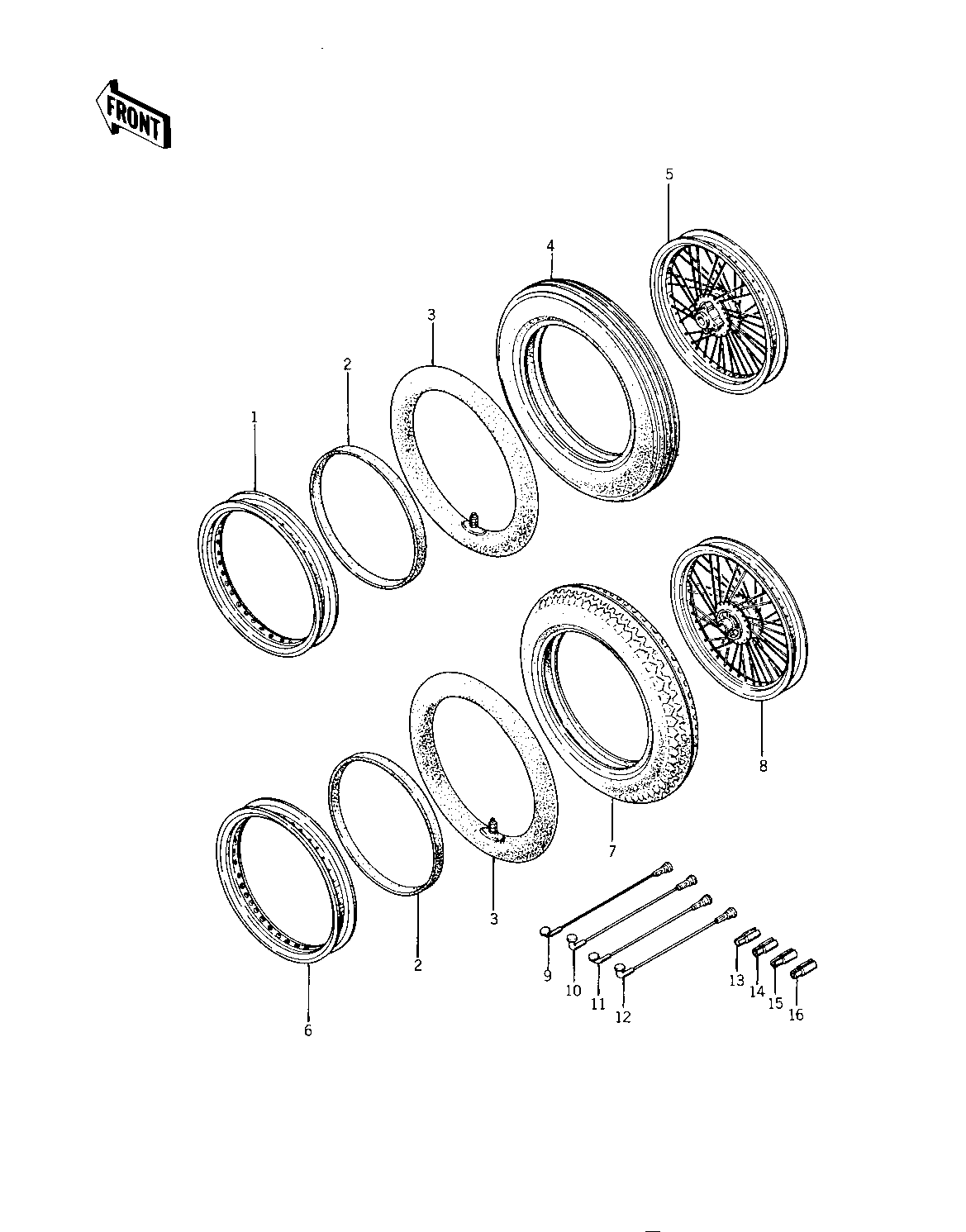

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| RIM.1.85BX18 | 1 | 41025-075 | |||
| BAND,RIM,4.00/5.10-18 | 2 | 41023-1006 | |||
| BAND,RIM,4.00/5.10-18 | 2 | 41023-1006 | |||
| TUBE 300/325/360-18 | 3 | 41022-028 | |||
| TIRE 325S-18 Y984C F | 4 | 41002-1011 | |||
| WHEEL ASSY,FRONT | 5 | 41074-045 | |||
| RIM,1.85BX18W | 6 | 41025-053 | |||
| TIRE 350S-18 Y987C R | 7 | 41002-1012 | |||
| WHEEL ASSY,REAR | 8 | 42048-031 | |||
| SPOKE-ASY,FR INNER | 9 | 41027-054 | 102 X 174.5 MM | ||
| SPOKE-ASY,FR OUTER | 10 | 41028-054 | 83 X 174 MM | ||
| SPOKE-ASY,RR INNER | 11 | 41027-046 | 104 X 148 MM | ||
| SPOKE-ASY,RR OUTER | 12 | 41028-045 | 85 X 147.5 MM | ||
| WEIGHT,BALANCE,10G | 13 | 41075-1007 | |||
| WEIGHT,BALANCE,10G | 13 | 41075-1007 | |||
| WEIGHT,BALANCE,20G | 14 | 41075-1008 | |||
| WEIGHT,BALANCE,20G | 14 | 41075-1008 | |||
| WEIGHT,BALANCE,30G | 15 | 41075-1009 | |||
| WEIGHT,BALANCE,30G | 15 | 41075-1009 | |||
| WEIGHT,BALANCE,5G | 16 | 41075-1010 | |||
| WEIGHT,BALANCE,5G | 16 | 41075-1010 |
| RIM.1.85BX18 | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| BAND,RIM,4.00/5.10-18 | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| BAND,RIM,4.00/5.10-18 | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| TUBE 300/325/360-18 | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| TIRE 325S-18 Y984C F | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| WHEEL ASSY,FRONT | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| RIM,1.85BX18W | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| TIRE 350S-18 Y987C R | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| WHEEL ASSY,REAR | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| SPOKE-ASY,FR INNER | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | 102 X 174.5 MM |
| SPOKE-ASY,FR OUTER | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | 83 X 174 MM |
| SPOKE-ASY,RR INNER | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | 104 X 148 MM |
| SPOKE-ASY,RR OUTER | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | 85 X 147.5 MM |
| WEIGHT,BALANCE,10G | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| WEIGHT,BALANCE,10G | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| WEIGHT,BALANCE,20G | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| WEIGHT,BALANCE,20G | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| WEIGHT,BALANCE,30G | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| WEIGHT,BALANCE,30G | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| WEIGHT,BALANCE,5G | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| WEIGHT,BALANCE,5G | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
