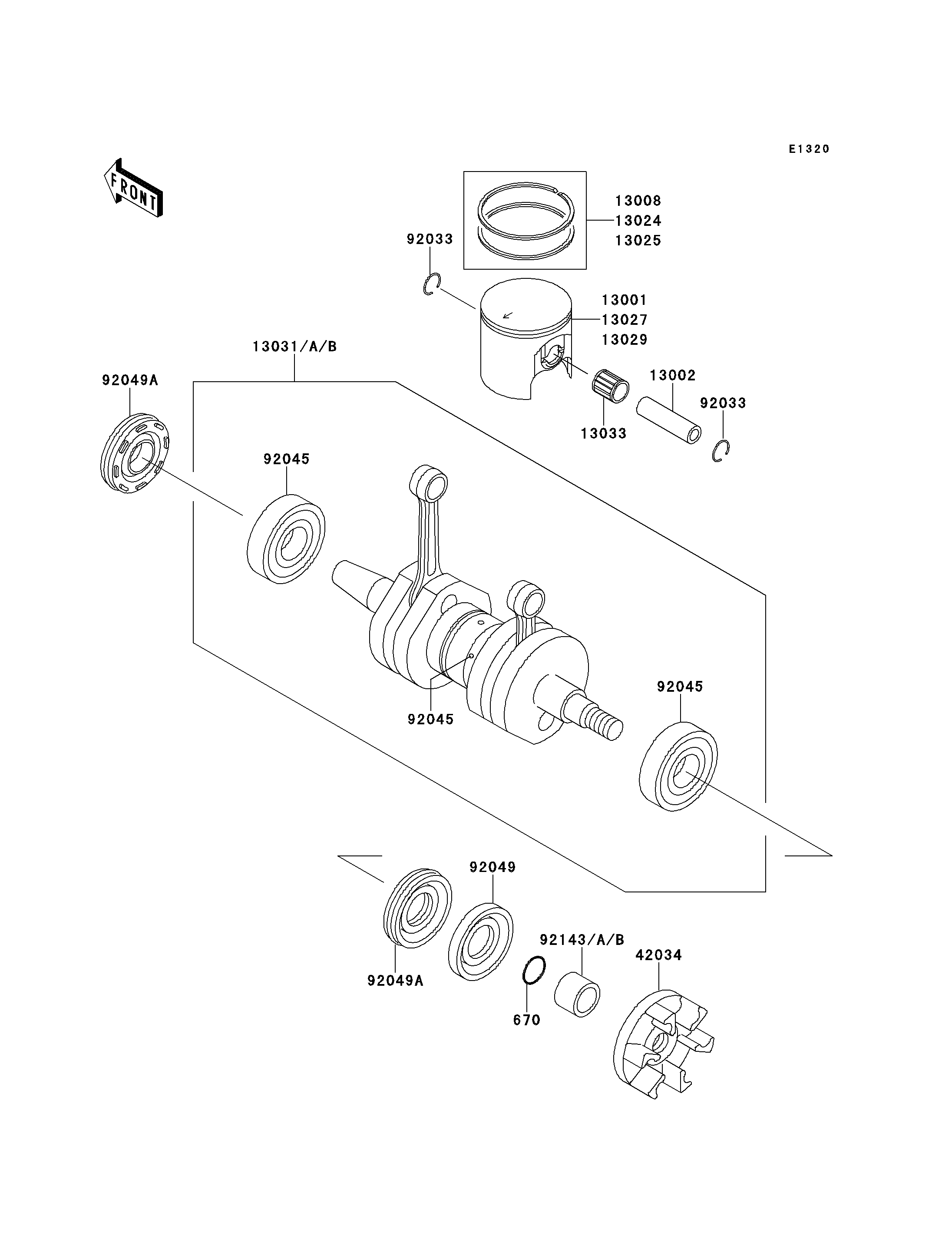

1996 750 SXi - Crankshaft/Piston(s)

DOWNLOAD PDF
SELECT A NEW PART
670
13001
13002
13008
13024
13025
13027
13029
13031A
13033
42034
92033
92033
92045
92045
92045
92049
92049A
92049A
92143A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
O RING,16MM 670 670B2016 1
PISTON-ENGINE,STD 13001 13001-3719 2
PIN-PISTON 13002 13002-3706 2
RING-SET-PISTON,STD 13008 13008-3708 2
RING-SET-PISTON LL,O/S 1.00 13024 13024-3706 AR
RING-SET-PISTON L,O/S 0.50 13025 13025-3706 AR
PISTON-ENGINE LL,O/S 1.00 13027 13027-3711 AR
PISTON-ENGINE L,O/S 0.50 13029 13029-3711 AR
CRANKSHAFT-COMP 13031A 13031-3730 1
BEARING-SMALL END 13033 13033-3703 2
COUPLING 42034 42034-3707 1
RING-SNAP 92033 92033-3721 4
BEARING-BALL 92045 92045-3714 3
SEAL-OIL,S30726 92049 92049-3706 1
SEAL-OIL,FWJ7307210ZS 92049A 92049-3713 2
COLLAR 92143A 92143-3758 1
