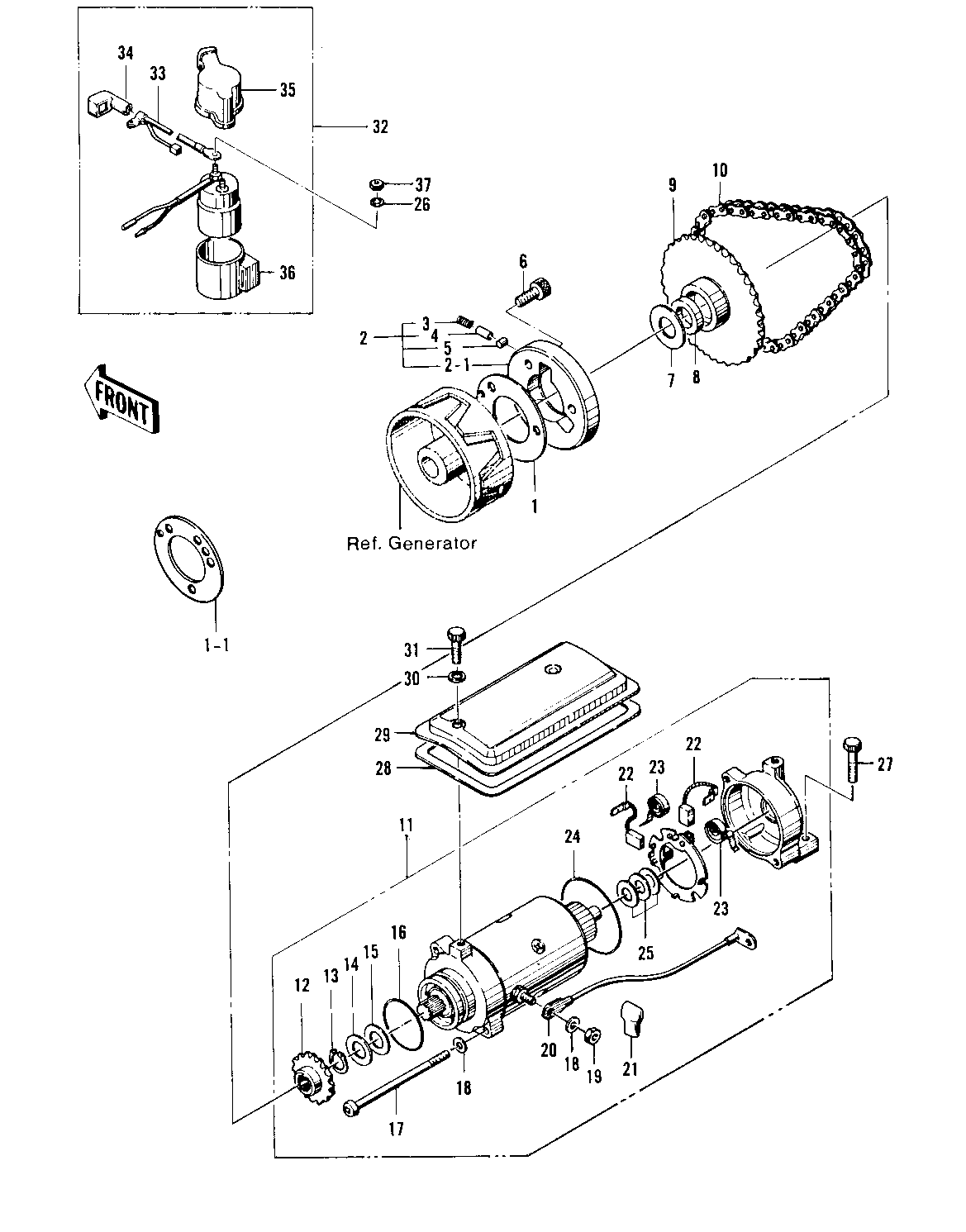

1978 KZ400-A2 - STARTER MOTOR/STARTER CLUTCH

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
WASHER,FREE WHEEL 1 92026-082 KZ400-A1
PLATE,CLUTCH STARTER 1-1 92026-112 KZ400-A2
CLUTCH ASSY,STARTER 2 13193-1001
CLUTCH ASSY,STARTER 2-1 13193-1001
SPRING 3 92081-110
PIN 4 92043-087
ROLLER 5 92122-004
BOLT 6 120P0816
WASHER,THRUST 7 92026-100
OIL SEAL 8 92050-066
GEAR STARTER CLUTCH 9 21170-001
CHAIN,DYNAMO 10 92057-1009
CHAIN,DYNAMO 10 92057-1009
MOTOR ASSY,STARTER 11 21163-1011
MOTOR ASSY,STARTER 11 21163-1011
SPROCKET STARTNG MOT 12 21053-002
CIRCLIP 14MM 13 480J1400
WASHER,PLAIN,14MM 14 21025-008
WASHER PLAIN 14MM 15 21025-009
"0" RING,42.8MM 16 21027-005
SCREW PAN HEAD 6X110 17 220B06110
WASHER SPRING 6MM 18 461F0600
NUT 6MM 19 312B0600
WIRE STRTER MOT LEAD 20 26010-035
CAP,STARTING MOTOR 21 21017-020
BRUSH CARBON 22 21039-004
SPRING CARBON BRUSH 23 21040-004
"0" RING,62MM 24 21027-006
WASHER,PLAIN,9MM 25 21025-007
WASHER SPRING 6MM 26 461F0600
BOLT-UPSET 27 112G0625
GASKET START MOT COV 28 21166-002
COVER STARTER MOTOR 29 21165-002
WASHER,PLAIN,6MM 30 410D0600
BOLT-FLANGED-SMALL 31 132E0612
SWITCH ASSY,MAGNETIC 32 21164-006
WIRE,LEAD,MAG SWITCH 33 26011-1027
CAP,MAG SWTCH TERMNL 34 21017-021
COVER MAGNETIC SWITCH 35 21141-004
DAMPER MAG SWITCH SHK 36 21064-002
NUT 6MM 37 311B0600
