Parts Diagrams |

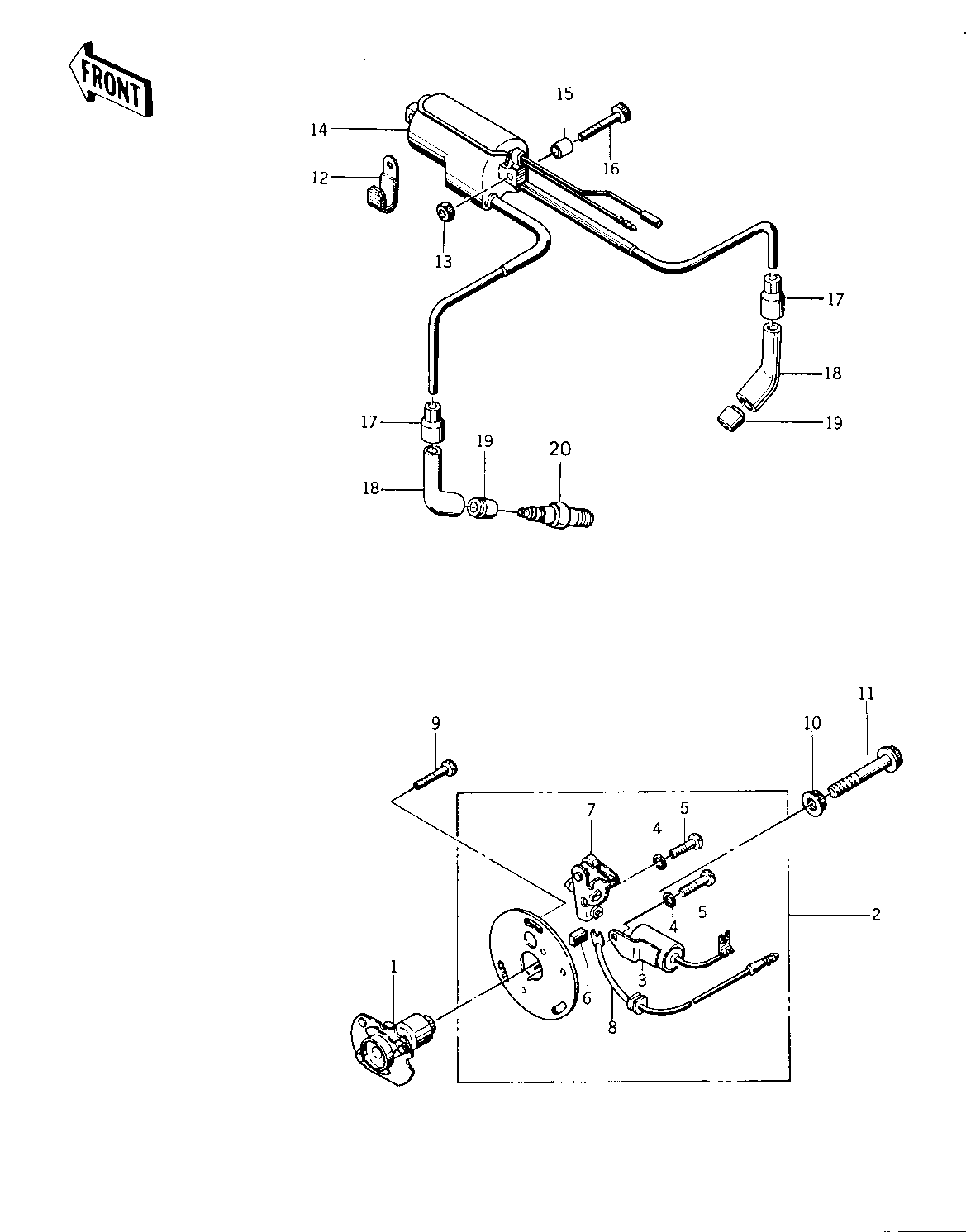

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| ADVANCER ASSY TIMING | 1 | 21148-006 | KZ400-A1 | ||
| ADVANCER,AUTOMATIC TI | 1 | 21148-014 | KZ400-A2 | ||
| BREAKER ASSY CONTACT | 2 | 21135-009 | |||
| CONDENSER | 3 | 21013-034 | |||
| WASHER SPRING 4MM | 4 | 461F0400 | |||
| SCREW PAN HEAD 4X6 | 5 | 220B0406 | |||
| FELT OIL | 6 | 21019-005 | |||
| BREAKER,CONTACT | 7 | 21008-025 | |||
| WIRING HARNESS BRKR | 8 | 21029-029 | |||
| SCREW PAN HEAD 5X12 | 9 | 220B0512 | |||
| WASHER,SPARK ADVANCER | 10 | 92022-244 | |||
| BOLT-8X63 | 11 | 92001-1397 | |||
| BOLT-8X63 | 11 | 92001-1397 | |||
| CLAMP,WIRING HARNESS | 12 | 21126-008 | KZ400-A1 | ||
| CLAMP,WIRING HARNESS | 12 | 21126-008 | KZ400-A2 | ||
| NUT 6MM | 13 | 311B0600 | USE WITH 21121-075 | ||
| COIL-IGNITION | 14 | 21121-1174 | KZ400-A1 | ||
| COIL-IGNITION | 14 | 21121-1174 | KZ400-A2 | ||
| COLLAR,IGNITION COIL | 15 | 92027-276 | KZ400-A1 | ||
| COLLAR,IGNITION COIL | 15 | 92027-276 | KZ400-A2 | ||
| BOLT, IGNITION COIL | 16 | 92003-170 | |||
| GROMMET,SPARK PLG CAP | 17 | 21132-005 | |||
| CAP-SPARK PLUG,RTFM20 | 18 | 21130-1007 | |||
| GROMMET-PLUG CAP,A | 19 | 21131-004 | |||
| SPARK PLUG B8ES | 20 | B8ES | |||
| SPARK PLUG W24ES-U | 20 | W24ESU |
| ADVANCER ASSY TIMING | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | KZ400-A1 |
| ADVANCER,AUTOMATIC TI | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | KZ400-A2 |
| BREAKER ASSY CONTACT | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| CONDENSER | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 4MM | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 4X6 | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| FELT OIL | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| BREAKER,CONTACT | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| WIRING HARNESS BRKR | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 5X12 | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| WASHER,SPARK ADVANCER | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| BOLT-8X63 | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| BOLT-8X63 | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| CLAMP,WIRING HARNESS | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | KZ400-A1 |
| CLAMP,WIRING HARNESS | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | KZ400-A2 |
| NUT 6MM | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | USE WITH 21121-075 |
| COIL-IGNITION | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | KZ400-A1 |
| COIL-IGNITION | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | KZ400-A2 |
| COLLAR,IGNITION COIL | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | KZ400-A1 |
| COLLAR,IGNITION COIL | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | KZ400-A2 |
| BOLT, IGNITION COIL | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| GROMMET,SPARK PLG CAP | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| CAP-SPARK PLUG,RTFM20 | |
| REF # | 18 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| GROMMET-PLUG CAP,A | |
| REF # | 19 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| SPARK PLUG B8ES | |
| REF # | 20 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| SPARK PLUG W24ES-U | |
| REF # | 20 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
