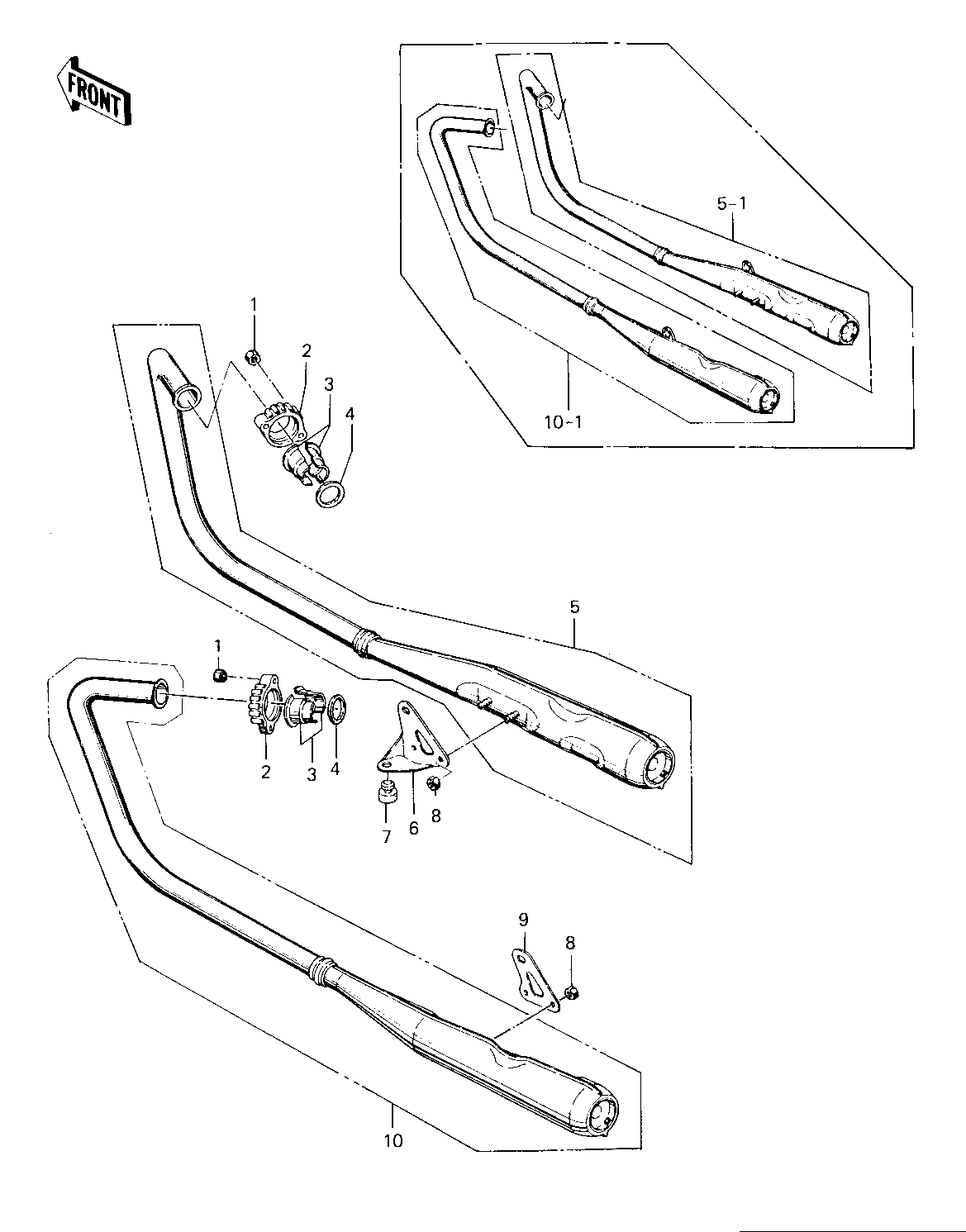

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| NUT,LOCK 6MM | 1 | 92017-014 | |||
| HOLDER,EX PIPE,BARREL | 2 | 18069-056-2H | BARREL | ||
| COLLAR,EXHAUST PIPE | 3 | 92027-224 | |||
| GASKET,EXHAUST PIPE | 4 | 11060-1242 | |||
| MUFFLER ASSY,R.H. | 5 | 18001-223 | KZ400-A1 | ||
| MUFFLER ASSY,R.H. | 5-1 | 18001-225 | KZ400-A2 | ||
| BRACKET,METER,R.H | 6 | 18024-024 | |||
| DAMPER RUBB MAIN STAD | 7 | 92075-015 | |||
| NUT,LOCK,8MM | 8 | 92015-1124 | KZ400-A1 | ||
| NUT,LOCK,8MM | 8 | 92015-1124 | KZ400-A1 | ||
| NUT,LOCK,8MM | 8 | 92017-013 | KZ400-A2 | ||
| BRACKET,MUFFLER,L.H | 9 | 18024-025 | |||
| MUFFLER ASSY,L.H | 10 | 18001-222 | KZ400-A1 | ||
| MUFFLER ASSY,L.H. | 10-1 | 18001-224 | KZ400-A2 |
| NUT,LOCK 6MM | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| HOLDER,EX PIPE,BARREL | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | BARREL |
| COLLAR,EXHAUST PIPE | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| GASKET,EXHAUST PIPE | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| MUFFLER ASSY,R.H. | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | KZ400-A1 |
| MUFFLER ASSY,R.H. | |
| REF # | 5-1 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | KZ400-A2 |
| BRACKET,METER,R.H | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| DAMPER RUBB MAIN STAD | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| NUT,LOCK,8MM | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | KZ400-A1 |
| NUT,LOCK,8MM | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | KZ400-A1 |
| NUT,LOCK,8MM | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | KZ400-A2 |
| BRACKET,MUFFLER,L.H | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| MUFFLER ASSY,L.H | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | KZ400-A1 |
| MUFFLER ASSY,L.H. | |
| REF # | 10-1 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | KZ400-A2 |
