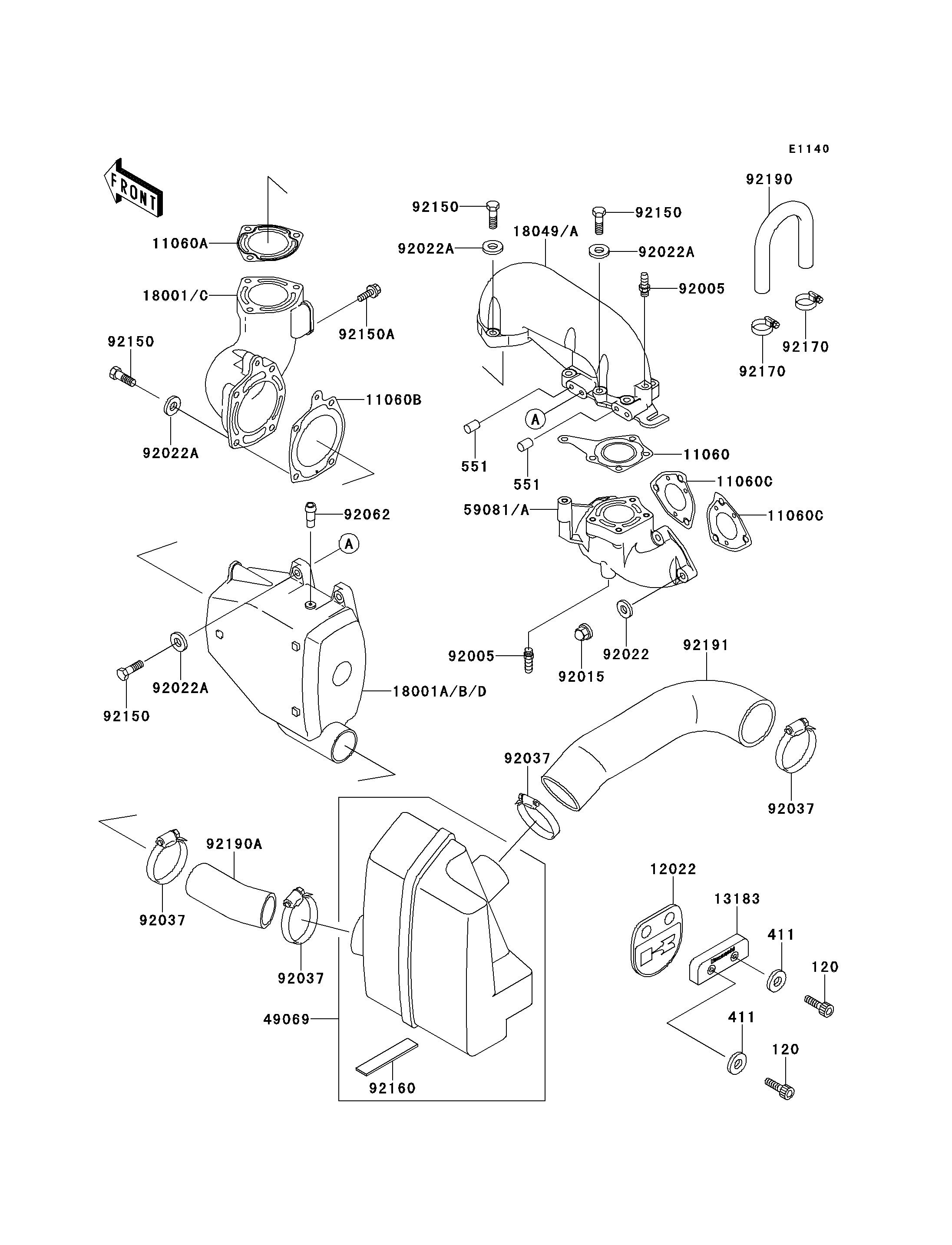

1996 750 SXi - Muffler(s)

DOWNLOAD PDF
SELECT A NEW PART
120
120
411
411
551
551
11060
11060A
11060B
11060C
11060C
12022
13183
18001B
18001C
18049A
49069
59081A
92005
92005
92015
92022
92022A
92022A
92022A
92022A
92037
92037
92037
92037
92062
92150
92150
92150
92150
92150A
92160
92170
92170
92190
92190A
92191
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,6X20 120 120R0620 2
WASHER-PLAIN,6MM 411 411S0600 2
PIN-DOWEL 551 551R0812 2
GASKET,EXHAUST 11060 11060-3712 1
GASKET,MUFFLER,FR 11060A 11060-3713 1
GASKET,MUFFLER CHAMBER 11060B 11060-3714 1
GASKET,EXHAUST MANIFOLD 11060C 11060-3759 2
VALVE-REED 12022 12022-3706 1
PLATE 13183 13183-3817 1
MUFFLER 18001B 18001-3763 1
MUFFLER,FR 18001C 18001-3764 1
PIPE-EXHAUST 18049A 18049-3762 1
MUFFLER-ASSY,WATER 49069 49069-3705 1
MANIFOLD-EXHAUST 59081A 59081-3723 1
FITTING,HOSE 92005 92005-3712 2
NUT,CAP,8MM 92015 92015-1371 6
WASHER,8.2X18X1.5 92022 92022-1964 6
WASHER,8.2X18X1.5 92022A 92022-3743 16
CLAMP 92037 92037-3009 4
NOZZLE 92062 92062-3705 1
BOLT,8X35 92150 92150-3833 14
BOLT,8X16 92150A 92150-3846 2
DAMPER 92160 92160-3793 1
CLAMP 92170 92170-3718 2
TUBE,HEAD-EXHAUST PIPE 92190 92190-3829 1
TUBE 92190A 92190-3978 1
TUBE,WATER MUFFLER-BULKHEAD 92191 92191-3721 1
