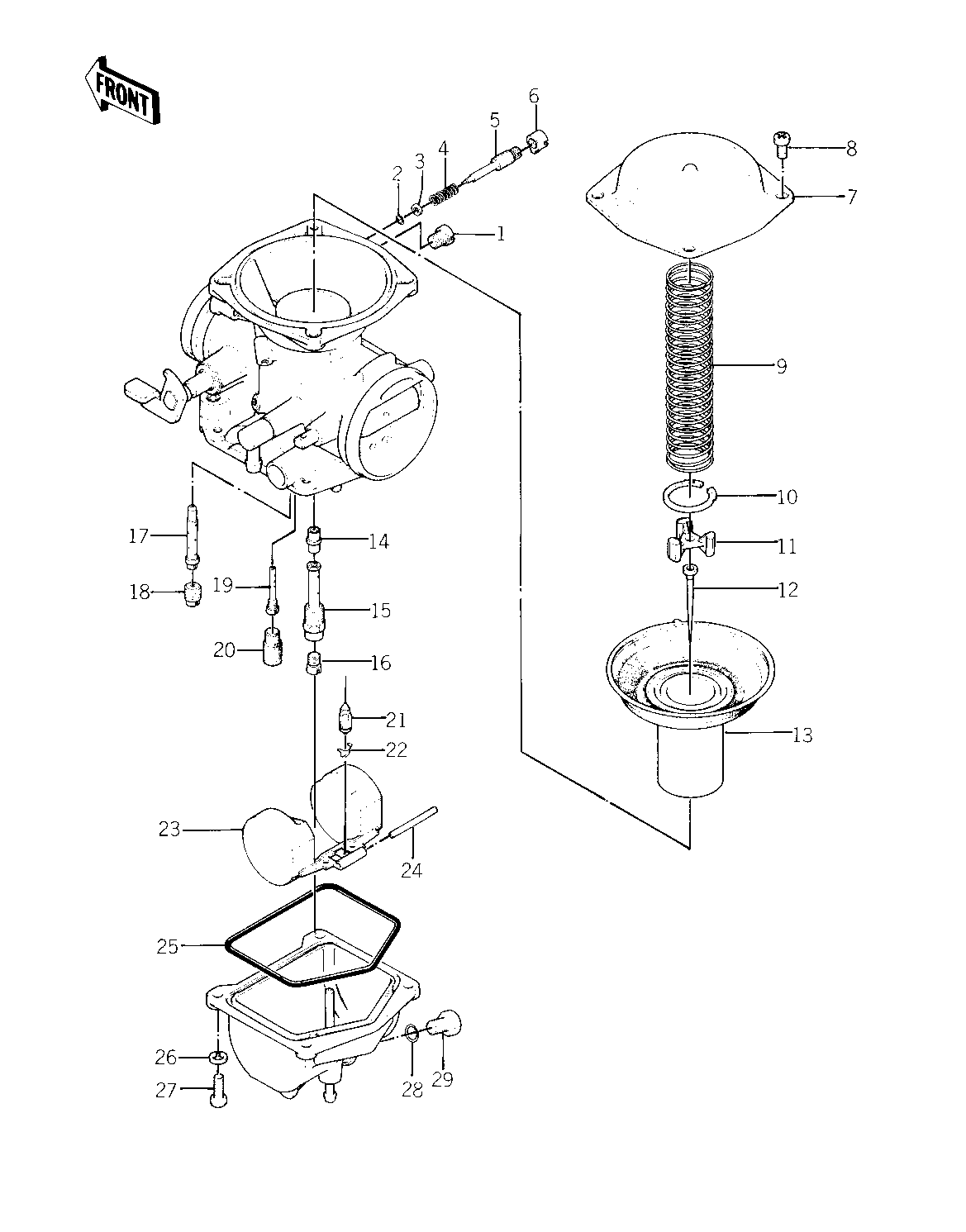

1978 KZ400-A2 - CARBURETOR PARTS (KZ400-A2)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SCREW,PLUG 1 92009-1004
O RING,PILOT ADJ 2 92055-1002
WASHER,PLAIN 3 92022-1003
SPRING,PIROT ADJ SCRW 4 92081-1002
SCREW,PILOT ADJUST 5 16014-1001
CAP,JET NEEDLE 6 11012-3727
TOP,MIXING CHAMBER 7 16005-1001
SCREW,PAN HEAD, 4X8 8 22080408A
SPRING 9 92081-1001
CIRCLIP 10 92037-1005
COLLAR 11 16007-1001
JET NEEDLES,#003301 12 16009-1002
VACUUM,VALVE 13 16126-1042
NEEDLE JET 14 16017-1001
HOLDER,NEEDLE JET 15 16047-007
MAIN JET,2ND,#95 16 92063-1001 S.T.D
MAIN JET,2ND,#90 16 92063-1003 OPTION
MAIN JET,#92,2ND 16 92063-1004 OPTION
MAIN JET,#2ND,#98 16 92063-1005 OPTION
MAIN JET,2ND,#100 16 92063-1006 OPTION
NOZZLE,MAIN 17 92062-1001
MAINJET,PRIMARY,#70 18 92063-1002 S.T.D.
PILOT JET,#35 19 92064-1001
CAP,RUBBER 20 16012-1001
FLOAT VALVE 21 16030-1007
CLIP,FLOAT VALVE 22 16044-007
FLOAT 23 16031-1001
FLOAT PIN 24 92043-1002
"O" RING,FLOAT BALL 25 16019-024
WASHER SPRING 4MM 26 461F0400
SCREW-PAN-CRSOSS,4X12 27 220B0412
"O" RING,DRAIN SCREW 28 92055-1003
SCREW,DRAIN 29 92009-1003
