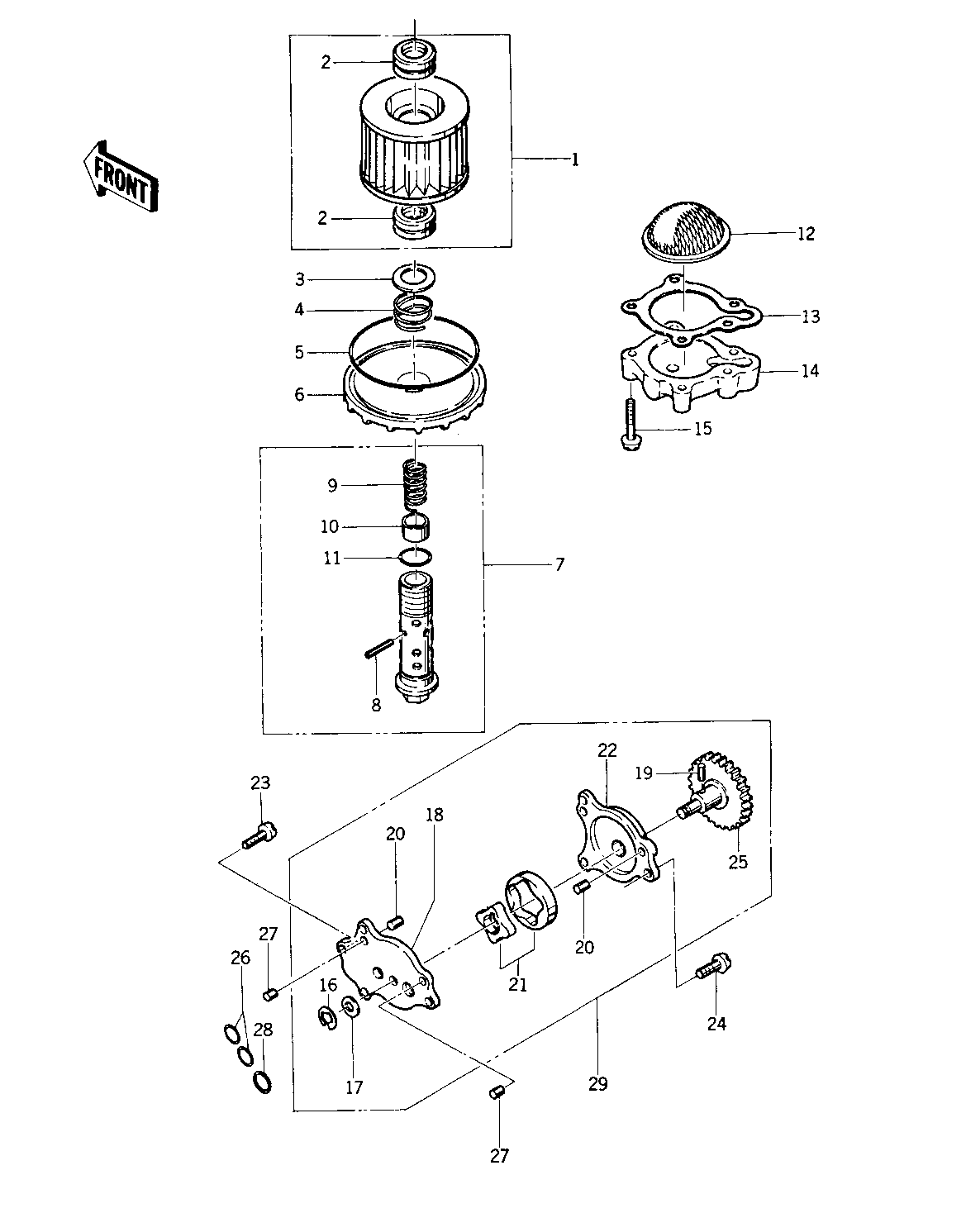

1978 KZ400-A2 - OIL PUMP/OIL FILTER

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FILTER,OIL 1 16099-003
GROMMET,OIL FILTER 2 16135-010
SHIM-KICK SHAFT 3 92022-144
SPRING,OIL FILTER 4 92081-1018
SPRING,OIL FILTER 4 92081-1018
"0" RING,90MM 5 671B2590
COVER,OIL FILTER 6 16101-004
SLOW JET,#40 7 16158-001
VALVE,OIL FILTER 7 16126-1108
SPRING PIN 8 92043-111
SPRING,PISTON 9 92081-133
PISTON 10 92136-001
"0" RING,16MM 11 670B2016
STRAINER,OIL 12 16111-003
GASKET,OIL FILTER COV 13 11009-1874
COVER,OIL STRAINER 14 16101-003
SCREW PAN HEAD 6X30 15 220B0630
CIRCLIP 5MM 16 482K5000
WASHER,THRUST 17 92026-098
COVER,OIL PUMP 18 16142-002
PIN,DOWEL,4X8 19 551A0408
PIN,DOWEL,6X8 20 551A0608
ROTOR ASSY,OIL PUMP 21 16154-001
BODY,OIL PUMP 22 16141-002
SCREW PAN HEAD 6X18 23 220B0618
SCREW PAN HEAD 6X25 24 220B0625
GEAR,OIL PUMP DRIVEN 25 16085-023
"O" RING,11.5MM 26 92055-072
PIN,DOWEL,6X8 27 551A0608
"O" RING,13.5MM 28 92055-073
OIL PUMP ASSY 29 16083-004
