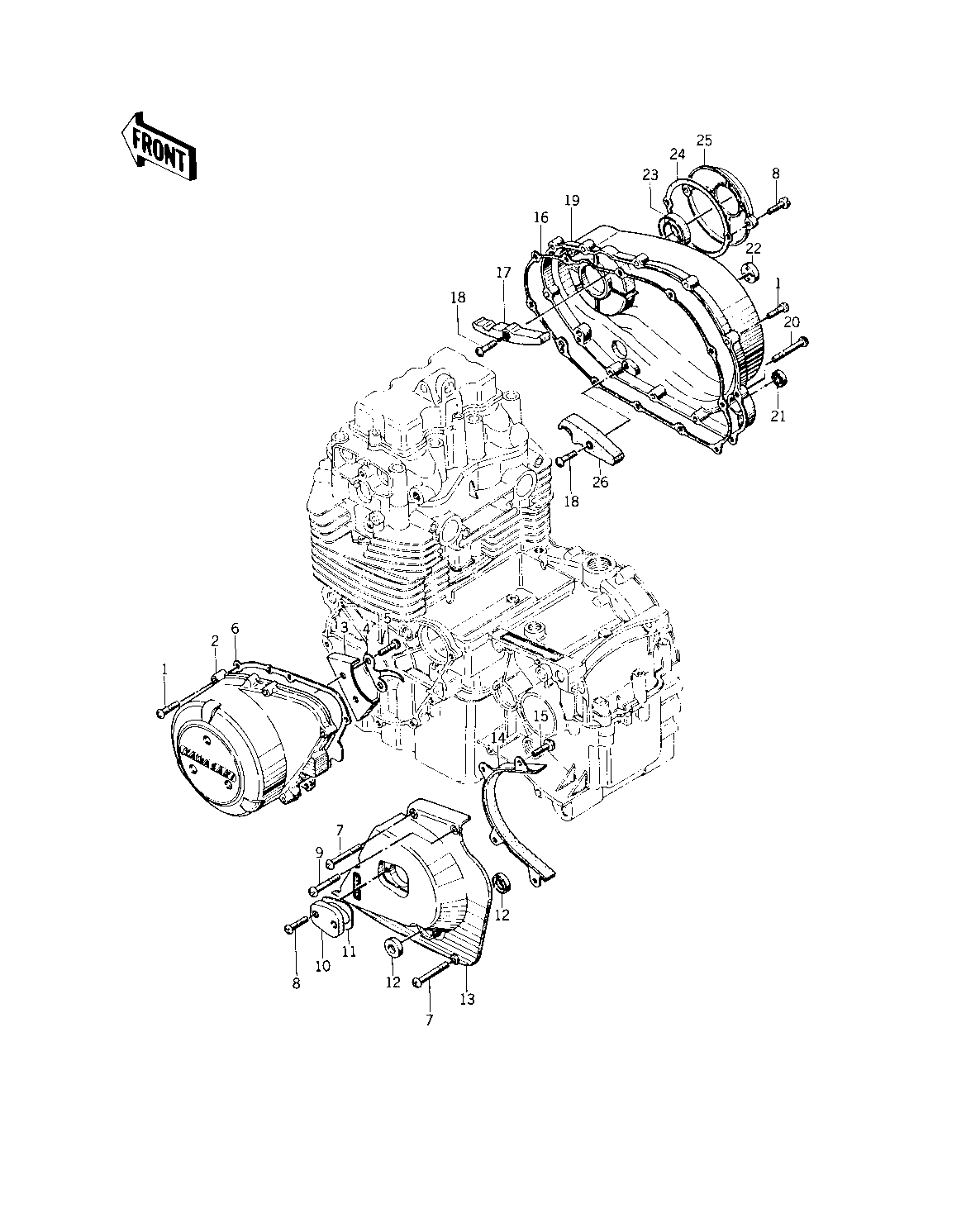

1978 KZ400-A2 - ENGINE COVERS

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SCREW PAN HEAD 6X30 1 220B0630
COVER,L.H,ENGINE 2 14031-1007-80
COVER,L.H,ENGINE 2 14031-1007-80
SLIPPER 3 12053-007
PLATE L.H ENG COVER 4 21057-002
SCREW PAN HEAD 5X8 5 220B0508
GASKET,L.H ENG COVER 6 14045-021
SCREW PAN HEAD 6X50 7 220B0650
SCREW PAN HEAD 6X18 8 220B0618
SCREW PAN HEAD 6X35 9 220B0635
COVER,CLUTCH ADJUSTNG 10 14028-006-80
GASKET,CLUTCH ADJ CAP 11 14049-004
OIL SEAL,TB13225.5 12 92051-005
COVER,ENG SPROCKET 13 14026-029-80
GUIDE,CHAIN 14 14077-004
SCREW PAN HEAD 6X16 15 220B0616 KZ400-A1
SCREW PAN HEAD 6X12 15 220B0612 KZ400-A2
GASKET,R.H ENG COVER 16 14046-031
GUIDE,PRIMARY CHAIN 17 12053-010
SCREW PAN HEAD 6X25 18 220B0625
COVER,R.H ENG,BUFF 19 14032-106-80
SCREW PAN HEAD 6X40 20 220B0640
OIL SEAL SB20285 21 92049-012
GAUGE,OIL LEVEL 22 52015-004
OIL SEAL,R.H CRNKSFT 23 92050-065
GASKET,BREAKER COVER 24 14050-010
COVERBRK POINT,BUFF 25 14027-019-80
GUIDE,PRIMARY CHAIN 26 12053-011
