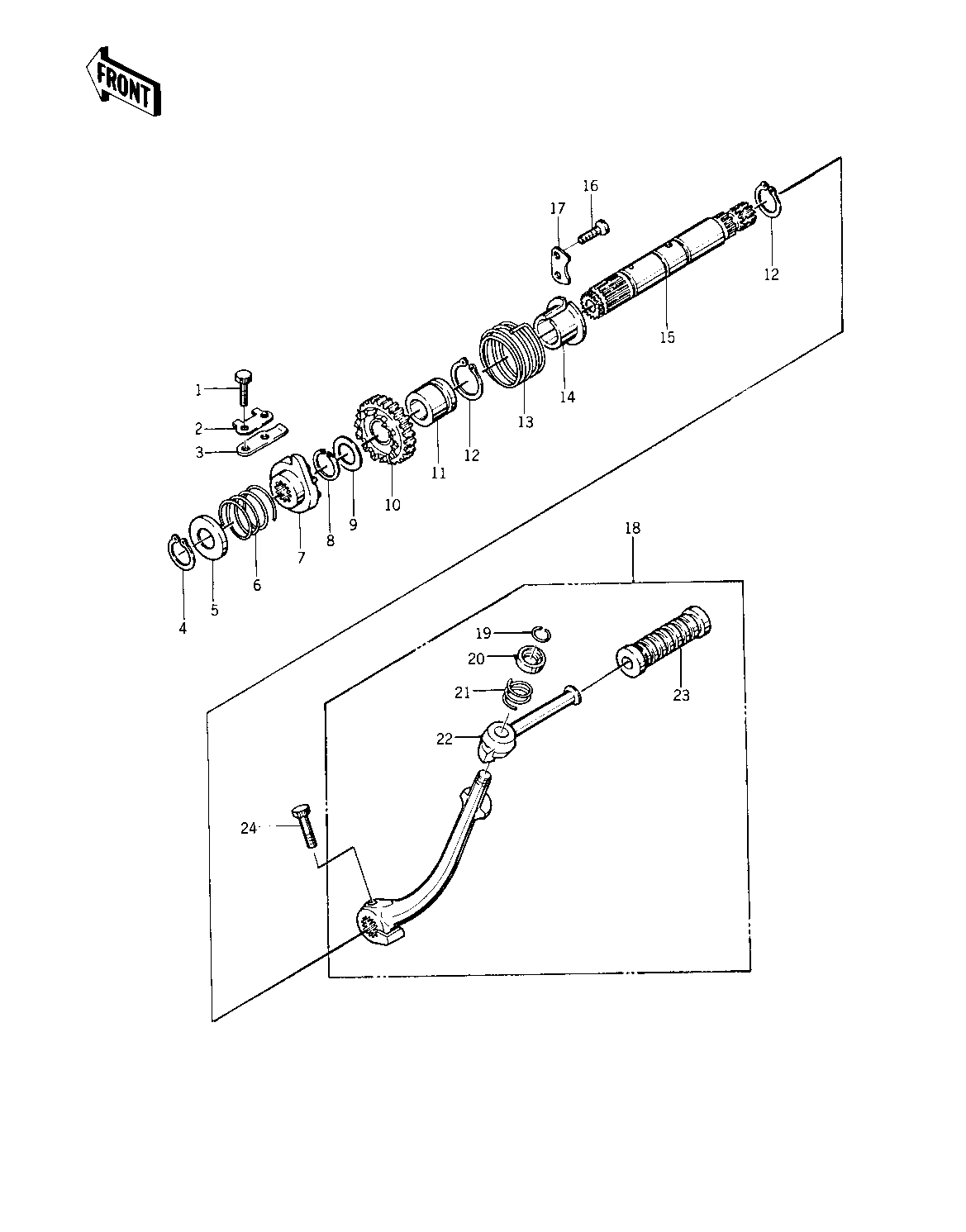

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-UPSET 6X14 | 1 | 112B0614 | |||
| WASHER-LOCK | 2 | 92024-036 | |||
| STOPPER,KICKSTARTER | 3 | 13072-012 | |||
| CIRCLIP,19MM | 4 | 480J1900 | |||
| CAP,KICKSTARTER | 5 | 92102-008 | |||
| SPRING RATCHET | 6 | 92081-104 | |||
| RATCHET,KICK SHAFT | 7 | 13078-011 | KZ400-A1 | ||
| RATCHET,KICK SHAFT | 7 | 13078-011 | KZ400-A2 | ||
| CIRCLIP,18MM | 8 | 92033-029 | |||
| WASHER THRUST | 9 | 92022-112 | |||
| GEAR,KICKSTARTER | 10 | 13068-031 | |||
| BUSHING,KICK SHAFT | 11 | 92028-175 | |||
| CIRCLIP, 20MM | 12 | 480J2000 | |||
| SPRING,KICK RETURN | 13 | 92082-006 | |||
| GUIDE,KICK SPRING | 14 | 13070-009 | |||
| SHAFT,KICKSTARTER | 15 | 13066-036 | |||
| SCREW CNTSNK HD 6X16 | 16 | 221B0616 | |||
| PLATE-DRUM LEV POSTON | 17 | 13169-007 | |||
| PEDAL ASY,KICKSTARTER | 18 | 13058-053 | |||
| CIRCLIP,KICK | 19 | 92036-025 | KZ400-A1 | ||
| CIRCLIP,KICK | 19 | 92036-026 | KZ400-A2 | ||
| WASHER,KICKPEDAL | 20 | 92022-294 | |||
| SPRING,KICK PEDAL | 21 | 92081-136 | |||
| PEDAL,KICKSTARTER | 22 | 13060-017 | |||
| RUBBER KICK PEDAL | 23 | 13063-004 | |||
| BOLT HEX HEAD 8X28 | 24 | 114G0828 | KZ400-A1 | ||
| BOLT HEX HEAD 8X28 | 24 | 114G0828 | KZ400-A2 |
