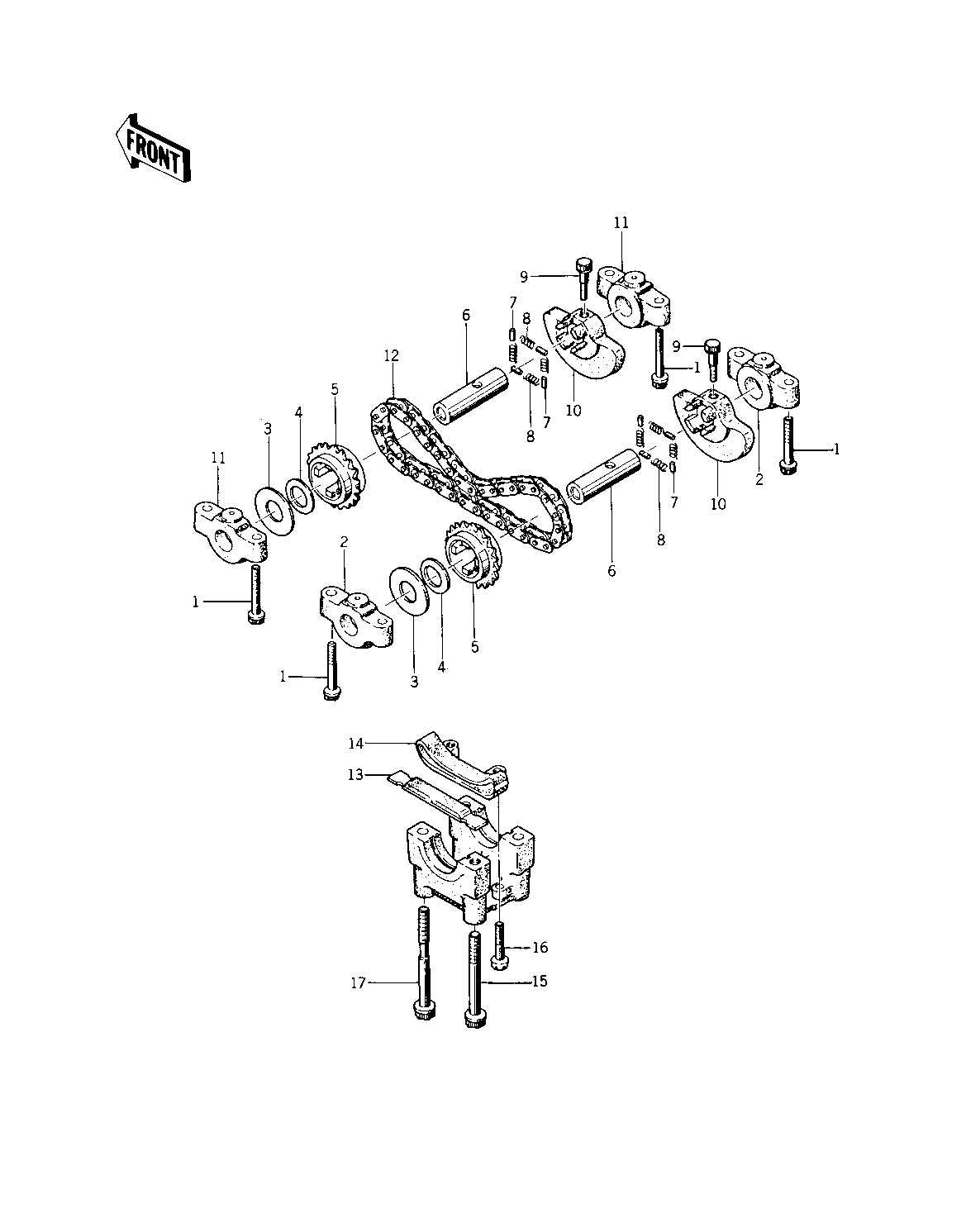

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT,HEX HEAD,6X45 | 1 | 92003-092 | KZ400-A1 | ||
| BOLT,6X43 | 1 | 92002-1881 | KZ400-A2 | ||
| BRACKET B ,BALANCER | 2 | 14081-008 | KZ400-A1 | ||
| BRACKET B ,BALANCER | 2 | 14081-008 | KZ400-A2 | ||
| WASHER,BALANCER | 3 | 92026-104 | |||
| WASHER,BALANCER | 4 | 92026-131 | KZ400-A1 | ||
| WASHER,BALANCER | 4 | 92026-131 | KZ400-A2 | ||
| SPROCKET,BALANCER | 5 | 12046-005 | |||
| SHAFT,BALANCER | 6 | 12052-006 | |||
| PIN DOWEL 4X8 | 7 | 610A0408 | |||
| SPRING,BALANCER | 8 | 92081-135 | |||
| BOLT,6X32 | 9 | 92003-229 | KZ400-A1 | ||
| BOLT,6X32 | 9 | 92003-229 | KZ400-A2 | ||
| BALANCER | 10 | 13041-004 | |||
| BRACKET A ,BALANCER | 11 | 14081-007 | KZ400-A1 | ||
| BRACKET A ,BALANCER | 11 | 14081-007 | KZ400-A2 | ||
| CHAIN BALANCER | 12 | 21070-006 | |||
| SLIPPER | 13 | 12053-004 | |||
| GUIDE-CHAIN,BALANCER | 14 | 12053-1051 | |||
| BOLT,HEX HEAD,8X81 | 15 | 92003-108 | |||
| SCREW PAN HEAD 6X30 | 16 | 220B0630 | |||
| BOLT | 17 | 92001-1480 |
