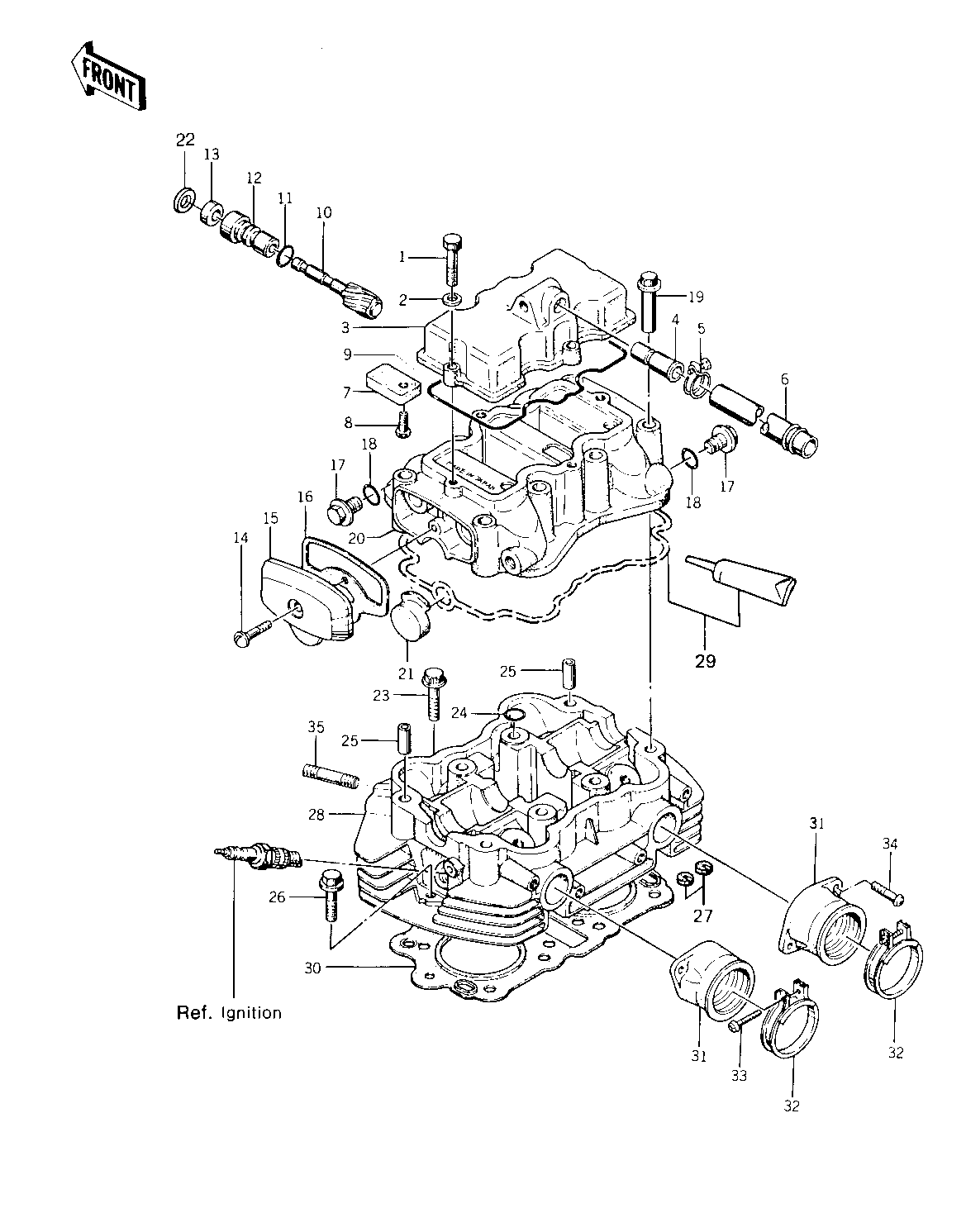

1978 KZ400-A2 - CYLINDER HEAD/COVERS

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT HEX HEAD 8X28 1 114G0828
WASHER PLAIN 8MM 2 410B0800
COVER,BREATHER 3 14070-005
BREATHER JOINT 4 14067-006
BREATHER JOINT 4 14067-006
CLAMP,BREATHER HOSE 5 92037-123
CLAMP,BREATHER HOSE 5 92037-192
HOSE,BREATHER 6 92059-125
PLATE,BREATHER 7 14068-006
SCREW PAN HEAD 6X12 8 220B0612
"O" RING,BRETHER COV 9 92055-064
GEAR,TACHOMETER 10 13223-009
RING-O,10MM 11 92055-1149
GUIDE,TACHOMETER GEAR 12 92087-011
OIL SEAL 13 92050-075
SCREW OVL CNTSK 6X25 14 222E0625
CAP,CYL HEAD COVER 15 11027-003
GASKET,CYL HEAD COVER 16 11023-007
PLUG 17 92066-066
RING-O 18 92055-1146
NUT,CYLINDER HEAD 19 92015-071
COVER,CYLINDER HEAD 20 11022-013-2H BARREL FINISH
COVER,CYLINDER HEAD 20 11022-013-2H BARREL FINISH
CAP,CLY HEAD COVER 21 92073-035
GASKET,TACHO GEAR 22 92065-104
BOLT, HEX HEAD, 6X34 23 92003-159
"O" RING,HD COV BOLT 24 92055-067
PIN,DOWEL,12MM 25 92042-031
BOLT, HEX HEAD, 8X34 26 92003-153
DAMPER RUBBER,CYL HD 27 92075-255
CYLINDER HEAD,BARREL 28 11002-018-2H BARREL FINISH
CLEAR SILICONE 29 K61079-007 FOR CYLINDER HEAD COVER
GASKET,CYLINDER HEAD 30 11004-1003
DUCT,ENGINE INTAKE 31 16065-037 KZ400-A1
DUCT,ENGINE INTAKE 31 16065-048 KZ400-A2
CLAMP,57MM,BLACK 32 92037-1452 KZ400-A1
CLAMP,CARBURETOR 32 92037-1021 KZ400-A2
SCREW-PAN-CROS 33 220B0535 KZ400-A1
SCREW-PAN-CROS,5X25 33 220B0525 KZ400-A2
SCREW PAN HEAD 6X18 34 220B0618
STUD,6X46 35 92004-049
