Parts Diagrams |

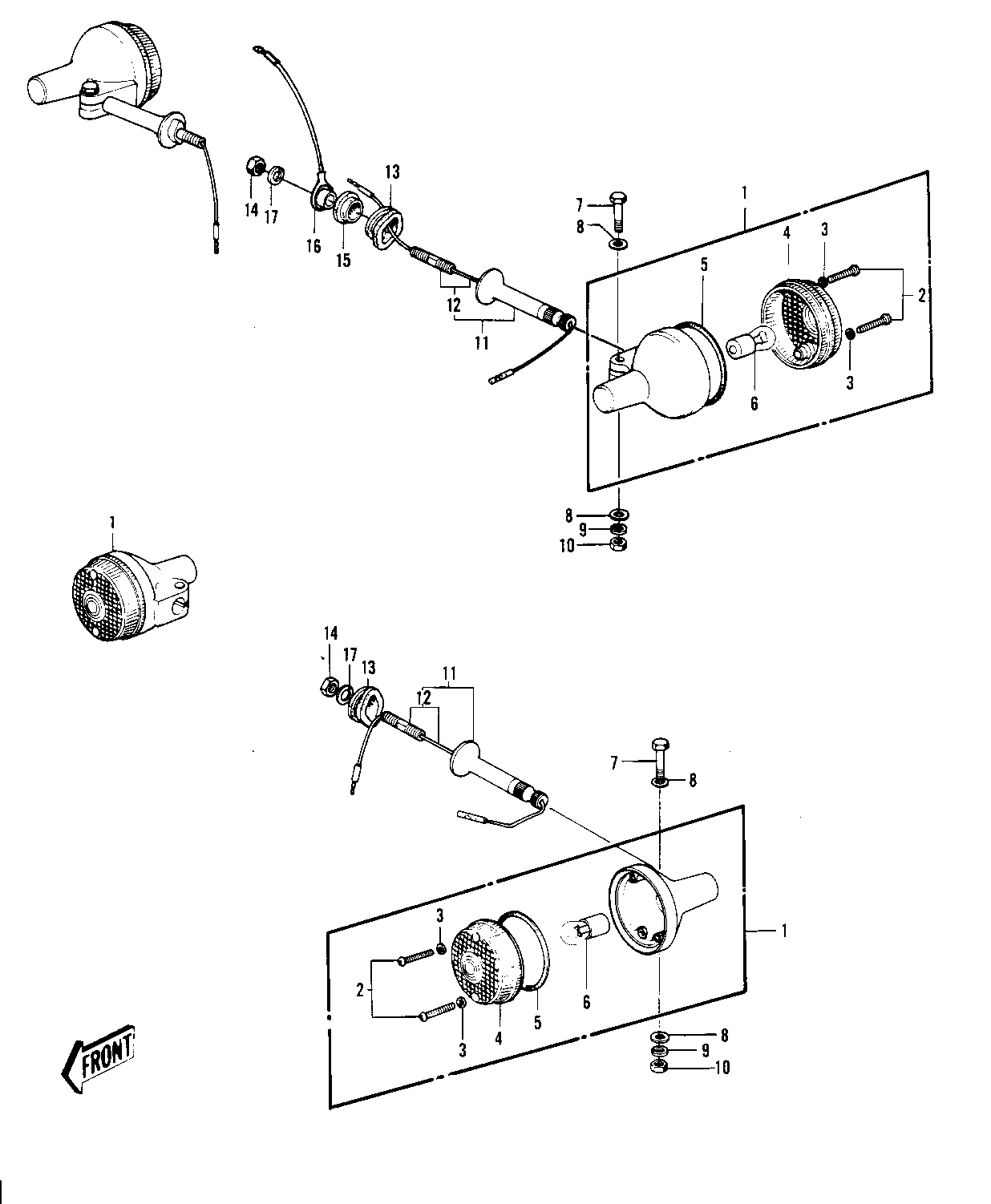

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| LAMP ASSY-TURN SIGNAL | 1 | 23040-037 | KH400-A3/A4 | ||
| LAMP,TURN SIGNAL | 1 | 23040-054 | KH400-A5 | ||
| LAMP,FRNT TURN SIGNAL | 1 | 23040-1024 | |||
| SCREW-PAN HEAD,4X20 | 2 | 220E0420A | |||
| WASHER-PLAIN,4MM | 3 | 23058-002 | |||
| LENS,TURN SIGNAL LAMP | 4 | 23048-1001 | KH400-A3/A4 | ||
| LENS,TURN SIGNAL LAMP | 4 | 23048-1001 | KH400-A5 | ||
| GASKET-SIG LAMP LENS | 5 | 23050-003 | |||
| BULB 12V 32CP | 6 | 92069-055 | (23W) | ||
| BOLT-UPSET | 7 | 112G0630 | |||
| UNAVAILABLE IN PRICE BOOK | 8 | 411D600 | |||
| WASHER SPRING 6MM | 9 | 461F0600 | |||
| NUT 6MM | 10 | 311B0600 | |||
| NUT 6MM | 10 | 311B0600 | |||
| KH400-A3/A4BRACKET-TURN SIG LAMP | 11 | 23078-001 | |||
| BRACKET,TURN SIGNAL.L | 11 | 23051-053 | KH400-A5 | ||
| BOLT SET-SIG LAMP BKT | 12 | 23073-001 | NOT USED 23051-053 | ||
| DAMPER RUBBER | 13 | 92075-128 | |||
| NUT 10MM | 14 | 315B1000 | |||
| DAMPER RUBBER,SIG LM | 15 | 92075-158 | |||
| COLLAR | 16 | 23076-003 | |||
| WASHER SPRING 10MM | 17 | 461F1000 |
| LAMP ASSY-TURN SIGNAL | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | KH400-A3/A4 |
| LAMP,TURN SIGNAL | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | KH400-A5 |
| LAMP,FRNT TURN SIGNAL | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| SCREW-PAN HEAD,4X20 | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| WASHER-PLAIN,4MM | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| LENS,TURN SIGNAL LAMP | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | KH400-A3/A4 |
| LENS,TURN SIGNAL LAMP | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | KH400-A5 |
| GASKET-SIG LAMP LENS | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| BULB 12V 32CP | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | (23W) |
| BOLT-UPSET | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| UNAVAILABLE IN PRICE BOOK | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 6MM | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| NUT 6MM | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| NUT 6MM | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| KH400-A3/A4BRACKET-TURN SIG LAMP | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| BRACKET,TURN SIGNAL.L | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | KH400-A5 |
| BOLT SET-SIG LAMP BKT | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | NOT USED 23051-053 |
| DAMPER RUBBER | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| NUT 10MM | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| DAMPER RUBBER,SIG LM | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| COLLAR | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 10MM | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
