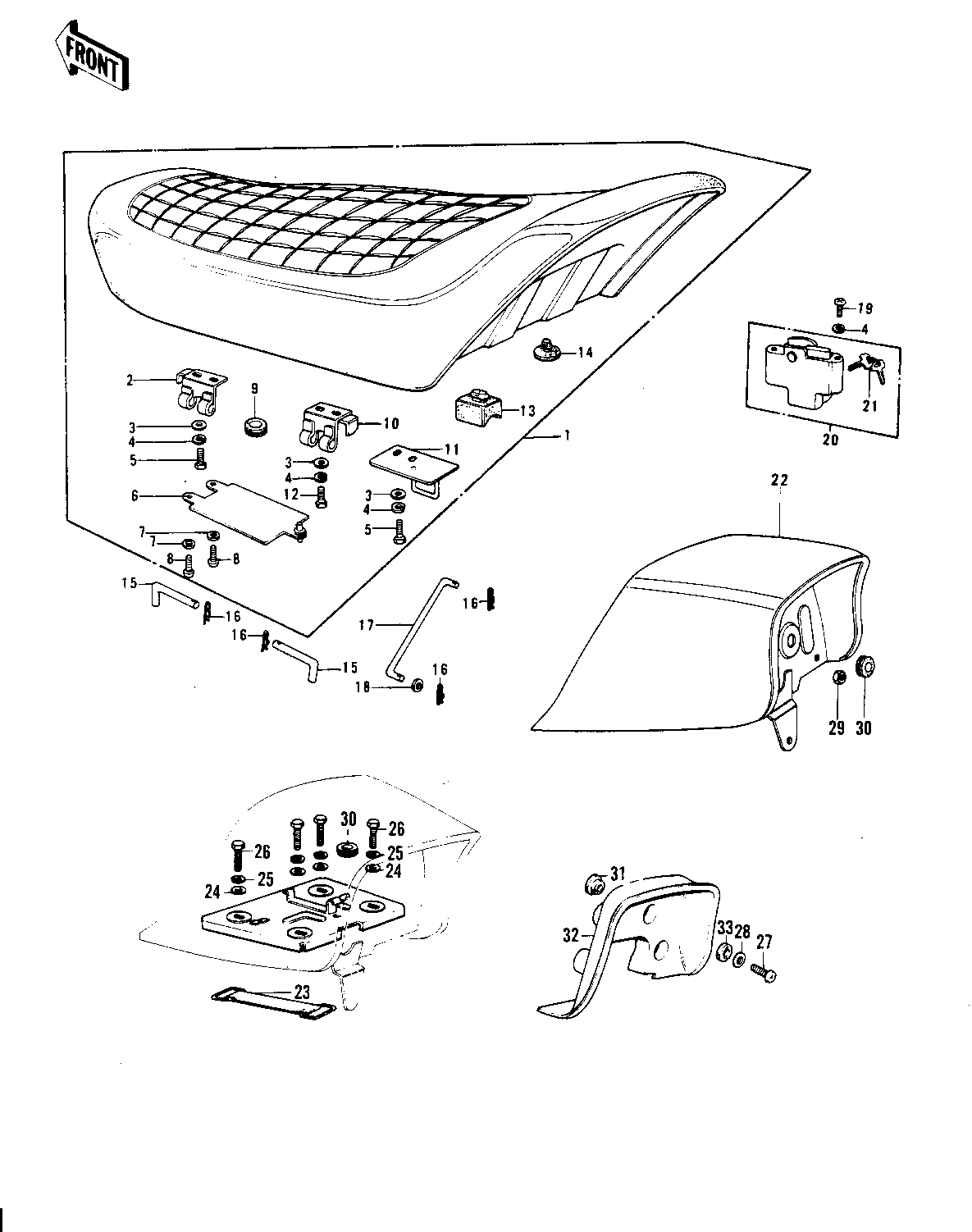

1977 KH400-A4 - SEAT/SEAT COVER

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SEAT-ASSY,DUAL 1 53001-117
HINGE,FRONT 2 53009-031
WASHER PLAIN 6MM 3 410B0600
WASHER SPRING 6MM 4 461F0600
BOLT-UPSET 6X14 5 112B0614
BOLT-UPSET 6X14 5 112B0614
CASE 6 32099-011
WASHER PLAIN 4MM 7 410B0400
SCREW PAN HEAD 4X10 8 220B0410
GROMMET 9 92071-056
HINGE,REAR 10 53009-030
HOOK,SEAT 11 53008-024
BOLT-UPSET,6X16 12 112G0616
BOLT-UPSET,6X16 12 112G0616
DAMPER RUBBER-SEAT 13 92075-156
DAMPER RUBBER 14 92075-099
PIN,DUAL SEAT PIVOT 15 53011-008
COTTER PIN 16 92041-003
STAND,SEAT 17 53054-002
WASHER PLAIN 6MM 18 410B0600
SCREW PAN HEAD 6X14 19 220B0614
LOCK ASSY,SEAT 20 53045-013
KEY SET,#901 21 27008-055-01
KEY SET,#910 21 27008-055-10
BACK REST,D.GREEN 22 53043-008-3V KH400-A3
BACK REST,ORANGE 22 53043-008-3W KH400-A3
BACK REST,C.E.GREEN 22 53043-008-4U KH400-A4
COVER,SEAT,C.L.GREEN 22 53043-008-3X KH400-A5
UNAVAILABLE IN PRICE BOOK 22 53043-008-AS KH400-A5
BAND TOOL 23 92072-012
WASHER PLAIN 8MM 24 411B0800
WASHER SPRING 8MM 25 461F0800
BOLT-SMALL-UPSET,8X18 26 115G0818
BOLT-SMALL-UPSET,8X18 26 115G0818
SCREW PAN HEAD 6X28 27 220B0628
WASHER-PLAIN,7MM 28 92022-240
NUT 6MM 29 311B0600
GROMMET 30 92071-059
DAMPER RUBBER 31 92075-169
COVER,BACKREST 32 53057-004
DAMPER RUBBER 33 92075-168
