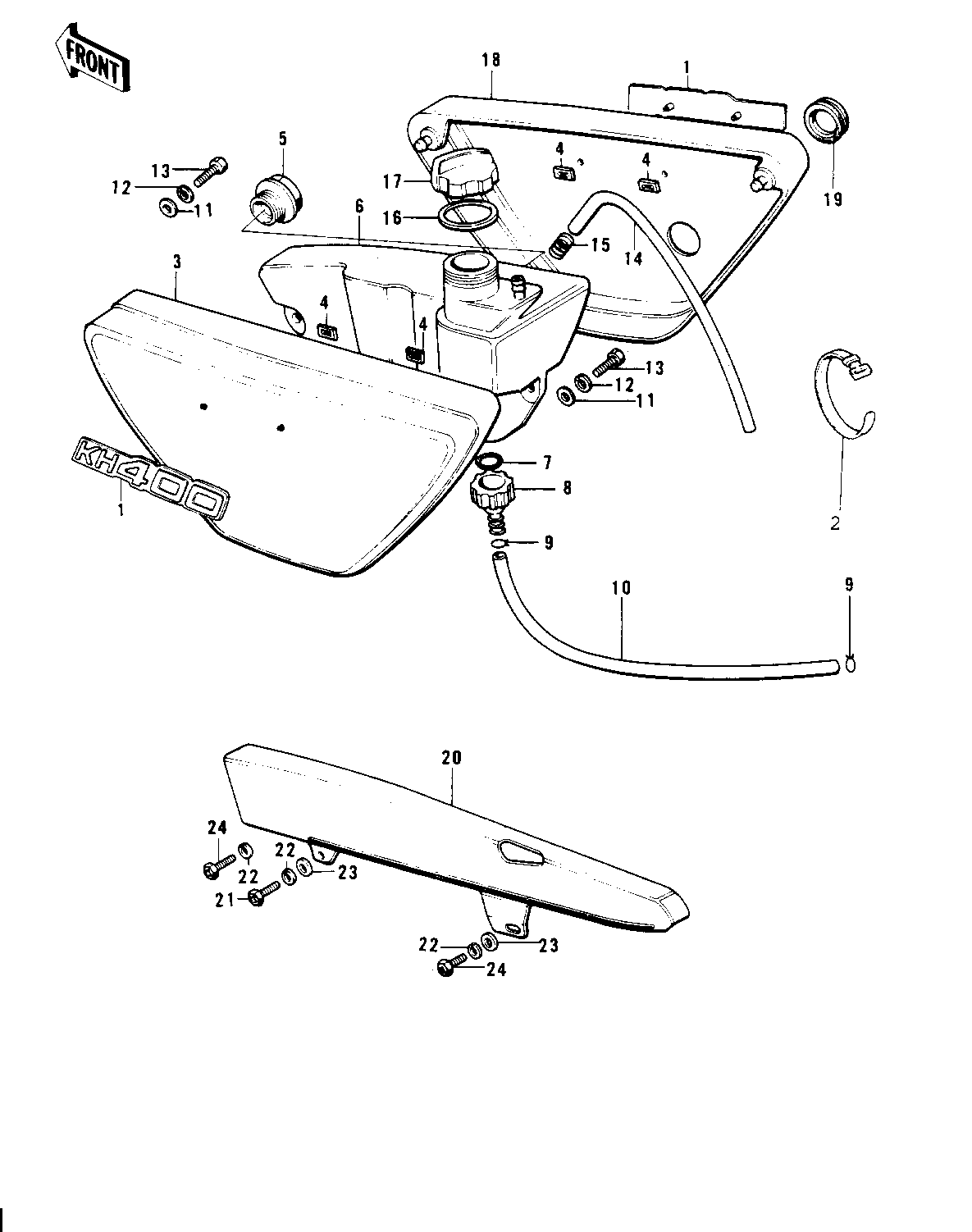

1977 KH400-A4 - SIDE COVERS/OIL TANK/CHAIN COVER

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
EMBLEM,SIDE COVER 1 56018-212
BAND,MIDDLE 2 92072-031
COVER,L.H SIDE,D.GREN 3 36001-043-3V KH400-A3
COVER,L.H SIDE,ORANGE 3 36001-043-3W KH400-A3
COVER,L.H.SIDE,C.E.GR 3 36001-043-4U KH400-A4
COVER,L.H.SIDE C.L.G. 3 36001-043-3X KH400-A5 (CN)
COVER,L.H,SIDE,C.P.R. 3 36001-043-A5 KH400-A5 (CN)
NUT,LOCK,3MM 4 92018-005
GAUGE-OIL LEVEL 5 52015-005
TANK,OIL 6 52001-040
"O" RING,15MM 7 670B2015
FILTER-OIL 8 52020-001
CLAMP FUEL PIPE 9 92037-010
PIPE-OIL 10 92059-072
WASHER PLAIN 6MM 11 411B0600
WASHER SPRING 6MM 12 461F0600
BOLT-UPSET 6X14 13 112B0614
TUBE-VINYL 5X720 14 700Q05720
CLAMP,OIL TANK BREATR 15 92037-141
GASKET-OIL TANK CAP 16 92065-085
CAP-OIL TANK 17 52003-019
COVER,RH SIDE,D.GREEN 18 36007-037-3V KH400-A3
COVER,RH SIDE,ORANGE 18 36007-037-3W KH400-A3
COVER,RH SIDE,C.E.GRN 18 36007-037-4U KH400-A4
COVER,RH SIDE,C.L.GRN 18 36007-037-3X KH400-A5 (CN)
COVER,RH SIDE,C.P.RED 18 36007-037-A5 KH400-A5 (CN)
GROMMET-R.H SIDE COV 19 92071-065
CASE-CHAIN,FR BLACK 20 36014-050-21
BOLT,HEX HEAD,6MM 21 92001-137
WASHER SPRING 6MM 22 461F0600
WASHER-PLAIN 23 92022-193
BOLT,HEX HEAD,6X14 24 92001-121
