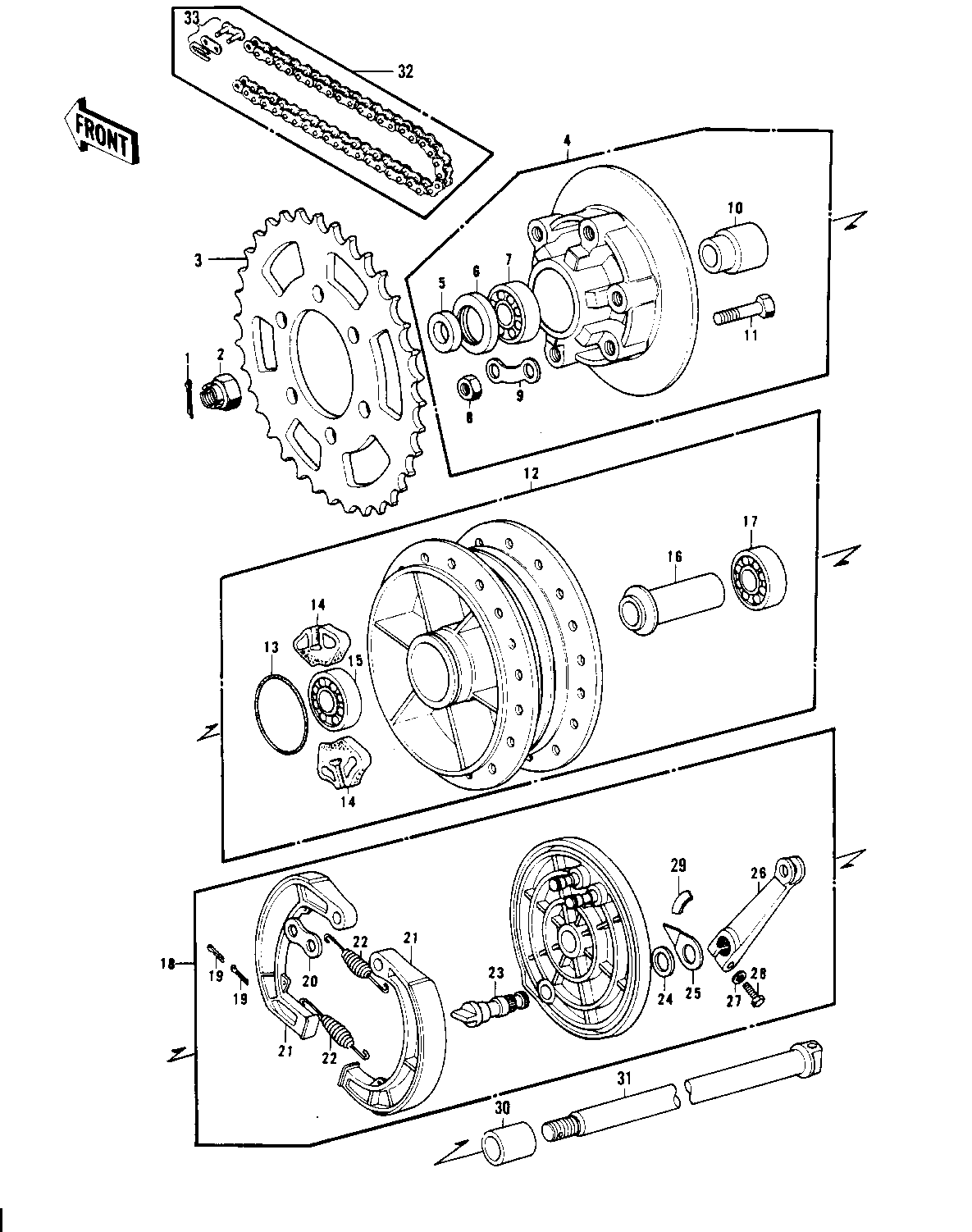

1977 KH400-A4 - REAR HUB/BRAKE/CHAIN

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PIN-COTTER,4.0X35 1 550D4035
NUT CASTLE,16MM 2 92015-055
REAR SPROCKET,41T 3 42041-138 STD
REAR SPROCKET 38T 3 42041-063
REAR SPROCKET 43T 3 42041-102 OPTION
COUPLING ASSY,RR BRK 4 42008-020
COLLAR,REAR AXLE 5 42037-024
OIL SEAL WTC35527 6 92052-006
BEARING BALL #6205 7 601B6205
NUT,10MM 8 314B1000
WASHER SPROCKET LOCK 9 92088-005
SLEEVE,REAR AXLE 10 42036-019
BOLT-REAR SPROCKET 11 92003-087
DRUM ASY,RR BK,BUFF 12 42005-044-80
DRUM-ASSY,RR BRK 12-1 41034-5001
"0" RING,60MM 13 671B2560
DAMPER REAR HUB SHOCK 14 42014-008
BEARING BALL #6303 15 601B6303
SPACER,RR HUB BEARING 16 42010-027
SPACER RR HUB BEARING 16 42010-008
BEARING BALL #6303Z 17 601B6303Z
PANEL-ASY,RR BRK 18 42006-060-80
PIN COTTER 2.0X25 19 550D2025
WASHER,BRAKE SHOE 20 41045-007
SHOE REAR BRAKE 21 42019-003
SPRING BRAKE SHOE 22 41049-003
CAM SHAFT,REAR BRAKE 23 42026-015
DUST SHIELD BRAKE CAM 24 41051-001
INDICATOR,BRAKE PANEL 25 41085-009
LEVER,REAR BRAKE CAM 26 42029-037
WASHER PLAIN 6MM 27 410B0600
BOLT-UPSET 28 112G0625
LABEL 29 41084-001
COLLAR,REAR AXLE 30 42032-049
AXLE,REAR 31 42031-047
DR CHAIN 530X104E 32 92057-085 #530 X 104L
CHAIN JOINT 530 33 92058-008 #530
