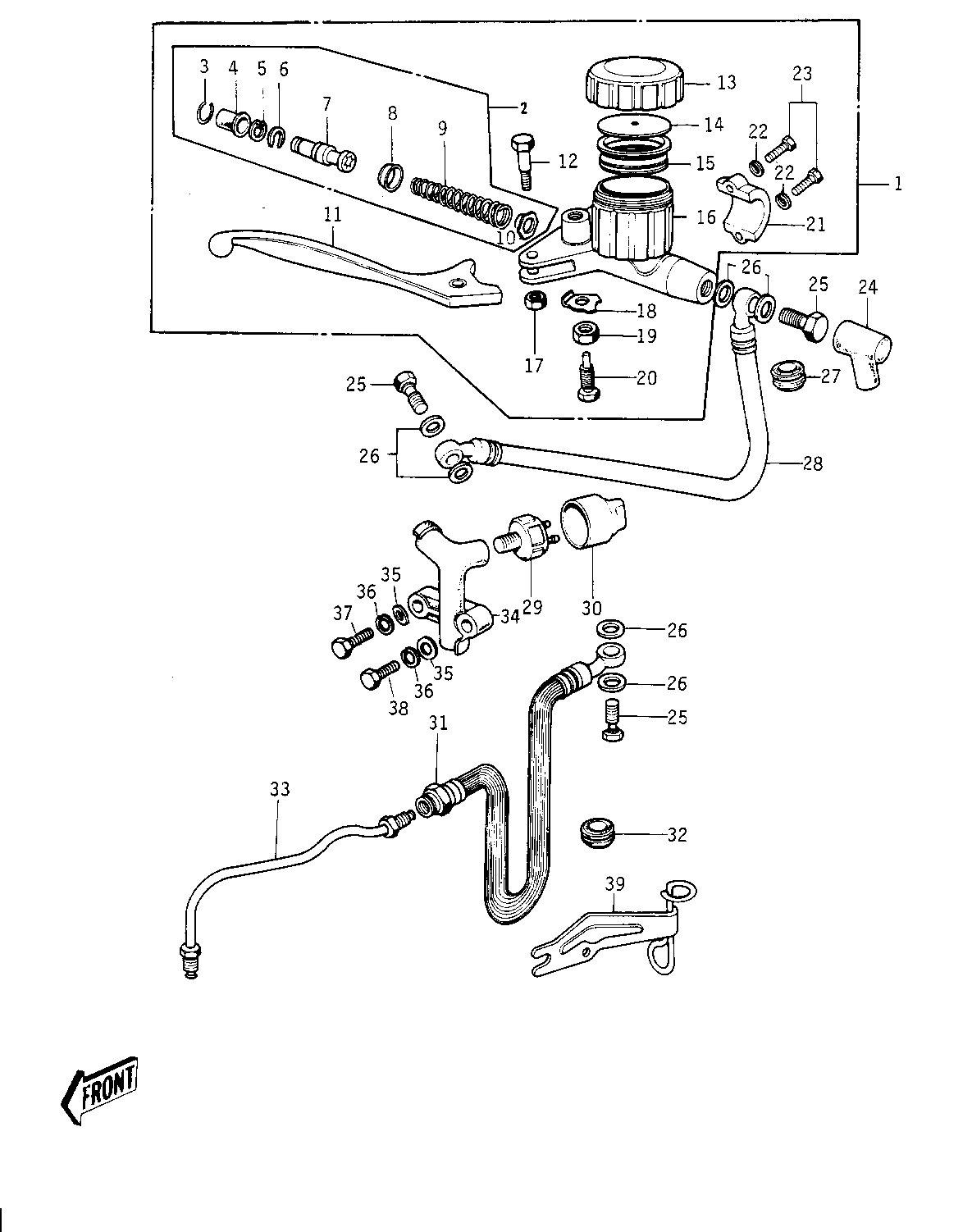

1977 KH400-A4 - FRONT MASTER CYLINDER (KH400-A3/A4)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CYLINDER ASSY,MASTER 1 43015-032
CYLINDER ASSY,MASTER 1 43015-032
REPAIR SET-MASTER CYL 2 43073-001
STOPPER-BOOTS 3 43025-001
BOOTS 4 43024-001
CIRCLIP,18MM 5 481J1800
STOPPER-PISTON 6 43022-001
PISTON ASSY 7 43072-001
CUP-PRIMARY 8 43019-001
SPRING ASSY-RETURN 9 43018-001
VALVE ASSY-CHECK 10 43017-001
LEVER,FRONT BRAKE 11 43029-003
BOLT 12 43033-004
CAP,OIL CUP 13 43026-003
PLATE-MASTER CYLINDER 14 43027-001
DIAPHRAGM 15 43028-001
BODY, MASTER CYLINDER 16 43016-002
NUT,6MM 17 312N0600
WASHER-LOCK,8MM 18 43031-001
NUT,8MM 19 314N0800
BOLT,LEVER ADJUSTING 20 43030-003
HOLDER-MASTER CYL 21 43034-001
WASHER PLAIN 6MM 22 411B0600
BOLT HEX HEAD 6X25 23 110N0625
BOOT,DUST 24 49006-1041
BOLT,OIL,L=23 25 92002-1888
WASHER-OIL BOLT 26 43067-001
DAMPER RUBBER 27 43064-005
HOSE-FRONT BRAKE 28 43059-006
SWITCH-FRONT BRAKE 29 43065-001
RUBBER CAP,FRNT BRKE 30 92073-027
HOSE-FRONT BRAKE 31 43059-008
GROMMET-HOSE BRACKET 32 43064-001
PIPE,BRIDGE 33 43060-016
JOINT,THREE WAY 34 43061-002
WASHER PLAIN 6MM 35 411B0600
WASHER SPRING 6MM 36 461F0600
BOLT, HEX HEAD 6X22 37 110N0622
BOLT-HEX HEAD,6X32 38 110N0632
BKT,BRAKE HOSE 39 43063-006
