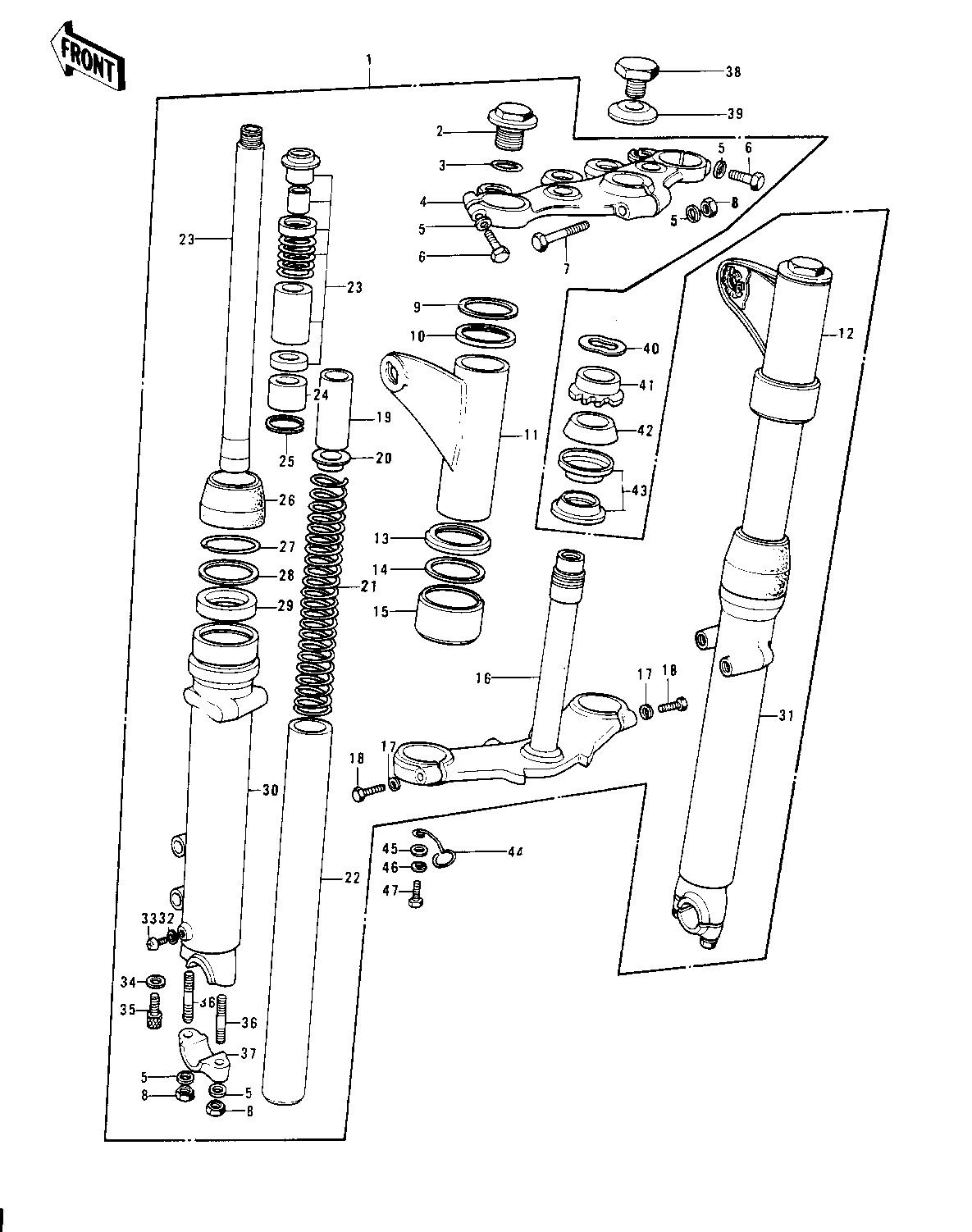

1977 KH400-A4 - FRONT FORK

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FORK-FRONT 1 44001-177
BOLT-FORK FITTING 2 44041-037
"O" RING,FORK TOP 3 92055-1012
"O" RING,FORK TOP 3 92055-1012
HEAD-STEERING STEM 4 44039-051
WASHER SPRING 8MM 5 461F0800
BOLT-STEERING STEM HD 6 44041-044
BOLT-STEERING STEM HD 7 44041-042
NUT,LOCK,8MM 8 92015-1124
NUT,LOCK,8MM 8 92015-1124
GASKET,FORK COVER 9 44045-039
WASHER,FORK COVER 10 44043-047
COTER,L.H FORK 11 44033-067
COVER,R.H FORK 12 44034-067
CAP,FORK COVER 13 44032-005
GASKET FORK COVER 14 44045-029
GUIDE,FORK COVER 15 44064-015
STEM,STEERING 16 44037-097
WASHER SPRING 10MM 17 461F1000
BOLT HEX HEAD 10X32 18 113B1032 KH400-A3
BOLT PINCH 18 44041-010 KH400-A4/A5
SPACER-FORK SP GUIDE 19 44028-026
GUIDE-FORK SPRING 20 44029-019
SPRING-FORK 21 44026-043
TUBE-FORK INNER 22 44013-038
CYLINDER-FORK 23 44022-034
PISTON,FORK 24 44018-009
CIRCLIP,FORK PISTON 25 44044-019
DUST SHIELD 26 44010-035
CIRCLIP OIL SEAL FIT 27 44044-005
WASHER OIL SEAL FIT 28 44043-023
OIL SEAL 29 44009-026
TUBE,LH,FORK OUTER 30 44005-061
TUBE,RH,FORK OUTER 31 44006-059
GASKET FORK DRAIN PLG 32 44045-002
SCREW PAN HEAD 4X8 33 220B0408
GASKET,FORK CYLINDER 34 44045-057
GASKET,FORK CYLINDER 34 44045-057
BOLT-FORK CYLINDER 35 44041-040
STUD 8X30 36 172G0830
HOLDER,FRONT AXLE 37 44063-012
BOLT,STEERG STEM HEAD 38 92007-031
WASHER,STEERG STM HD 39 92022-230
WASHER,WAVE 40 46100-003
NUT STEERING STEM LCK 41 92090-007
CAP, STEERING STEM 42 46098-016
CONE STRNG STEM BERNG 43 92047-006
CLAMP-CABLE 44 92037-099
WASHER PLAIN 6MM 45 411B0600
WASHER SPRING 6MM 46 461F0600
BOLT,6X10 47 112G0610
