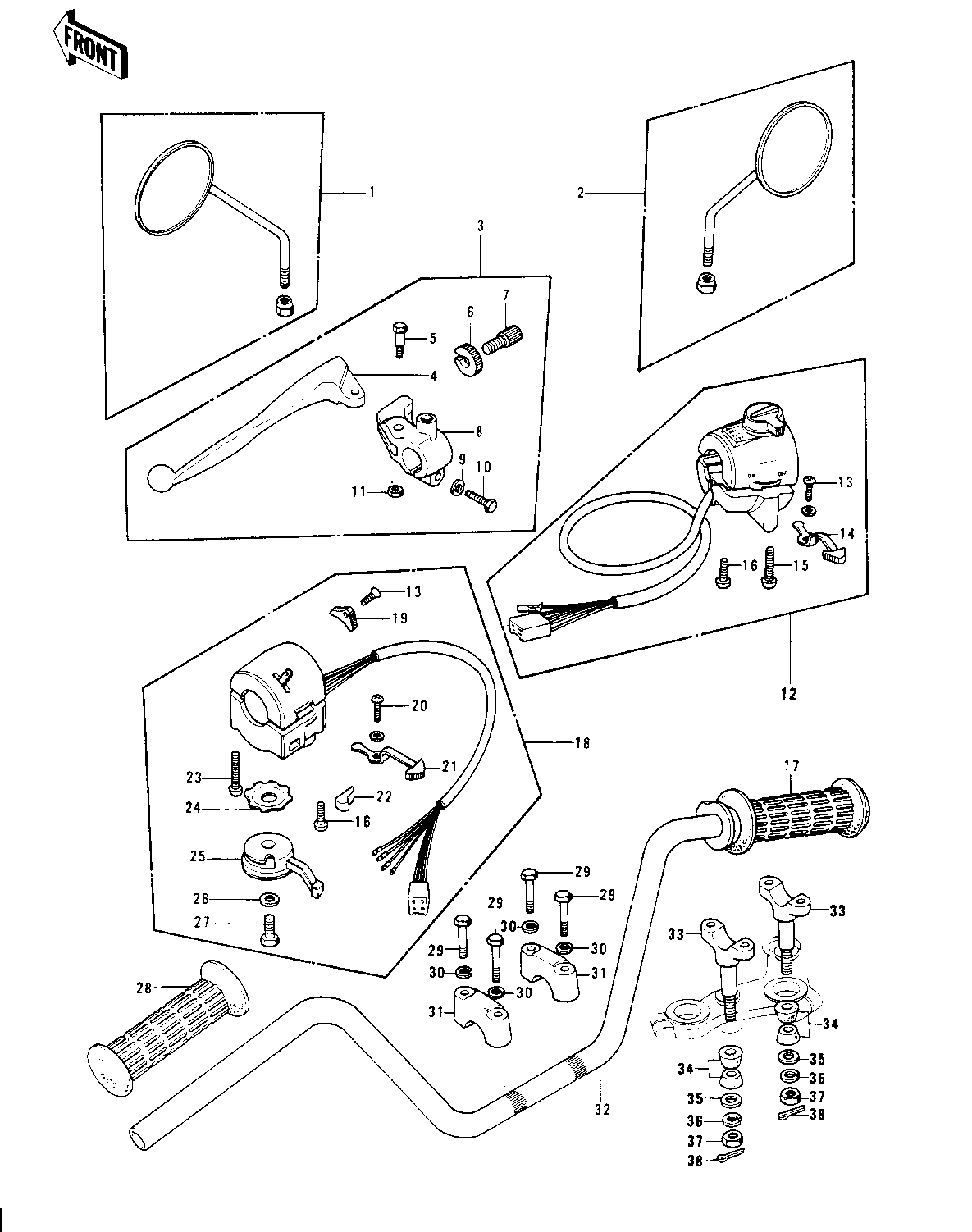

1977 KH400-A4 - HANDLEBAR

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
REAR VIEW MIRROR,L.H 1 56003-019 KH400-A3
REAR VIEW MIRROR,L.H 1 56003-019 KH400-A4/A5
REAR VIEW MIRROR,R.H 2 56002-029 KH400-A3
REAR VIEW MIRROR,R.H 2 56002-029 KH400-A4/A5
LEVER ASSY,CLUTCH 3 46076-049
LEVER,CLUTCH 4 46092-023
BOLT,HEX HEAD 5 92007-047
NUT-LOCK 6 46056-005
SCREW CABLE ADJUST 7 46055-003
HOLDER,CLUTCH LEVER 8 46094-017
WASHER PLAIN 6MM 9 411B0600
BOLT 6X22 10 112B0622
NUT 11 92019-008 KH400-A3
NUT,LOCK 6MM 11 92017-014 KH400-A4/A5
CASE ASSY,R.H 12 46132-027 U.S.
CASE ASSY,R.H 12 46132-028 CANADA
SCREW PAN HEAD 3X5 13 220B0305A
KNOB,LIGHING SWITCH 14 46043-006 USE FOR 46132-027
SCREW-PAN-CROS 15 220B0535
SCREW PAN HEAD 5X22 16 220B0522
GRIP ASSY,THROTTLE 17 46019-041
CASE ASSY,L.H 18 46091-047
KNOB,LIGHTING SW L.H 19 46044-013
SCREW CNTSNK HD 3X8 20 221B0308A
KNOB,LIGHTING SW L.H 21 46043-005
BUTTON,HORN PUSH 22 27010-1001
SCREW PAN HEAD 5X30 23 220B0530
WASHER LOCK 24 92095-012
LEVER,STARTER 25 46096-009
WASHER PLAIN 6MM 26 410B0600
BOLT-UPSET,6X8 27 112B0608
RUBBER,L.H GRIP 28 46075-028
BOLT 8X38 29 92001-1405
WASHER SPRING 8MM 30 461F0800
HOLDER-HANDLEBAR 31 46012-008
HANDLEBAR 32 46003-030
HOLDER-HANDLEBAR LOW 33 46012-010
DAMPER RUBBER HANDLE 34 92075-039
CAP HANDLEBAR HOLDER 35 46016-003
WASHER SPRING 10MM 36 461F1000
NUT,10MM 37 314B1000
PIN,SNAP 38 554A0800
