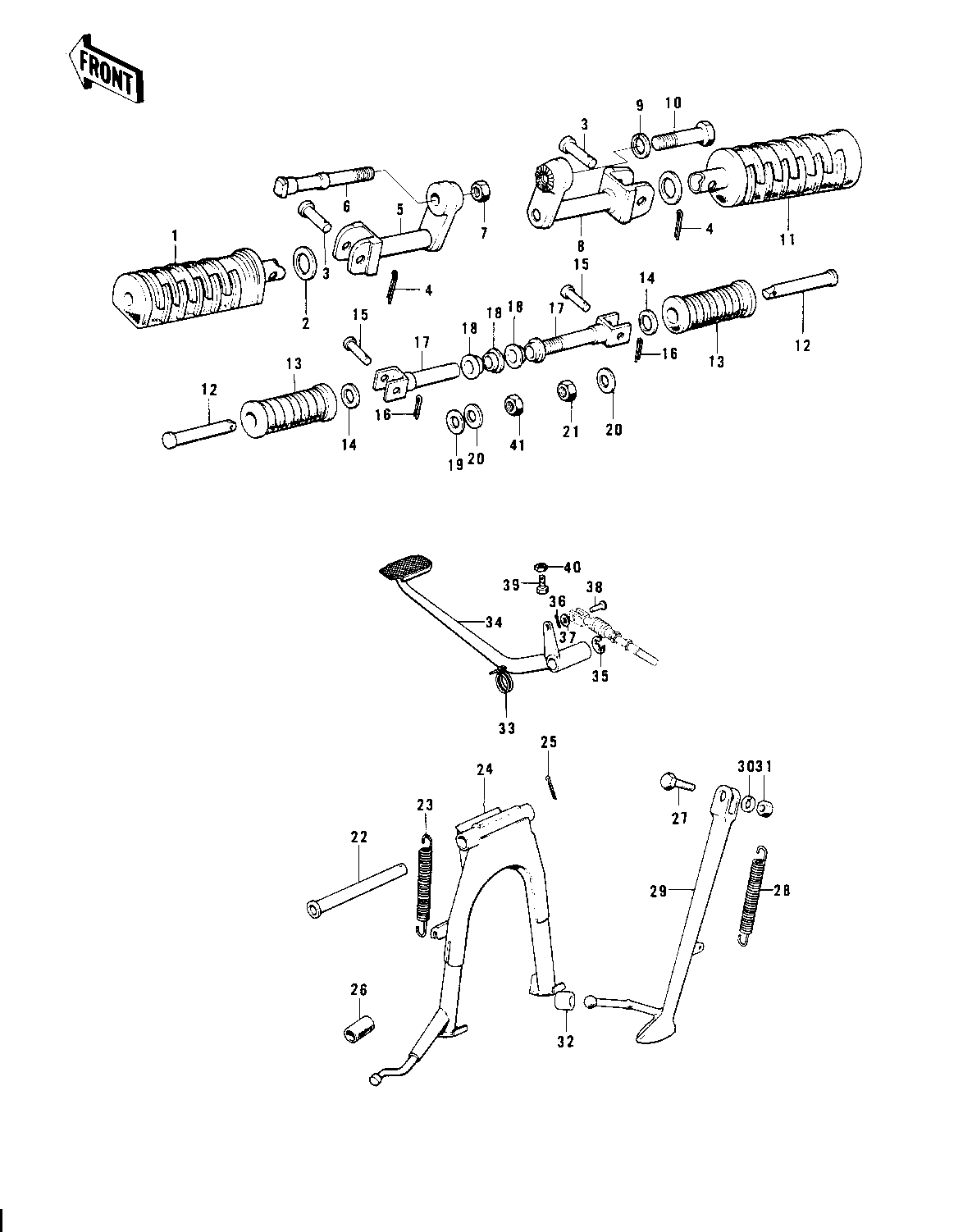

1977 KH400-A4 - FOOTRESTS/STANDS/BRAKE PEDAL

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BAR-FOOTREST,L.H 1 34028-011
WASHER PL 22.5X36X2.3 2 92022-204
PIN-FOOTREST BAR FIT 3 92043-080
PIN,COTTER,2.5X15 4 550D2515
HOLDER-FOTREST BAR LH 5 34003-040
BOLT-L.H FOOTREST FIT 6 92003-076
NUT-HEX-FINE,12MM 7 315B1200
HOLDER-FOTREST BAR RH 8 34003-041
WASHER SPRING 12MM 9 461F1200
BOLT,R.H.FOOTREST FIT 10 92001-1068
BAR-FOOTREST,R.H 11 34028-012
BAR-RR FOOTREST (OPT) 12 34028-009
RUBBER,REAR FOOTREST 13 92076-024
WASHER-PLAIN (OPT) 14 92022-199
PIN 15 92043-1464
PIN,COTTER,2.0X12 16 550D2012
BRACKET,REAR FOOTREST 17 34029-011
BUSHING,MUFFLER FITT 18 92092-010
WASHER-HANDLEBAR FIT 19 92022-196
WASHER,PLAIN,10MM 20 411B1000
NUT,LOCK,10MM 21 92019-021
SHAFT MAIN STAND 22 34019-011
SPRING-MAIN STAND 23 34023-010
STAND-MAIN 24 34011-035
PIN COTTER 3.0X25 25 550D3025
DAMPER RUBB-MAIN STND 26 92075-115
BOLT-SIDE STAND 27 92003-079
SPRING MAIN STAND 28 34023-005
STAND-SIDE 29 34024-051
WASHER SPRING 10MM 30 461F1000
NUT,10MM 31 314B1000
DAMPER RUBB SIDE STND 32 92075-031
SPRING,BRAKE PEDAL 33 43005-033
PEDAL,BRAKE 34 43001-060
CIRCLIP 12MM 35 482K0200
PIN COTTER 2.0X15 36 550D2015
WASHER PLAIN 6MM 37 410B0600
PIN R BRK CABLE JOINT 38 92043-034
BOLT 6X22 39 112B0622
NUT 6MM 40 311B0600
NUT,10MM 41 92015-1429
