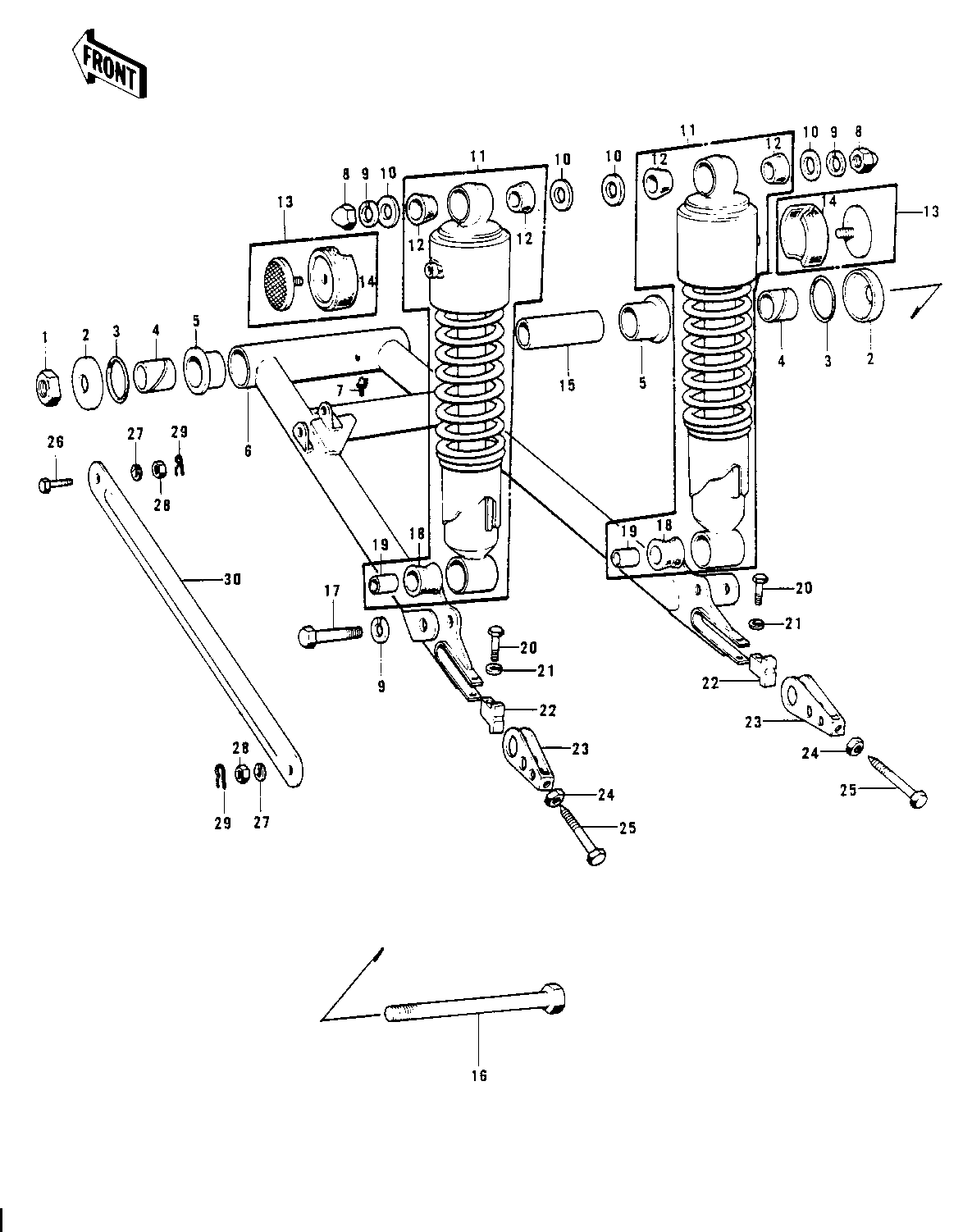

1977 KH400-A4 - SWING ARM/SHOCK ABSORBERS

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
NUT-LOCK,14MM 1 92019-011
CAP,SWING ARM 2 33035-007
"0" RING,30MM 3 671B2530
SLEEVE-SWING ARM,SHRT 4 33034-013
BUSHING-SWING ARM 5 33033-009
ARM-COMP-SWING 6 33001-1089
ARM-COMP-SWING 6 33001-1089
GREASE NIPPLE 7 92005-002
NUT SHOCK ABSORBER 8 92020-003
WASHER SPRING 10MM 9 461F1000
WASHER,PLAIN,10MM 10 92022-246
SHOCK ABSBR RR 11 45014-110
BUSH SHCK ABS RUBBER 12 45017-001
REFLECTOR,REFLEX,REAR 13 28001-030
DAMPER RUBBER,REFLEX 14 28016-003
SLEEVE-SWING ARM,LONG 15 33034-012
SHAFT-SWING ARM PIVOT 16 33032-037
BOLT HEX HEAD 10X35 17 113N1035
BUSHING,SHCK ABS RUB 18 45017-018
BUSH SHCK ABS PVT SFT 19 45016-003
BOLT,FLANGED,8X35 20 92001-1577
BOLT,FLANGED,8X35 20 92001-1577
WASHER SPRING 8MM 21 461F0800
STOPPER,CHAIN ADJUST 22 33044-002
ADJUSTER,CHAIN 23 33040-056
NUT 8MM 24 312B0800
BOLT,8X50 25 92001-1399
BOLT,8X50 25 92001-1399
BOLT 26 92003-096
WASHER SPRING 10MM 27 461F1000
NUT,10MM 28 314B1000
NUT,10MM 28 314B1000
PIN,SNAP 29 554A0800
TORQUE LINK-RR BRAKE 30 43007-031
