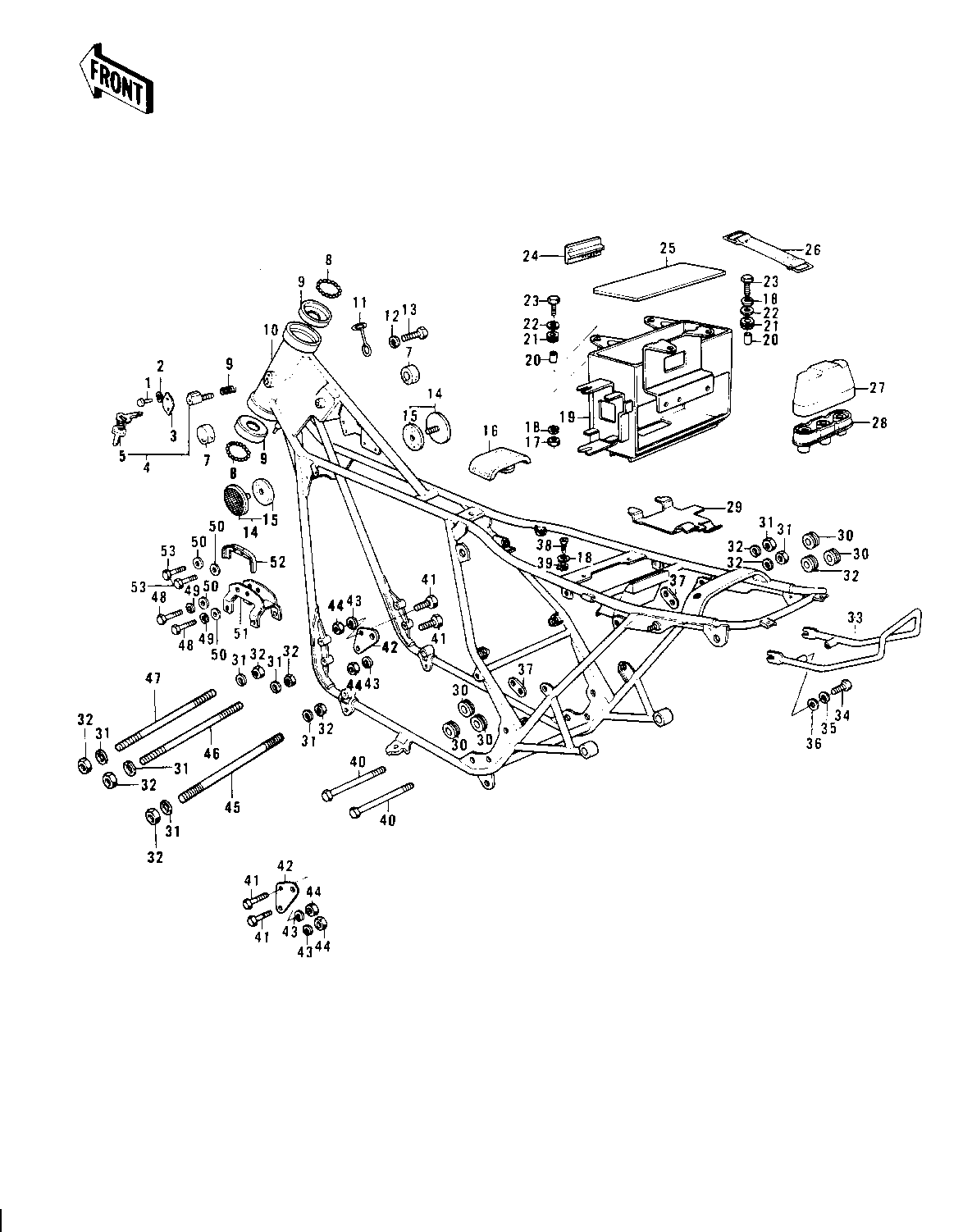

1977 KH400-A4 - FRAME/FRAME FITTINGS

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SCREW-TAPPING 1 92008-007
WASHER 2 92097-003
CAP,STEERING LOCK 3 11012-1134
LOCK ASSY,STEERING 4 27016-038
KEY SET,#901 5 27008-055-01
KEY SET,#910 5 27008-055-10
SPRING-STEERING LOCK 6 27032-001
DAMPER RUBBER-FL TANK 7 92075-101
BALL STEEL 1/4' 8 600A0800
RACE STRNG STEM BERNG 9 92048-006
FRAME 10 32002-133
CLAMP 11 92037-108
WASHER SPRING 6MM 12 461F0600
BOLT-UPSET,6X12 13 112G0612
REFLECTOR,REFLEX 14 28001-026
DAMPER RUBBER,REFLECT 15 92094-011
DAMPER RUBBER,FL TANK 16 92075-214
NUT 6MM 17 311B0600
WASHER SPRING 6MM 18 461F0600
CASE,BATTERY 19 32097-037
COLLAR,6.8X10X8.5 20 92027-129
DAMPER RUBBER 21 92075-076
WASHER 6.5X20X1.6T 22 92022-125
BOLT 6X22 23 112B0622
SEAT RECTIFIER RUBBER 24 32103-003
MAT BATTERY 25 32103-006
BAND,OIL TANK 26 92072-045 KH400-A3
BAND,OIL TANK 26 92072-045 KH400-A4/A5
COVER-SPARK PLUG 27 32132-003
HOLDER-SPARK PLUG COV 28 32132-002
BRACKET,FUSE CASE 29 32116-004
GROMMET 30 92071-056
NUT,10MM 31 314B1000
WASHER SPRING 10MM 32 461F1000
STAY,REAR FENDER 33 35032-028
BOLT,8X20 34 115G0820
WASHER SPRING 8MM 35 461F0800
WASHER PLAIN 8MM 36 411B0800
PLATE-ENGINE MOUNT 37 32030-023
SCREW PAN HEAD 6X14 38 220B0614
WASHER LOCK 6MM 39 464H0600
BOLT, FLANGED, 10X110 40 92001-1602
BOLT,10X45 41 92001-1182
BOLT,10X45 41 92001-1182
PLATE,ENGINE MOUNT,FR 42 32030-030
WASHER SPRING 8MM 43 461F0800
NUT,8MM 44 311B0800
BOLT,10X237 45 92003-182 KH400-A3/A4
BOLT,10X237 45 92003-182 KH400-A5
BOLT,10X252 46 92003-209 KH400-A3/A4
BOLT,10X252 46 92003-209 KH400-A5
BOLT,10X225 47 92003-181 KH400-A3/A4
BOLT,10X225 47 92003-181 KH400-A5
BOLT-UPSET 48 112G0630
WASHER SPRING 6MM 49 461F0600
WASHER PLAIN 6MM 50 411B0600
BRACKET,IGNITION COIL 51 32058-052
BRACKET,IGNITION COIL 52 32058-053
BOLT-UPSET,6X16 53 112G0616
